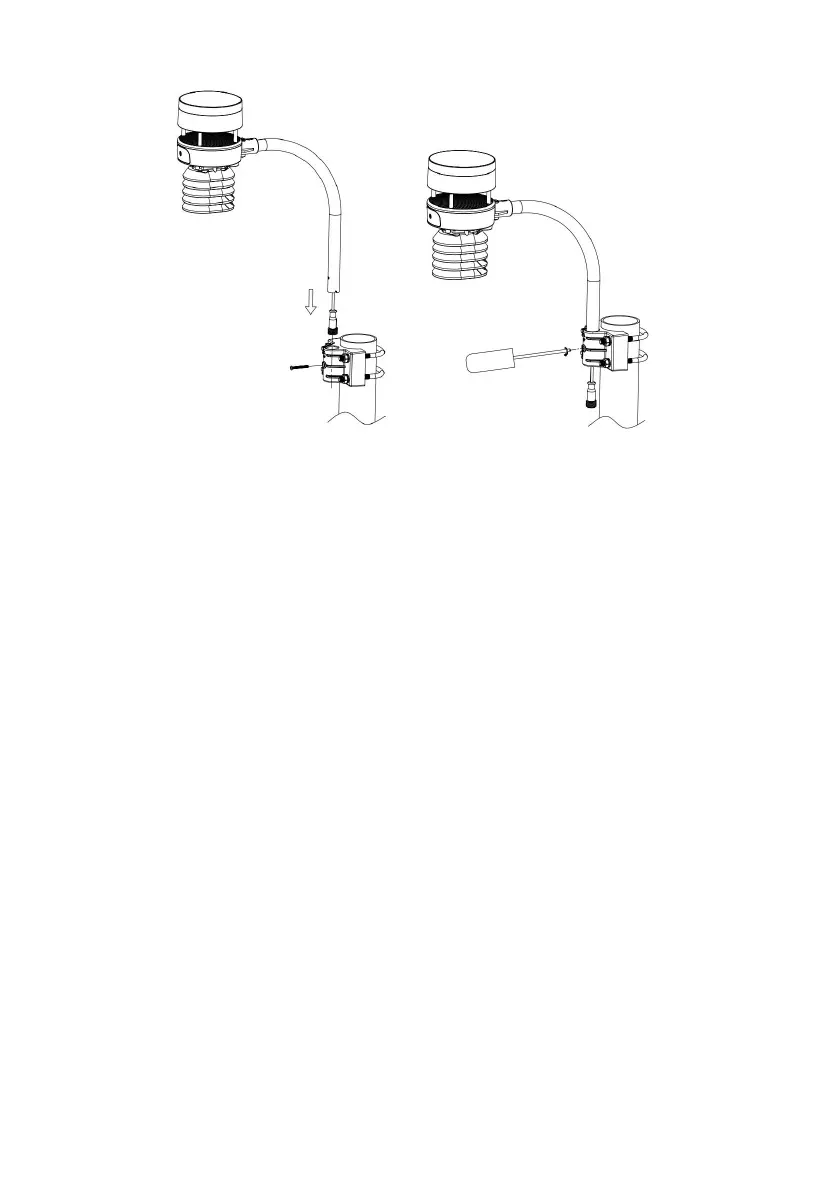

Figure 11: Sensor package mounting diagram 5-4
Make sure the mounting pole is vertical, or very close to it. Use a level as
needed.
5. During wintertime, to prevent ice formed on the reflection surface, the
optional extension cord be connected to a 12V/1.0A outdoor type
power adapter as Figure 12-1 showed below. The outdoor rated
adapter and extended power cable can be purchased separately:
