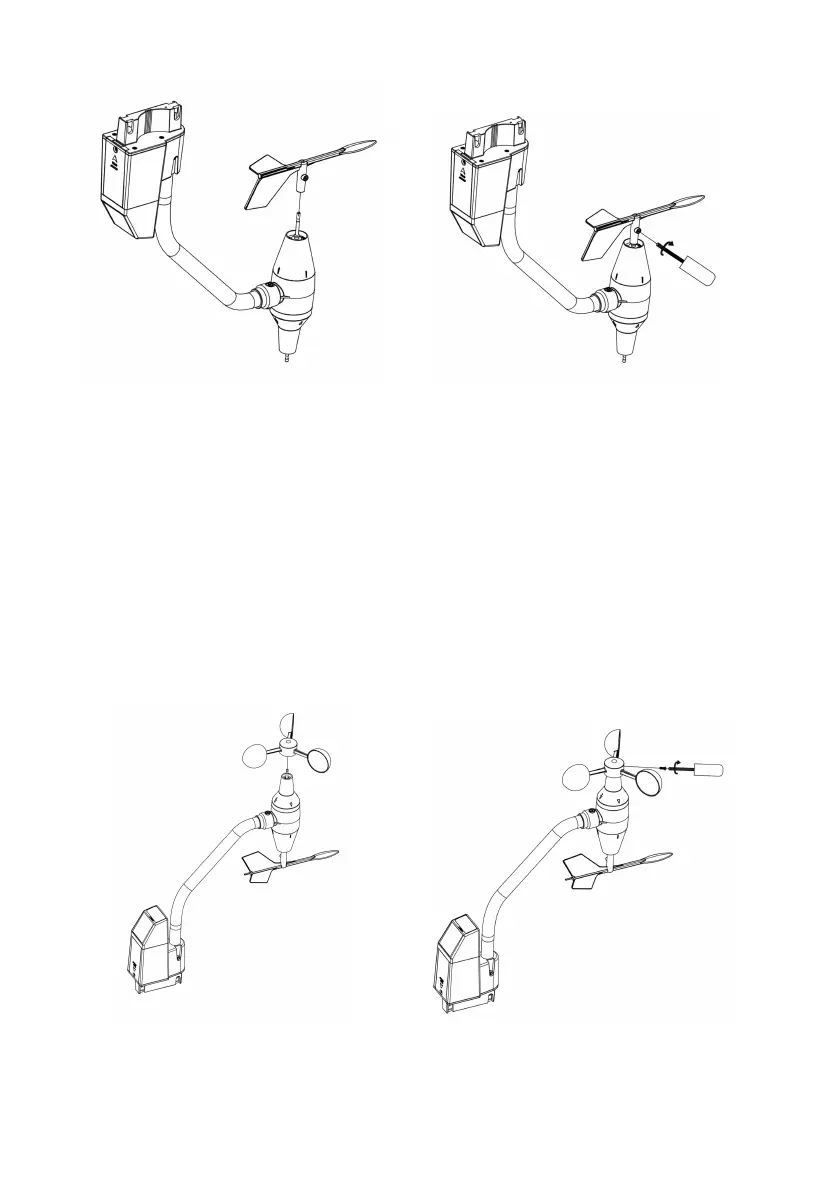

Figure 9: Wind vane installation diagram
4.2.3 Install wind speed cups
Push the wind speed cup assembly onto the shaft on the opposite side of the
wind vane, as shown in Figure 10 on the top side. Tighten the set screw,
with a Philips screwdriver (size PH0), as shown on the right side. Make sure
the cup assembly can rotate freely. There should be no noticeable friction
when it is turning.
Figure 10: Wind speed cup installation diagram
