Hook the filter hook on the edge of the rain collector to install the filter(as
the figure below shows on the left).
Take out the filter hook from the edge to uninstall the filter(as the figure
below shows on the right).

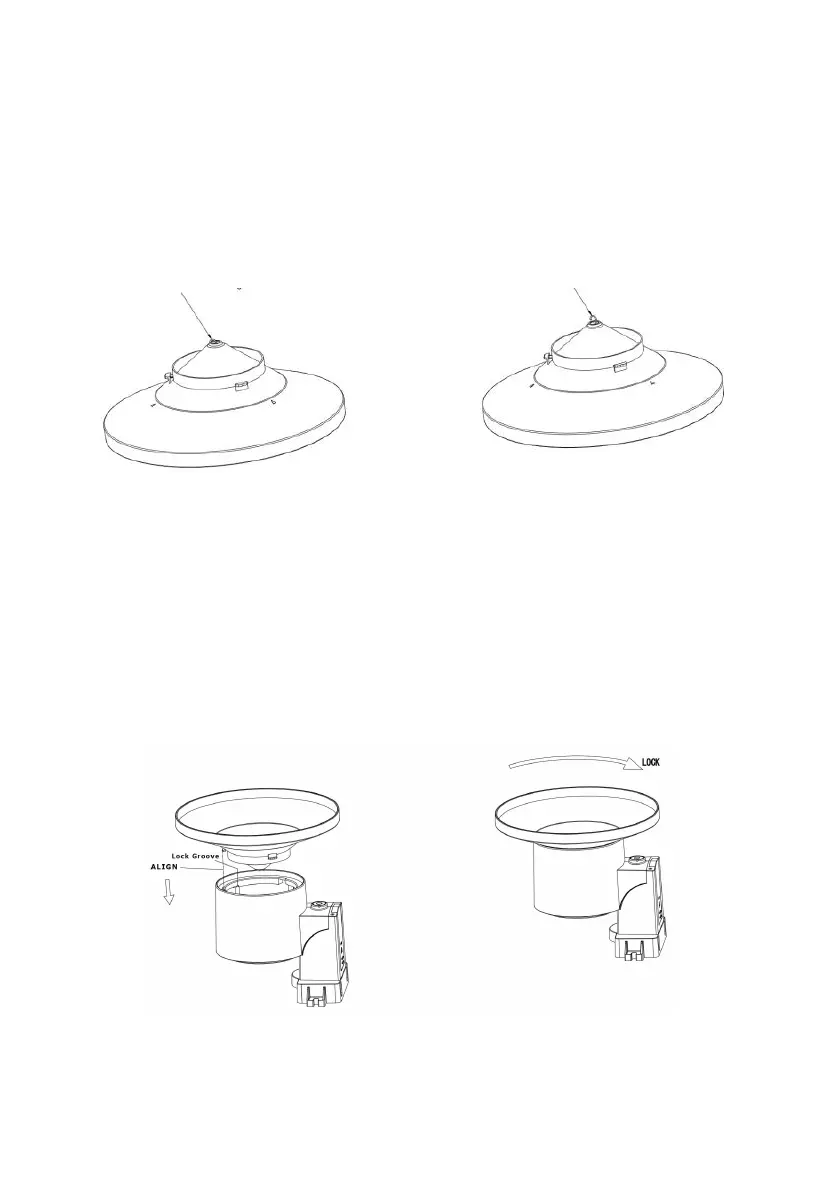

Figure: Rain gauge filter in/un-installation diagram
4.3.2 Install Rain Collector Top
Align the rain collector top with the rain bucket, pay attention to the lock
groove position as shown on the left side in Figure 14. Next, lock the top
clockwise to the lock groove position, as shown on the right side, until the
top cannot be removed from the bucket.
Figure 14: Rain collector top installation diagram
Take out the filter hook from
the edge to uninstall
Hook the filter hook on the edge
to install
