Hardware Installation
2.6.9 Wake-On-LAN Connector

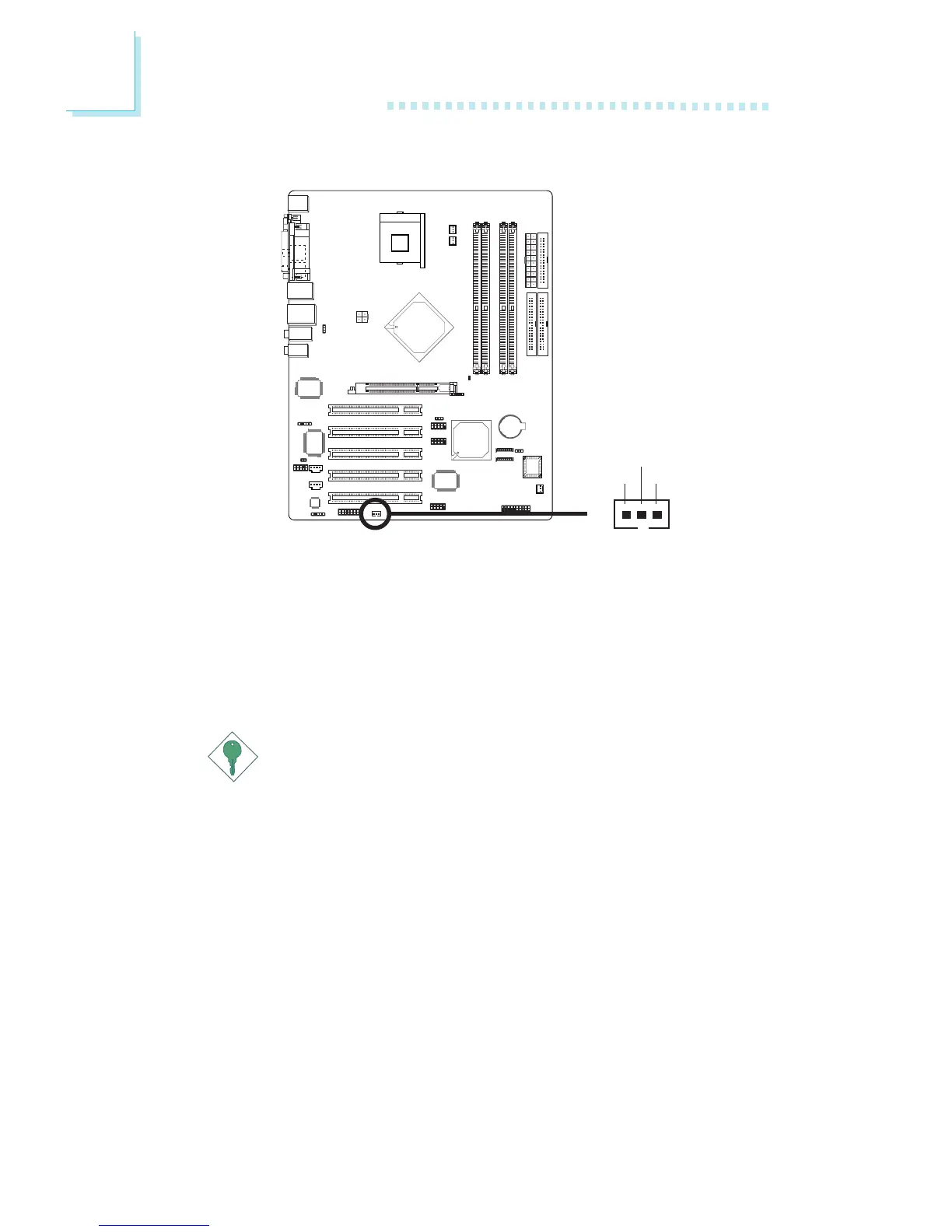

Your LAN card package should include a cable. Connect one end
of the cable to the wakeup header on the card and the other
end to location J8 on the system board. The network will detect
Magic Packet and assert a wakeup signal to power-up the system.
Refer to the add-in card’s manual for details. Note: Your LAN card
must support the remote wake up function.
Important:
The 5VSB power source of your power supply must support
≥
720mA.
BIOS Setting
To use the Wake-On-LAN function, you must enable the
“Resume On LAN” in the Power Management Setup of the
BIOS.
X
1
3
WOL
Ground
+5VSB
