Ecumaster PMU-16 - Analog Sensor

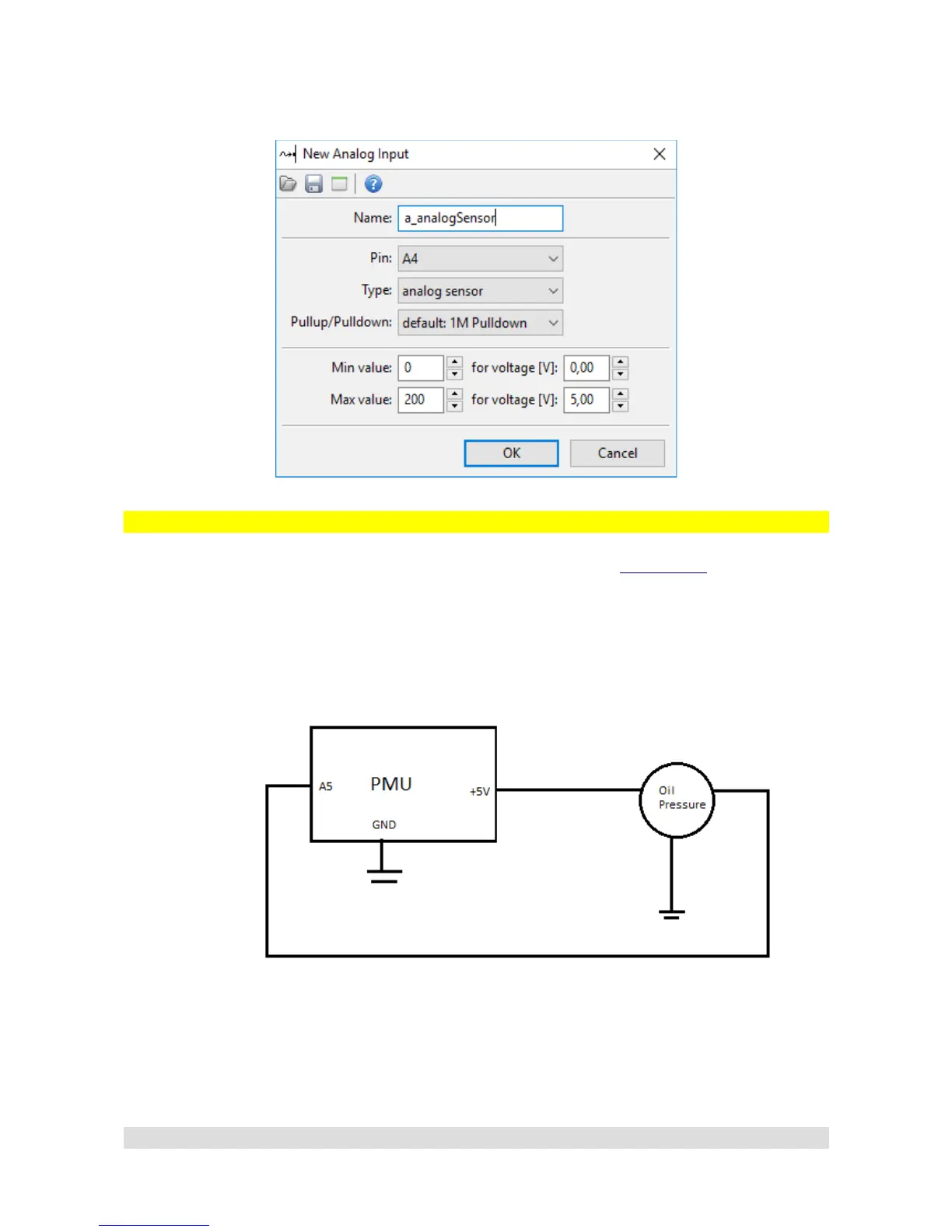

• PMU Client configuration:
Analog Sensor
To connect analog Sensor, +5V and GND Pins must be used (See PMU Pinout section). Output
from Analog Sensor should be connected as a regular Analog Input to PMU.
Analog Sensor diagram:
Page 36
Rotary Switch configuration
Analog Sensor diagram
