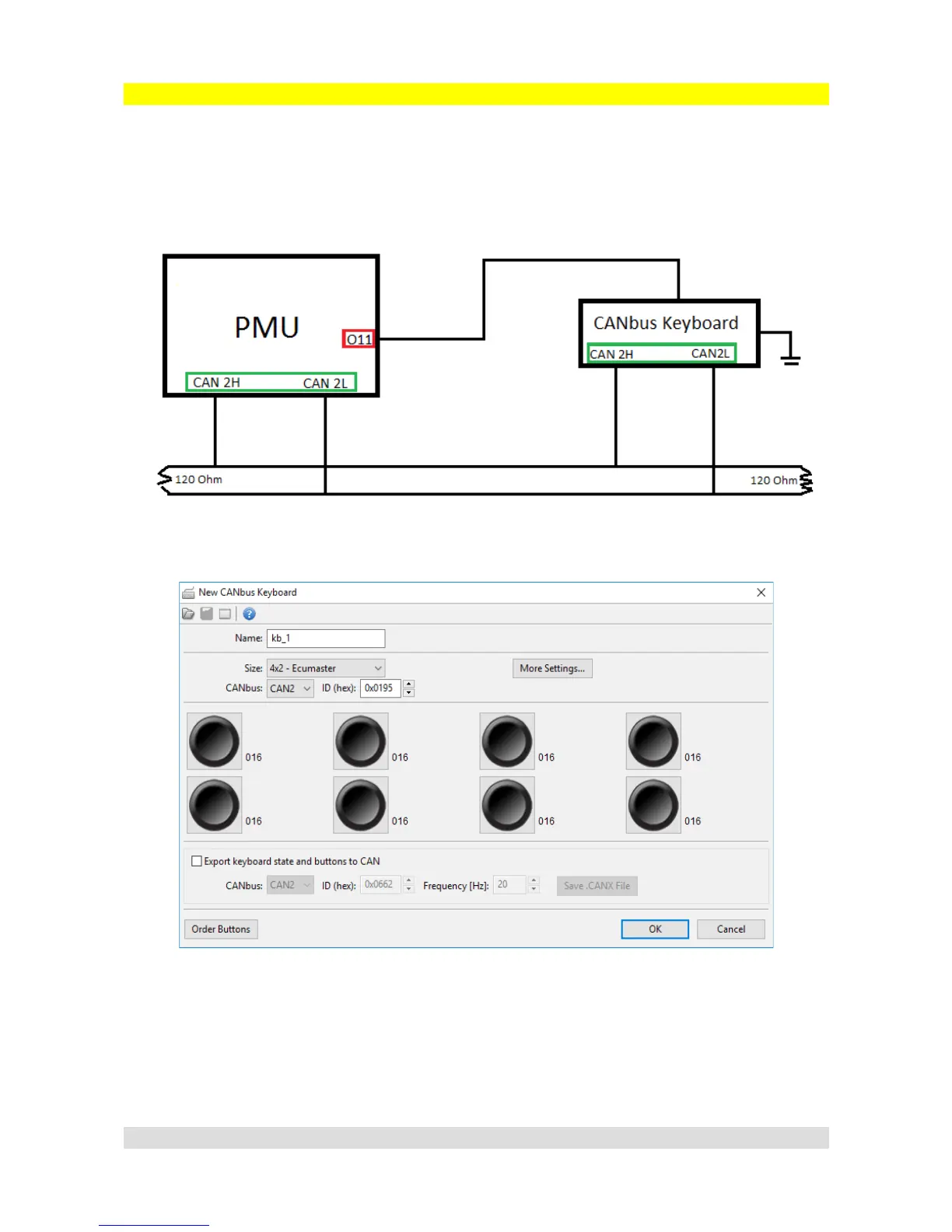

CANbus Keyboard
CANbus Keyboard can be connected to any CANbus. If CAN2 was chosen, user has the ability to
change CAN2 speed for CANbus Keyboards such as Life Racing (Tree View → CANbus Setup).
CAN connection must be terminated at both ends. It is possible to use CAN2 terminator from PMU
(Tree View → CANbus Setup). To provide power to CANbus Keyboard one of Output Pins can be
used. Up to two CANbus Keyboards can be connected.
PMU Client provides special module for CANbus Keyboard configuration and setup (Project Tree
→ CANbus Keyboard). Refer to your CANbus Keyboard manufacturers documentation to find out
the ID under which CANbus Keyboard works at.
