Ecumaster PMU-16 - Simple Power Output Setup

Simple Power Output Setup
This is a quick example of two popular setups, their wiring diagrams and PMU Client configuration.
Please note that output pins shown here are just an example.
• Power Output that is turned on as soon as PMU is turned on:
PMU Client Configuration:
Page 38

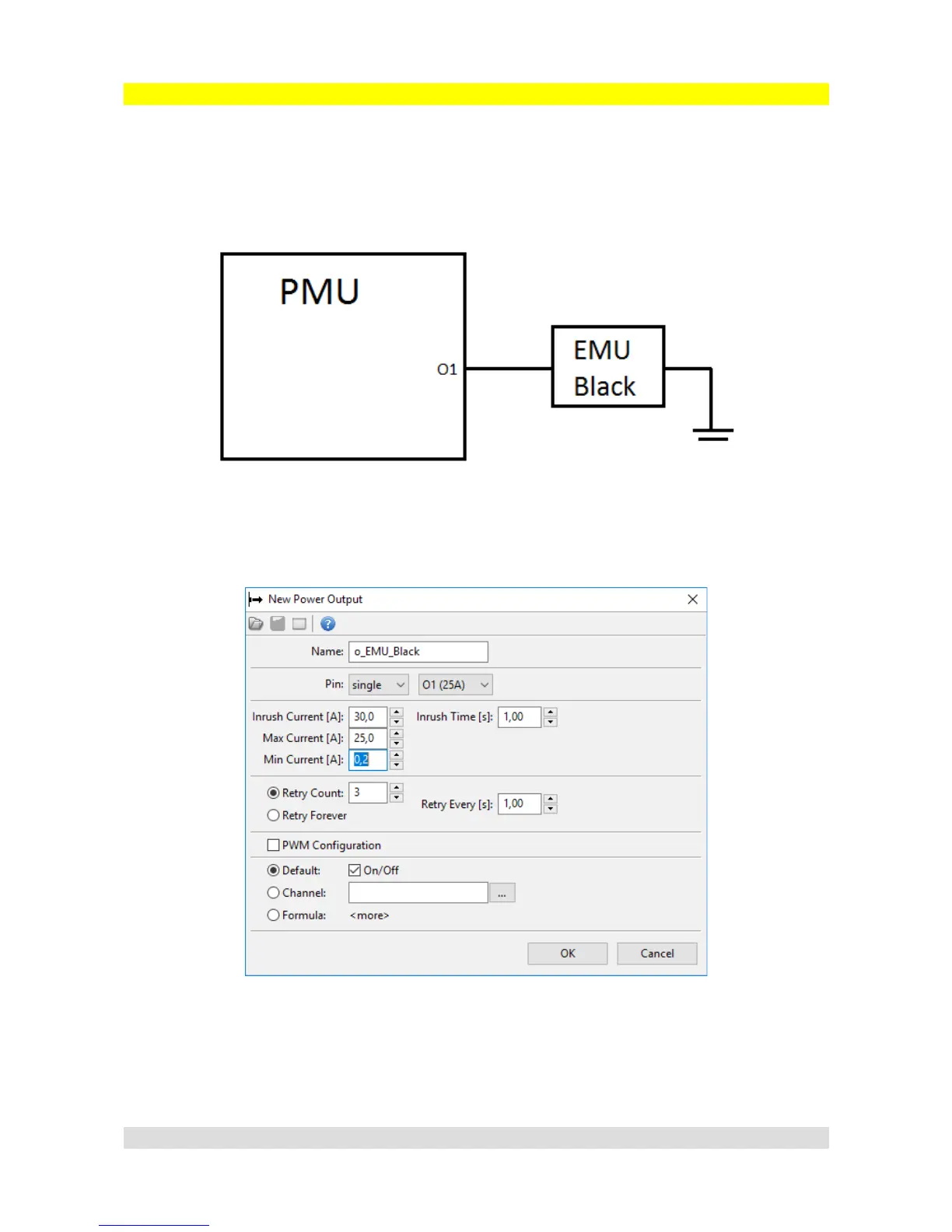

Power Output Diagram example 1
Power Output configuration example 1
