Duty Cycle can be either set to constant value, or controlled by a Channel.

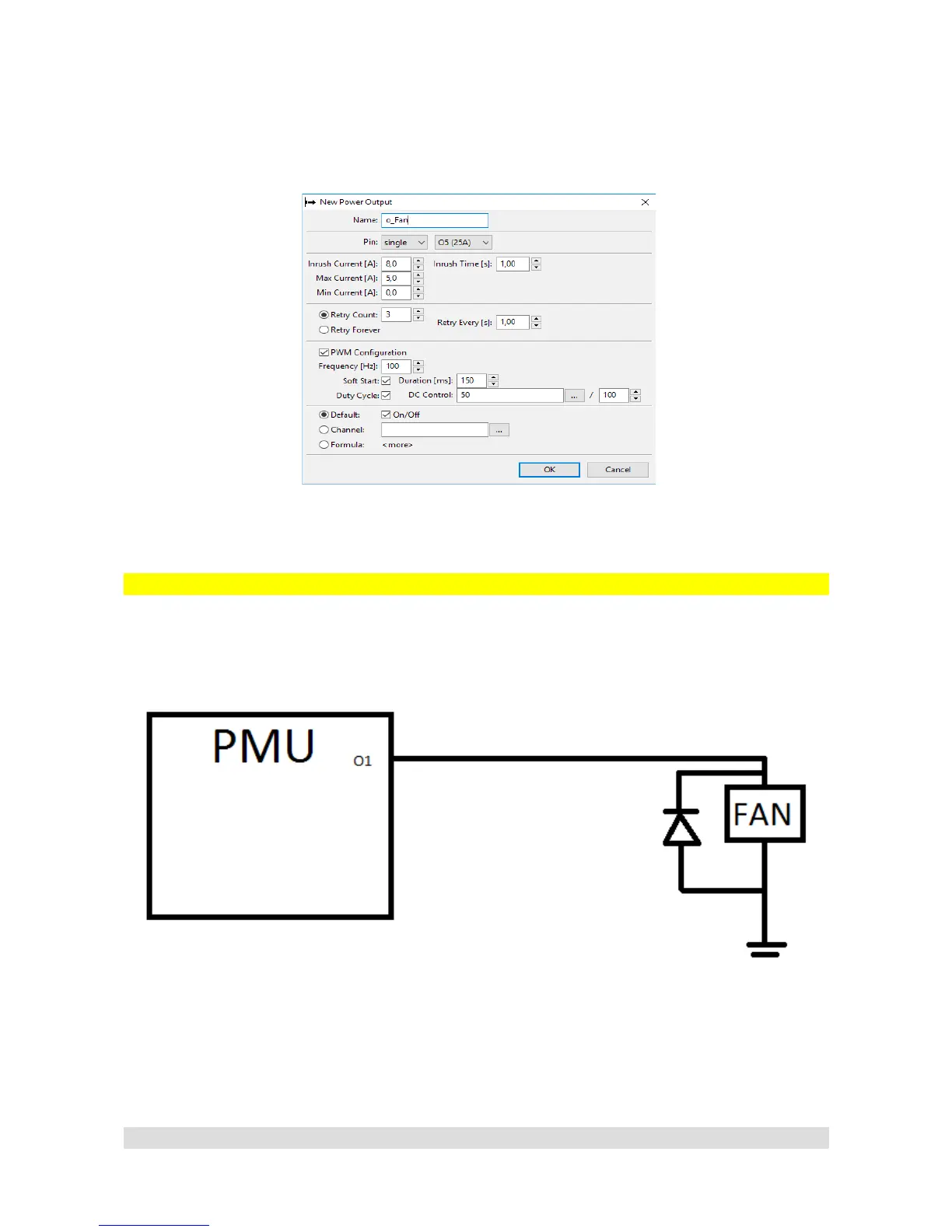

PMU Client Configuration Example:
Using flyback diode
PWM does introduce a bit of heat depending on the Device powered, and PWM settings. If you are
experiencing Overheated status on any Pulse Width Modulated Power Output, a flyback diode can
be used to eliminate flyback therefore lowering the output transistors thermal load.
