Configuring the Switch
3-22
Field Attributes
• Port – The port number.
• Enabled – Enables LACP on the associated port.
• Key Value – Configures a port's LACP administration key.
The port administrative key must be set to the same value for ports that belong to
the same link aggregation group (LAG). If this administrative key is not set when
an LAG is formed (i.e., it has the null value of 0), this key will automatically be set
to the same value as that used by the LAG.
Web – Click TRUNKS, LACP Setup. Enable LACP on each port to be configured as
a member of an LAG. Leave the administrative key set to a null value to allow the
switch to automatically configure this attribute, or set it a specific value to maintain
more precise control over the ports which will be connected to another device. Click
APPLY.

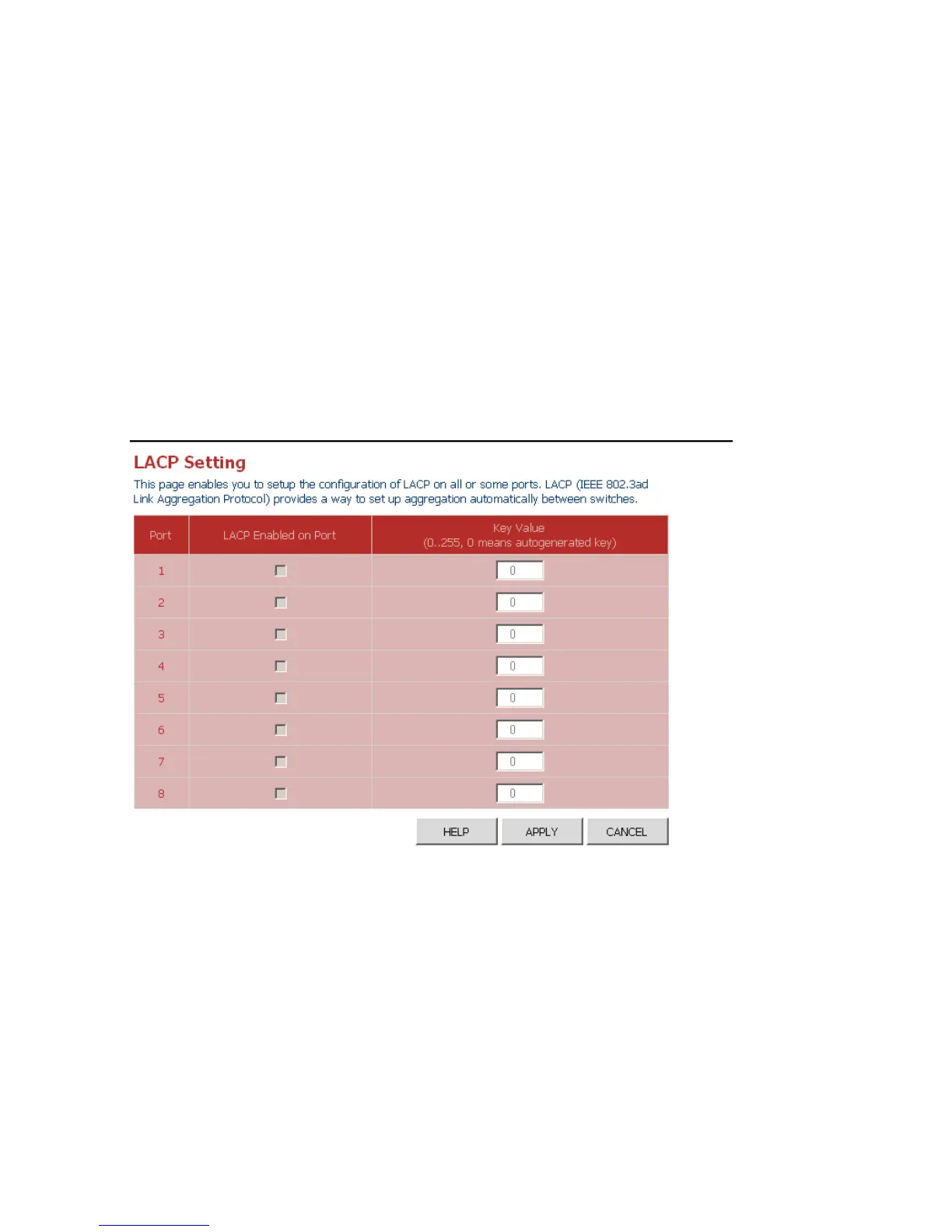

Figure 3-19 LACP Port Configuration
