Technical Support: +1 (724) 628 3050
SPECIFICATIONS
MODEL HEATING
VALUES
(BTU/HR)
ORIFICE SIZE NATURAL GAS
MANIFOLD
PRESSURE
(INCH WC)
ORIFICE SIZE LPG
MANIFOLD
PRESSURE
(INCH WC)
NATURAL GAS LPG
INCHES MM INCHES MM
1830 65,000 0.1405 3.5687 4.5 0.0935 2.3749 10.0
2440 80,000 0.1540 3.9116 4.5 0.1015 2.5781 10.0
3240 125,000 0.1910 4.8514 4.5 0.1200 3.0480 10.0
2460 150,000 0.2090 5.3086 4.5 0.1360 3.4544 10.0
3260(S) 150,000 0.2090 5.3086 4.5 0.1360 3.4544 10.0
3860 150,000 0.2090 5.3086 4.5 0.1360 3.4544 10.0
4460(S) 185,000 0.2323 5.9004 4.5 0.1540 3.9116 10.0
3270 185,000 0.2323 5.9004 4.5 0.1540 3.9116 10.0
3870 185,000 0.2323 5.9004 4.5 0.1540 3.9116 10.0
MODEL AIR SHUTTER POSITION AIR SHUTTER POSITION
NATURAL GAS LPG
TYPE 1 TYPE 2 TYPE 1 TYPE 2
1830 1 2 1 3
2440 1.5 2 1 3
3240 1.5 2 1 3
2460 1.5 2 1 3
3260(S) 1.5 2 1 3
3860 1.5 2 1 3
4460(S) 1.5 2 1 3
3270 1.5 2 1 3
3870 1.5 2 1 3

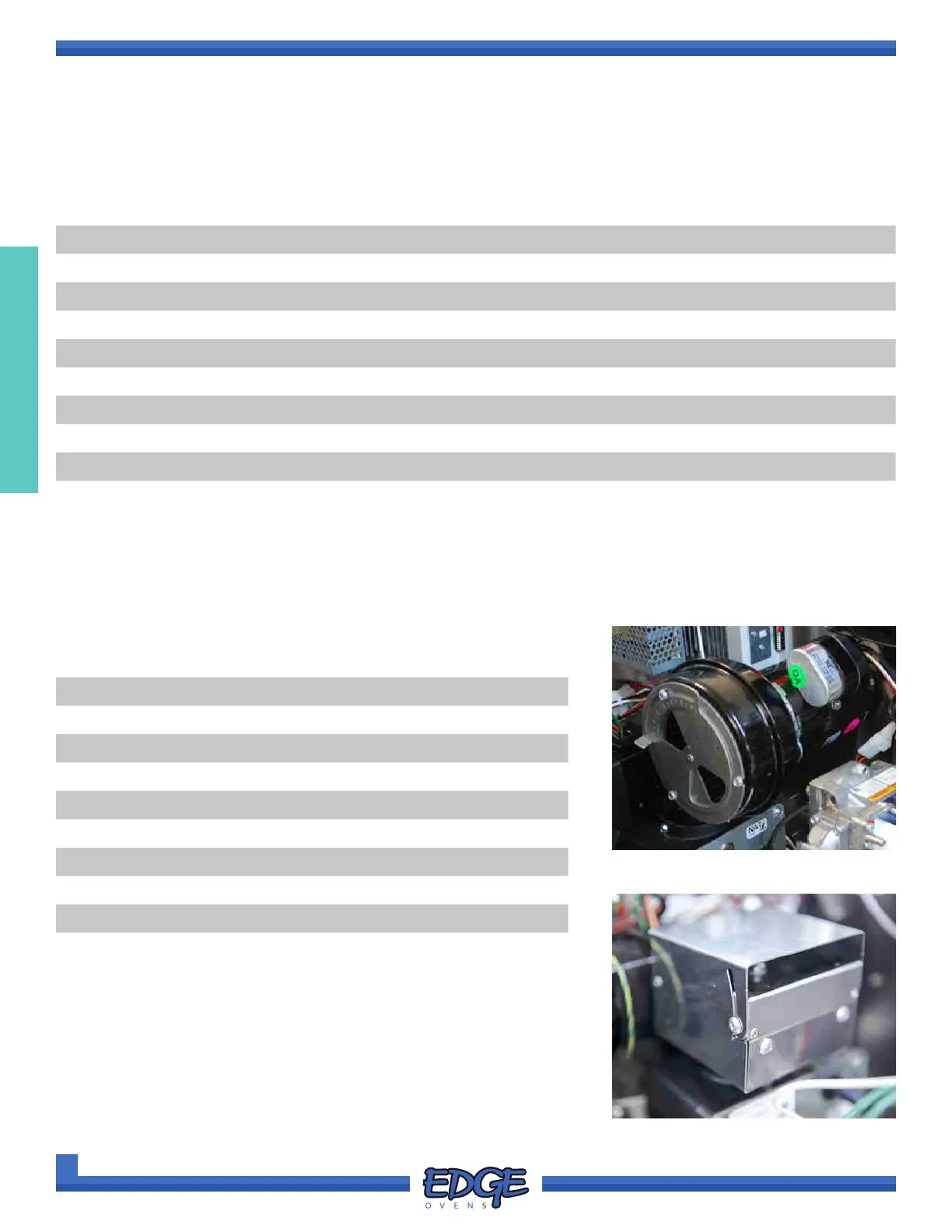

FIGURE 1-5 - TYPE 2
FIGURE 1-4 - TYPE 1
BURNER BLOWER AIR SHUTTER SETTING
US DOMESTIC (120V/60HZ)
OVEN GAS SPECIFICATIONS
