INSTALLATION
OVEN ASSEMBLY
9. Begin lowering the oven steadily and equally until all castors are
seated on the oor and the weight of the ovens has been released
from the lifting jacks. (Figure 2-20)

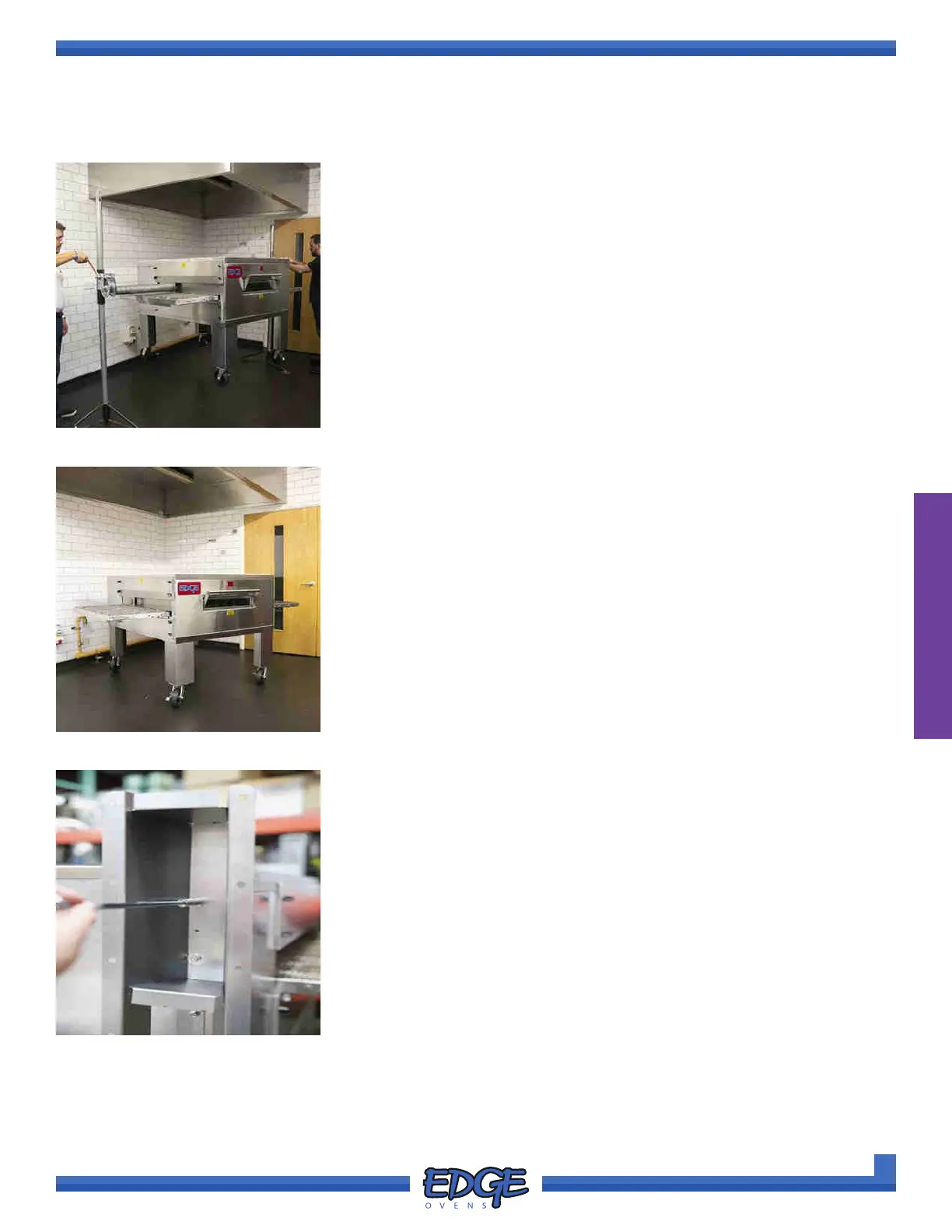

FIGURE 2-20
FIGURE 2-22
11. If your oven was spun from the original delivery cart, remove and
discard the oven support brackets from the rear of the oven using a
3/8” socket, ratchet and long extension (Figure 2-22). Each bracket
requires the removal of two (2) fastening 1/4” bolts, two (2) split locking
washers and two (2) at washers. RETAIN ALL REMOVED BOLTS
AND WASHERS FOR LATER USE.
SPINNING OVEN FROM DELIVERY SKID OR EDGE DELIVERY CART (CONT)
FIGURE 2-21
10. Once the oven has been lowered and weight has been released from
the lifting jacks, remove the lifting jacks and pipe from the oven and
relocate away from the immediate work area. (Figure 2-21)
