1-8
1.3.3 Tow Cable
The 3200-XS does not come standard with a specific type of cable, but requires one to operate, and must
be specified at the time of purchase. EdgeTech has multiple lengths and cable material types available.
The maximum cable length available for the 3200-XS system is 600 Meters. Contact E
DGETECH CUSTOMER
SERVICE for more information.
A popular option is the 75-Meter Kevlar Reinforced Cable that includes three twisted shielded wire pairs.
This cable, shown in F
IGURE 1-4, is available separately and used to connect to and tow the SB-424, SB-
216S, and SB-512i Tow Vehicles. However, because of the weight and drag exhibited by the larger SB-512i
Tow Vehicle, a separate steel cable is recommended for towing this tow vehicle.

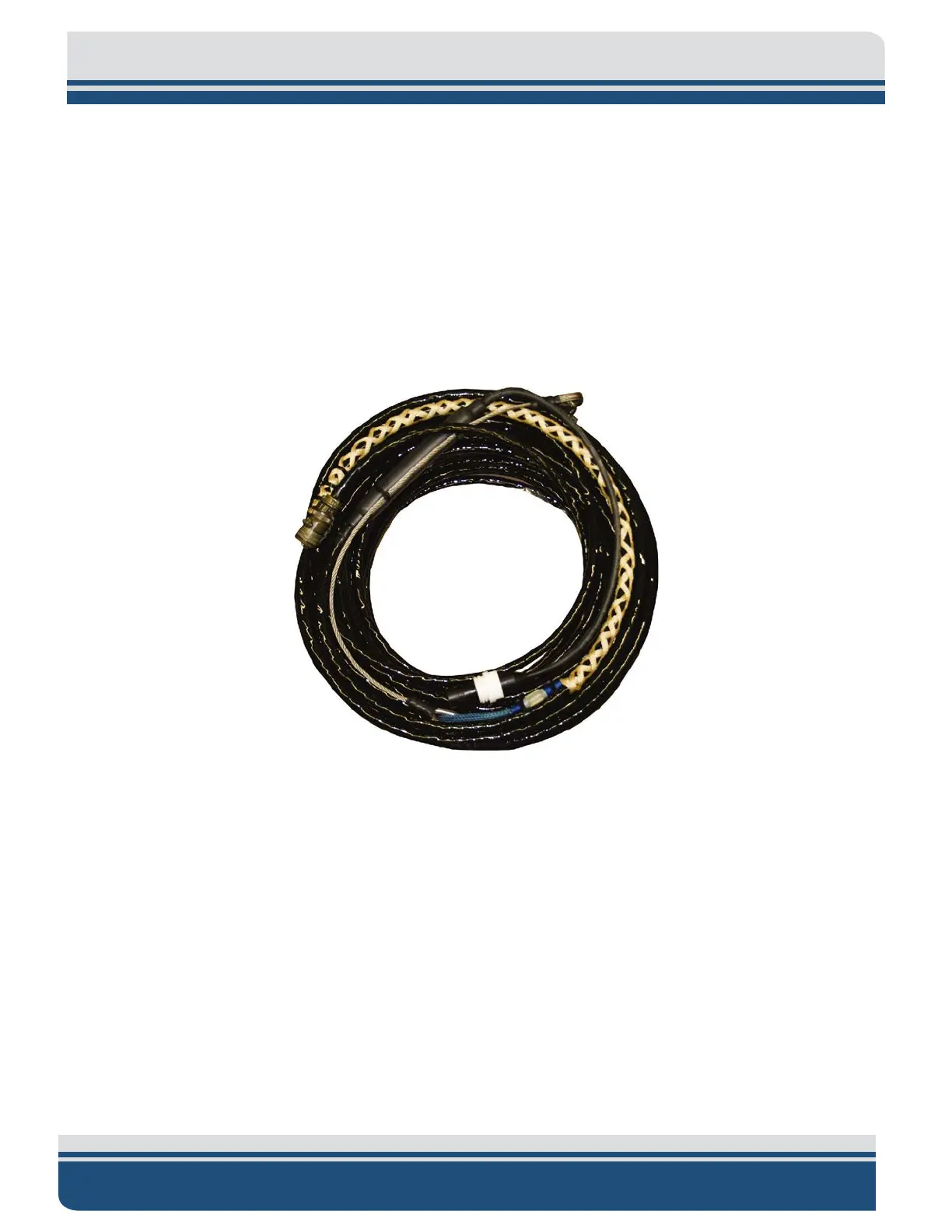

Figure 1-4: 75-Meter Kevlar Reinforced Tow Cable
The steel cable can be attached to the tow cable. In addition, to increase the life of the tow cable, which
has a tensile strength of 650 pounds, a separate steel cable can also be used with the SB-424 and SB-216S
Tow Vehicles.
All tow cable options include a cable grip for attaching to the tow bridle of the tow vehicle and are shipped
in a wooden crate with the tow vehicle.
