4-5

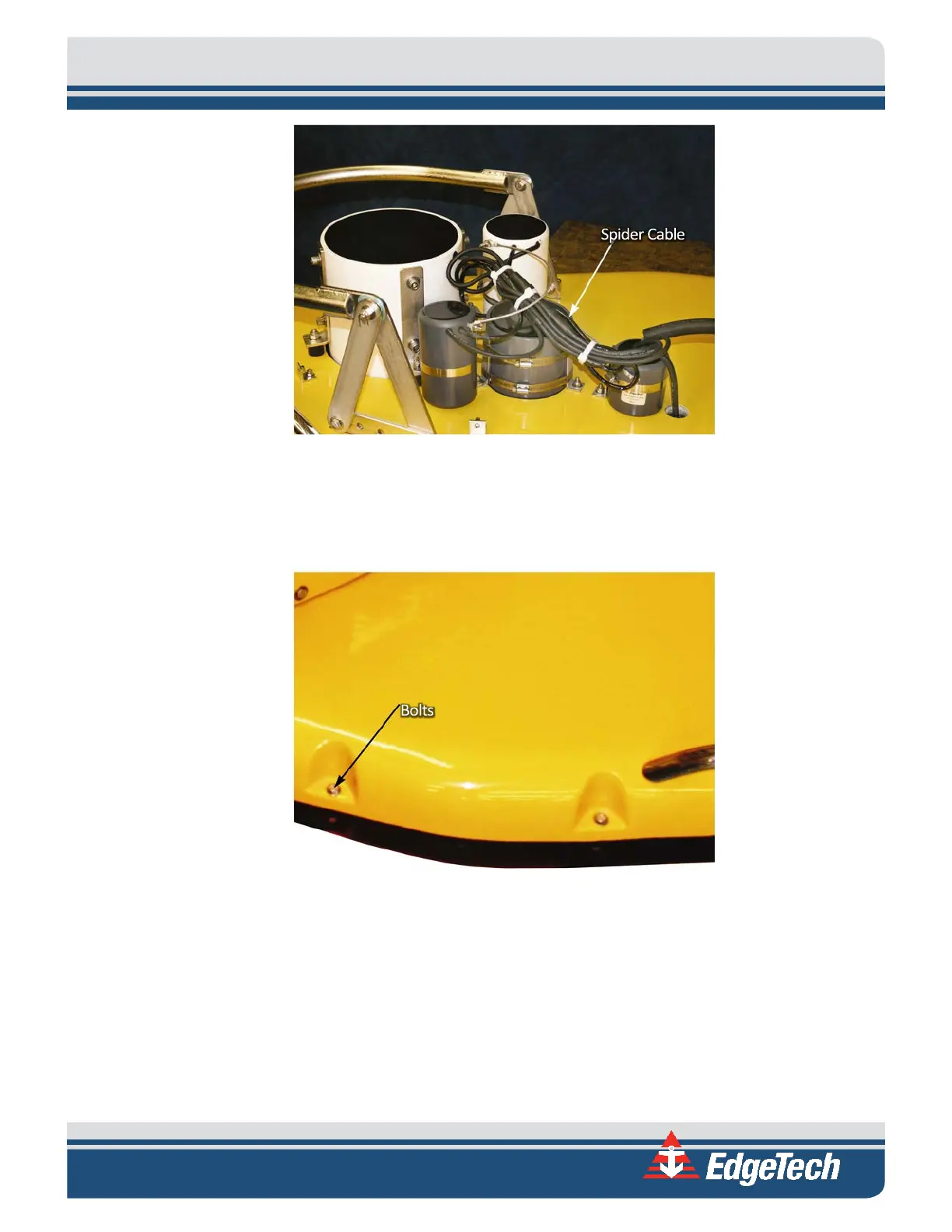

Figure 4-5: Teardrop Cover Removed
6. Using the socket wrench with the 7/16th-inch socket, remove all of the bolts and nuts securing
the front half of the top cover of the tow vehicle body as shown in F
IGURE 4-6. Continue with the
rear half using a 1/2 –inch socket.
Figure 4-6: Removing 7/16 and ½ Inch Bolts and Nuts
7. Lift the top cover off, turn it over, and disconnect the spider cable from the hydrophones and the
preamp components.
4.2.2 Reassembling a Tow Vehicle
To reassemble the tow vehicle, reverse the disassembly procedure described above.
