Edgetech 3200-XS - Connector Pinouts; Figure 5-1: SEA CABLE Connector-Female Face View; Table 5-2: SEA CABLE Connector Pinouts

5.0: TROUBLESHOOTING 5-4
3200-XS SUB-BOTTOM SYSTEM 0004840_REV_E
5.2 Connector Pinouts
Pinout information is provided for the SEA CABLE connector on the back of the Deck Unit in FIGURE 5-1
and T
ABLE 5-2, and the tow vehicle/ tow cable connector in ERROR! REFERENCE SOURCE NOT FOUND. and TABLE
5-3.
PIN FUNCTION
A Transmitter output shield
B +12 VDC
C Sea ground
D NC
E Transmitter out 1
F NC
H Transmitter out 2
J Preamplifier output
K Preamplifier Common
L NC
M Preamplifier Common
Table 5-2: SEA CABLE Connector Pinouts

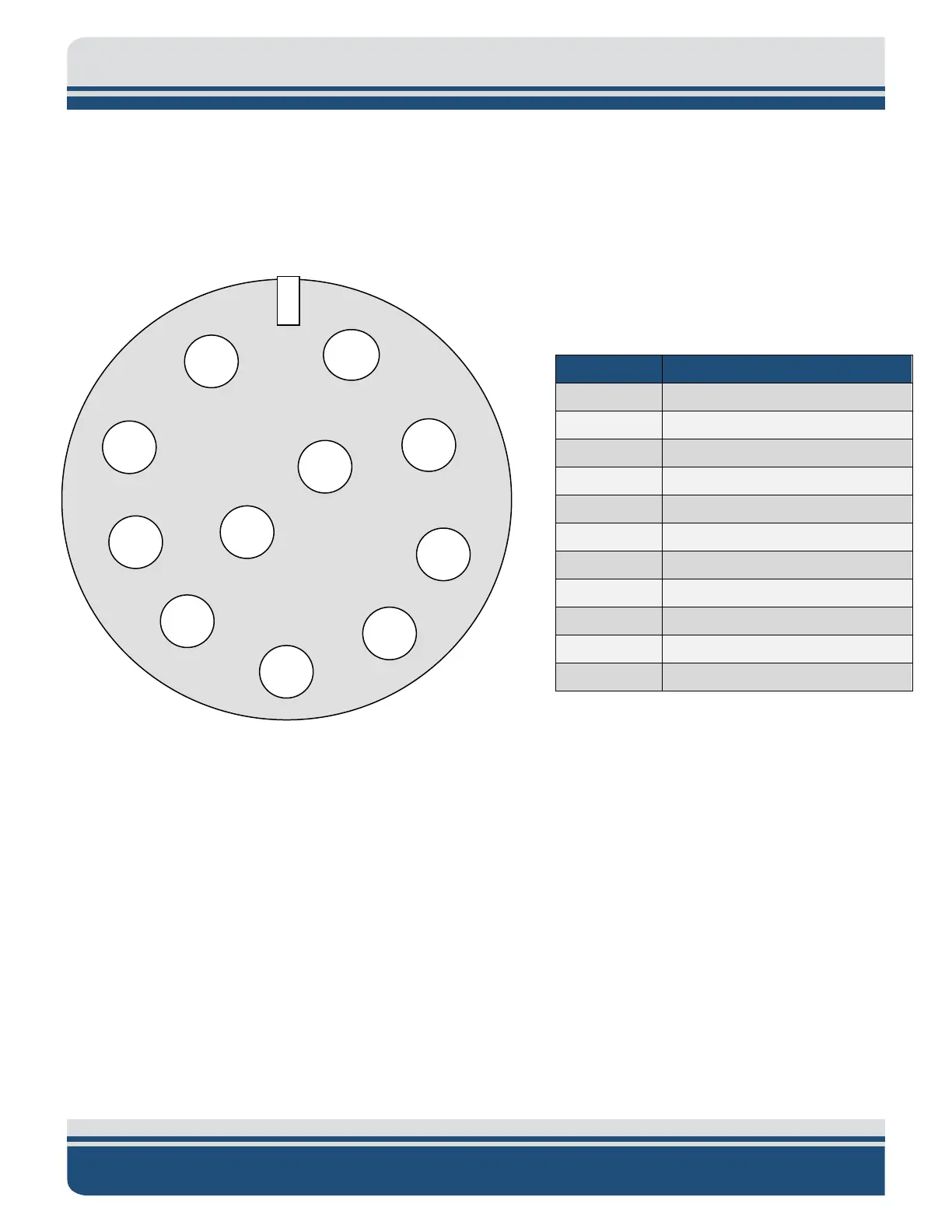

Figure 5-1: SEA CABLE Connector—Female Face View
K
J
H
F
E
D
C
B
A
M
L
