Edgetech 3200-XS - Figure 5-2: Male Marshal Connector - 86-5 MC (Tow Vehicle to Tow Cable Connection); Figure 5-3: Female Marshal Connector - 86-5 FC (Tow Cable to Tow Vehicle Connection); Table 5-3: Tow Cable Connections; Table 5-4: SEA CABLE Female Connector

5-5
PIN
FUNCTION
1
AMPLIFIER OUTPUT 1
2
AMPLIFIER OUTPUT 2
3
PREAMPLIFER COMMON
4
PRE-AMPLIFIER SIGNAL
5
RS-232 DATA
6
+ 12 VDC
7
SEA GROUND
8
RS-232 COMMON
Table 5-4: SEA CABLE Female Connector
PIN
FUNCTION
1
Transmitter out 1
2
Transmitter out 2
3
Preamplifier common
4
Preamplifier output
5
NC
6
+12 VDC
7
Sea ground
8
NC
Table 5-3: Tow Cable Connections
3
1
87
5 6
2
4
4 3
2 1
8 7
56

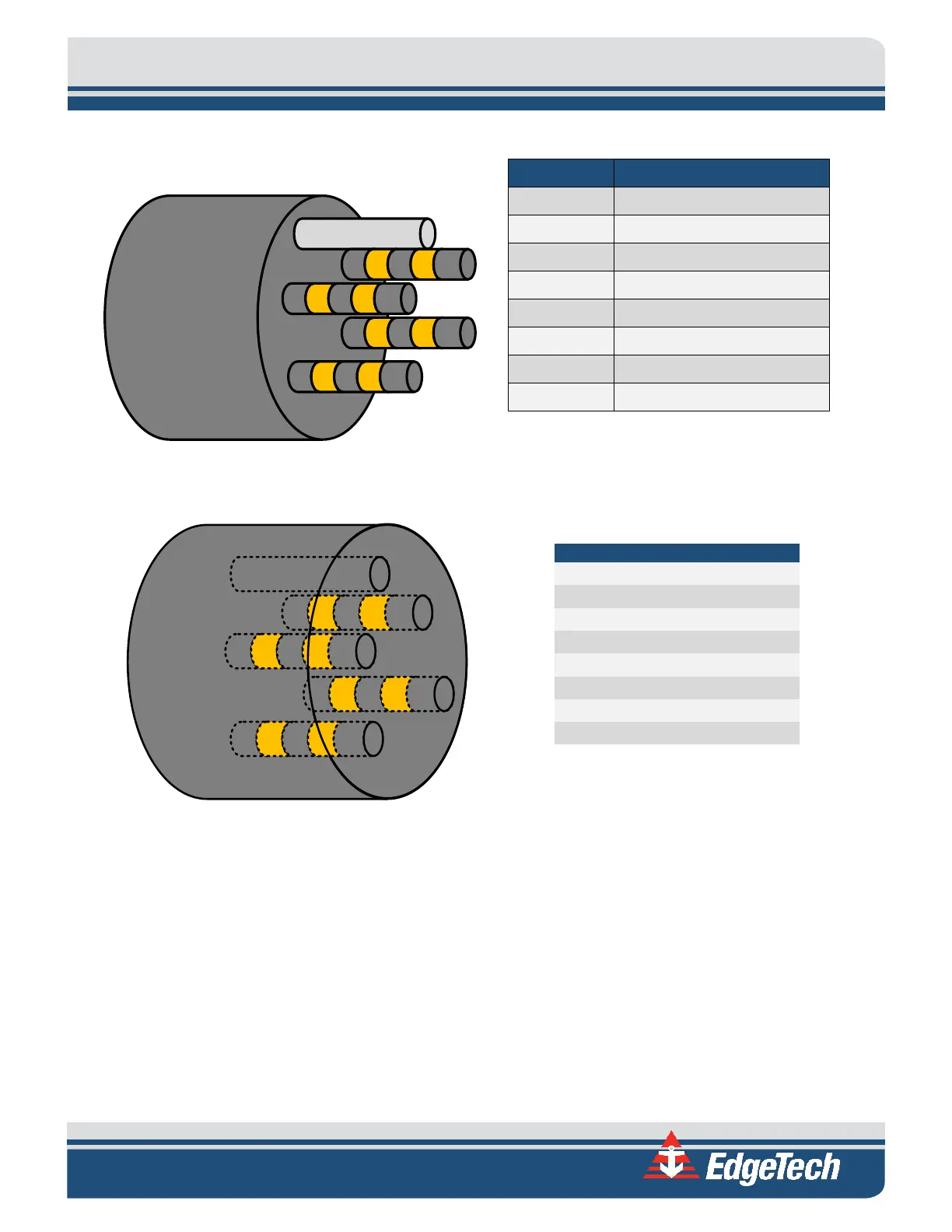

Figure 5-2: Male Marshal Connector – 86-5MC (Tow Vehicle to Tow Cable Connection)
Figure 5-3: Female Marshal Connector – 86-5FC (Tow Cable to Tow Vehicle Connection)
