4.0: MAINTENANCE 4-4
3200-XS SUB-BOTTOM SYSTEM 0004840_REV_E
3. Using the socket wrench with the 7/16-inch socket, remove all the bolts securing the teardrop
cover to the body of the tow vehicle as shown in F
IGURE 4-3.

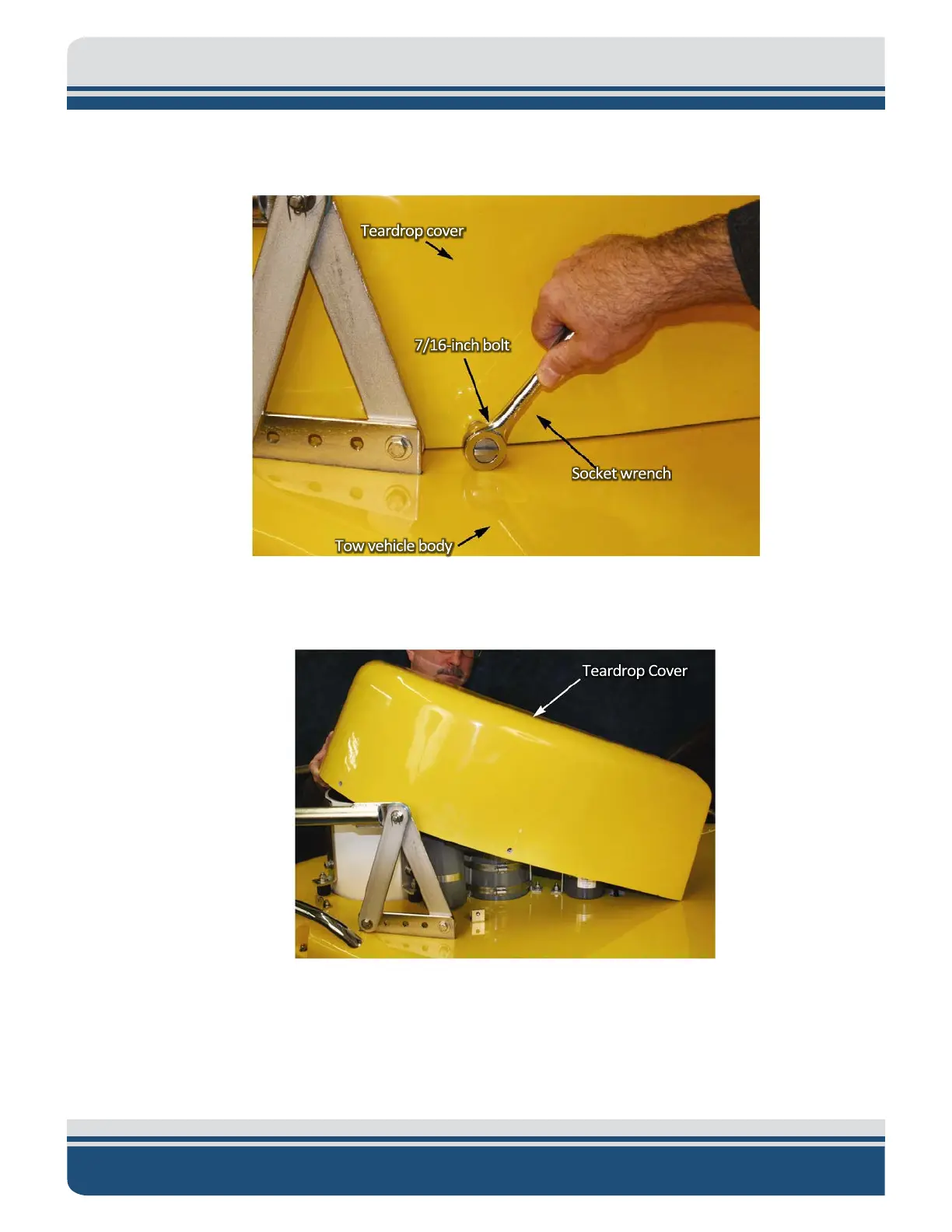

Figure 4-3: Removing the 7/16-Inch Bolts Securing the Teardrop Cover to the Tow Vehicle
4. Remove the teardrop cover as shown in F
IGURE 4-4.
Figure 4-4: Removing the Teardrop Cover
5. Disconnect the spider cable from the components as shown in F
IGURE 4-5.
