SEASTAR Hydraulics
HYDRAULIC POWER ASSIST
SEASTAR
You will need the following tools to complete your installation.
• 1/2", 5/8", and 3/4" open end wrench.
• Electrical cut and crimp pliers.
• All other tools noted with your Helm Pump and Steering Cylinder
Installation Instructions.
SeaStar P/A Compatibility Chart
Tools
The P/A and P/A PRO are designed for use in recreational marine
applications in conjunction with SeaStar and SeaStar PRO steering
systems. Optimal performance will be obtained when used with
SeaStar, or SeaStar PRO 1.4, 1.7 and 2.0 Helm pumps
.
Specifications
SeaStar nylon tube may ONLY be
used for the compensating line.
DO NOT use SeaStar Nylon tube
to plumb any other portion of the
steering system.
SeaStar P/A PRO is NOT to be used with SeaStar Hydraulic Steering,
performance will be compromised. ONLY use P/A PRO with a SeaStar
PRO Hydraulic steering system and ensure that SeaStar PRO (1500
psi) hose is used to plumb the entire system. (Nylon tubing may be
used for the compensating/return line ONLY.
Use ONLY Teleflex products with
the P/A unit as with ALL Teleflex
systems. Failure to do so may
void your warranty.
The SeaStar Power Assist will automatically recognize the voltage
level once it is connected to an on board power source (refer to
page 12 for electrical connections).
NOTICE
NOTICE
ONLY use SeaStar PRO Power
Assist with a SeaStar PRO helm.
DO NOT exceed peak operating
pressure. 1000psi – Standard,
1500psi – Pro.
WARNING
SEASTAR POWER ASSIST 12/24V (PA1200-2 AND PA1225-2)
• 12/24 Volts (automatically recognized)
• 1000psi MAX system peak pressure (500psi working load)
• PEAK Current Draw = 60 amps
• MAX Current Draw = 40 amps
• Typical current draw:
– Single outboard ~ 3 amps, average
– Twin rudder inboard ~ 8 amps, average
• Purple ignition wire MAX current draw = 1 amp
SEASTAR PRO POWER ASSIST, 12/24V (PA1315-2)
• 12/24 Volts (automatically recognized)
• 1500psi MAX System peak pressure (500psi working load)
• PEAK Current Draw = 60 amps
• MAX Current Draw = 40 amps
• Typical current draw:
– Single outboard ~ 3 amps, average
– Twin rudder inboard ~ 8 amps, average
• Purple ignition wire MAX current draw = 1 amp
Part No. Harness Voltage Relief Pressure
Length (auto recognized) Setting
PA1200-2 15' 12/24 Volt 1000psi
PA1225-2 25' 12/24 Volt 1000psi
PA1315-2 15' 12/24 Volt 1500psi
CAUTION

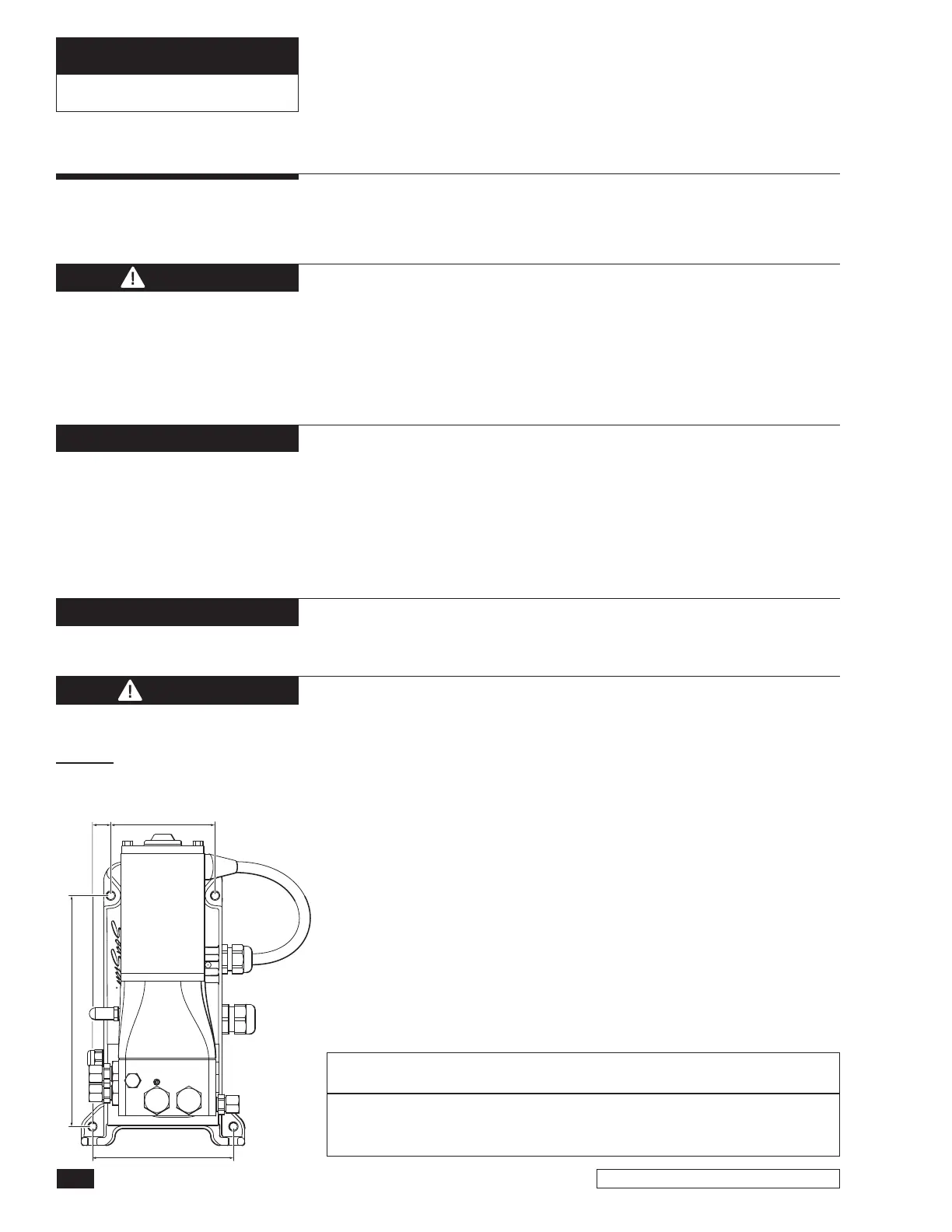

Figure 1.
