SEASTAR and BAYSTAR Hydraulic Steering Systems
1-5
OUTBOARD–FRONT MOUNT
REVISION DATE: ____________________
MAR. 10
TH
2006

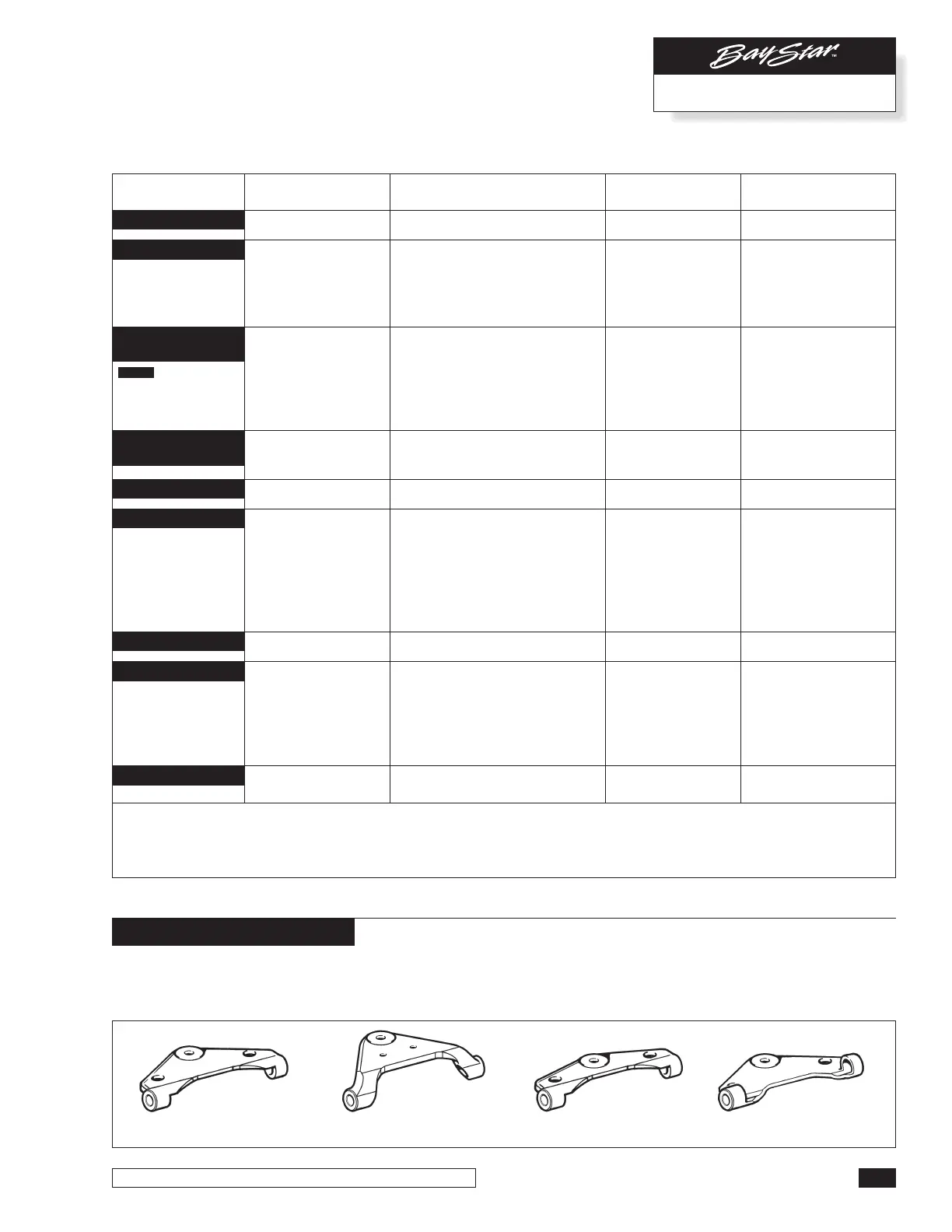

BayStar Outboard Compact
Application Guide
(BayStar Compact Cylinders HC4645/47/48/58)
NOTICE Johnson 115 HP
2-stroke engines, required the
pivot plate to be flipped. See
note #4 below
MFG YEAR MODEL CYLINDER NOTES
FORCE 1985–DATE 90–150 HP HC4645H
HONDA 1992–DATE 30–90 HP HC4645H
1998–DATE 115–130 HP HC4647H
2001–DATE 150 HP HC4645H
2003–DATE BF135 HP HC4645H
JOHNSON/ 1977–1989 65–150 HP HC4648H
EVINRUDE
1991–DATE 40–150 HP HC4645H
1997–DATE 115 HP FICHT HC4658H 4
1997–DATE 75–150 HP FICHT HC4645H
1998–DATE 40–140 HP 4-Stroke HC4658H 1, 4
MERCURY/ 1984–DATE 75–150 HP HC4645H
MARINER
NISSAN 1990–DATE 120–140 HP HC4645H
SUZUKI 1986–DATE 150 HP HC4645H
1996 ONLY 115–140 HP N/A
1987–2002 115–140 HP HC4645H 1
1990–2000 90–100 HP HC4645H
1998–DATE 40–70 4-Stroke HC4645H 1
2001–DATE 115–140 HP 4-Stroke HC4658H 1, 4
TOHATSU 1990–DATE 140–140 HP HC4645H
YAMAHA 1998–DATE 40–50 HP HC4645H 2
1998–DATE 60 HP HC4645H 3
1986–DATE 70–90 HP HC4645H 1
1997–DATE 80–150 HP 4-Stroke HC4645H
2000–DATE 25–60 HP 4-Stroke HC4648H 1
YANMAR 1990–DATE 27–36 HP HC4645H
1. Requires Spacer kit part # HO5090
2. Engine clamp brackets must be cut or ground, and the engine through bolted
onto the transom, or interference will occur, restricting engine trim and tilt.
3. Steering hook Yamaha Part # 63D-48511-00-4D must be installed
4. Cylinder HC4645 may be used in these applications. The pivot plate will need
to be flipped before installation. Instructions provided with Owner’s Manual.
HC4645H compact cylinder is included in the BayStar Steering kits.
If your engine requires the use of a cylinder other than HC4645H or
HC4658H then please refer to the figure below for additional
replacement pivot plate.
NOTICE
HA4640
Use with cylinder HC4645H
HA4641
Use with cylinder HC4647H
HA4643
Use with cylinder HC4658H
HA4642
Use with cylinder HC4648H
The above engine applications are current through the revision date shown. For up-to-date engine applications go to: www.seastarsteerng.com
