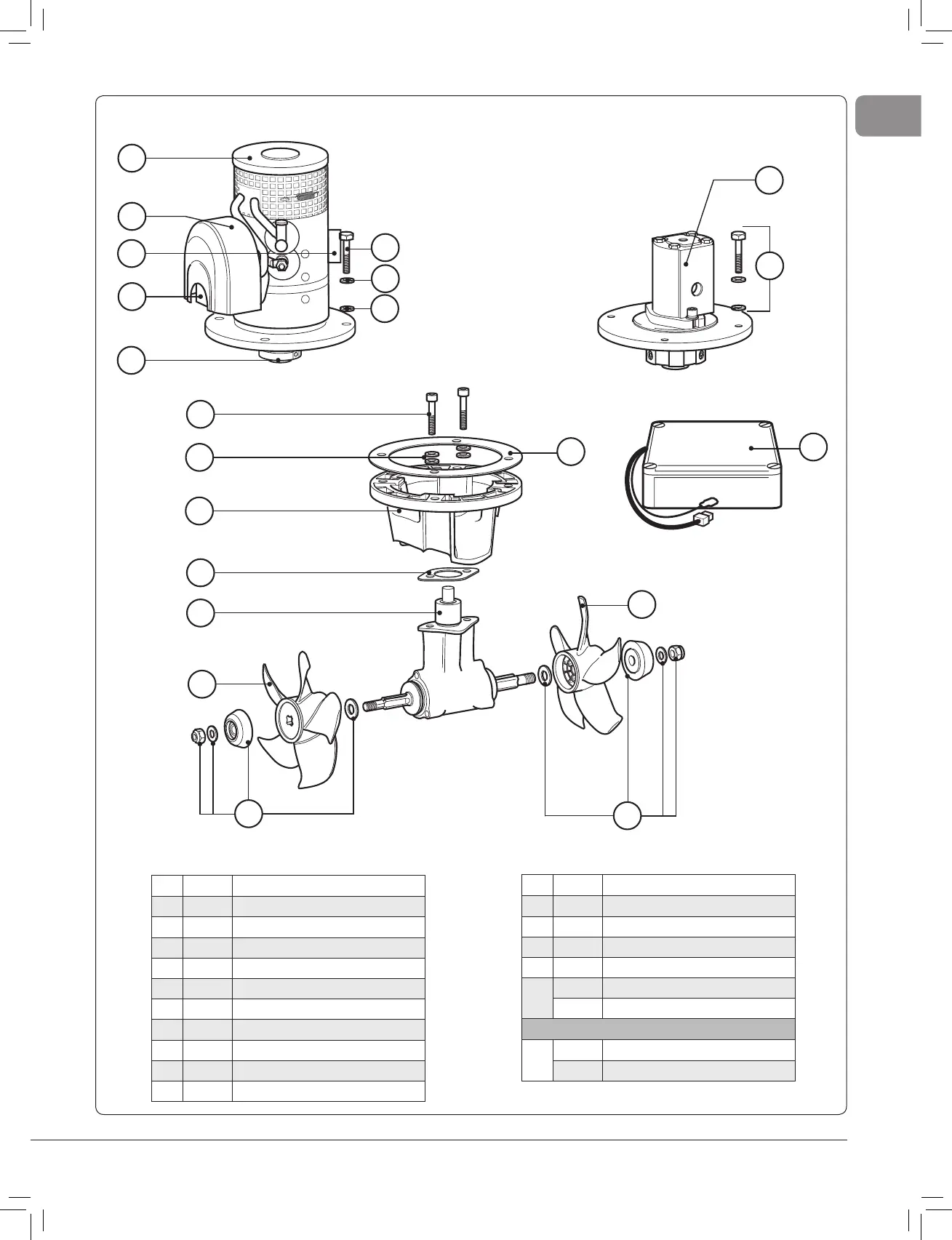

6.4 Model 250TT/H 8.0 kW 24 V
Item Part No. Description
1 585026 Motor Assembly 8.0 kW 24 V
585029 Motor Assembly 9.6 kW 48 V
2 553036 Cover
3 559003 Black Box
4 B11129 Solenoid
5 585014 Coupling
6 555025 Mounting Saddle
7 555035 Tunnel Gasket
8 585002 Hub
9 589551 Right Hand Propeller
Item Part No. Description
10 589552 Left Hand Propeller
11 589550 Anode Kit
12 555038 Plastic Washer
14 589554 Installation Fixings Kit
15
589029 Parallel Switch Box 12/24 V (24 V ONLY)
589030 Parallel Switch Box 24/48 V (48 V ONLY)
Hydraulic Only
13
585040 Hydraulic Motor Assy. 26 cc/rev
585041 Hydraulic Motor Assy. 16.8 cc/rev
