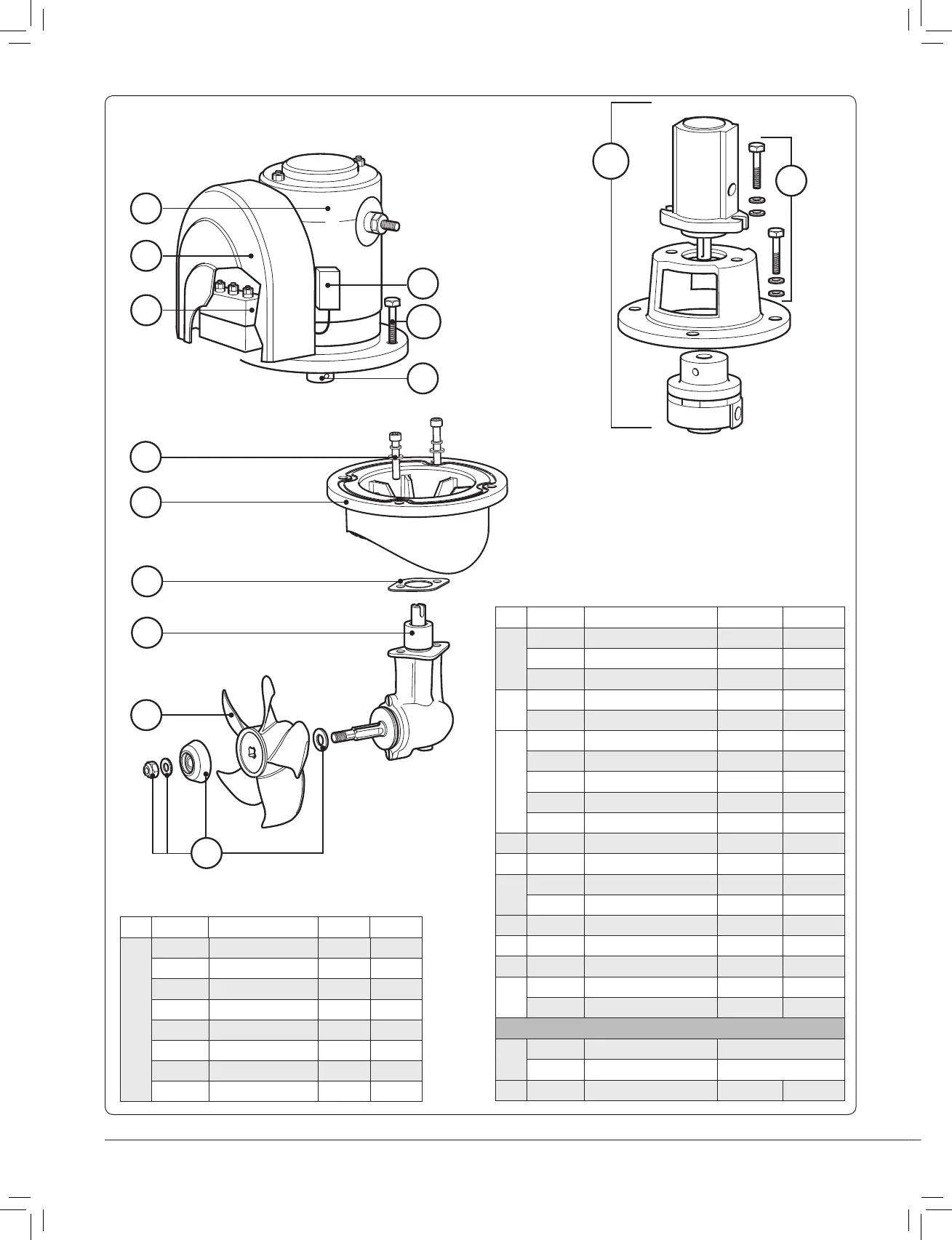

Electric/Hydraulic TT Thruster 140 - 300
10
1
12
5
6
9
8
4
3
2
7
11
12
13
Item Part No. Description kW Volts
1
583026 Motor Assembly 3.0 12
583027 Motor Assembly 3.0 24
583032 Motor Assembly 4.0 12
583033 Motor Assembly 4.0 24
583028 Motor Assembly 5.0 12
583029 Motor Assembly 5.0 24
583030 Motor Assembly 6.0 12
583031 Motor Assembly 6.0 24
6.3 Model 185TT/H 3.0 to
6.0 kW 12 & 24 V
Item Part No. Description kW Volts
2
553034 Cover 3.0 12-24
553036 Cover 4.0/5.0 12-24
555034 Cover 6.0 12
3
559003 Black Box All All
559020 Black Box 6.0 12
4
B11126 Solenoid 3.0 12
B11127 Solenoid 3.0 24
B11128 Solenoid 4.0/5.0 12
B11129 Solenoid 4.0/5.0/6.0 24
B11130 Solenoid 6.0 12
5 553071 Mounting Saddle All All
6 553035 Tunnel Gasket All All
7
583001 Hub - 2.2 Ratio 3.0 12-24
583003 Hub - 1.5 Ratio 4.0-6.0 12-24
8 589351 Propeller All All
9 589350 Anode Kit All All
10 559017 Drive pin All All
11
589352 Installation Fixings Kit 3.0 12.24
589355 Installation Fixings Kit 4.0-6.0 12-24
Hydraulic Only
12
583040 Hydraulic Motor Assembly 5.0 cc/rev
583041 Hydraulic Motor Assembly 6.0 cc/rev
13 589352 Installation Fixings Kit All All
