5-6
Selection Guide
1
5
° S
WIVEL MAX.
7
° MAX.
MISALIGNMENT
15
° K-8
10
° K-9
15
° SWIVEL MAX.
4.5" (115mm)
0.75"
(19mm)
DIA.
7
.64"
(194mm)
2.82"
(72mm)
A RETRACTED*
C*
B CENTRED*
1" (25mm)

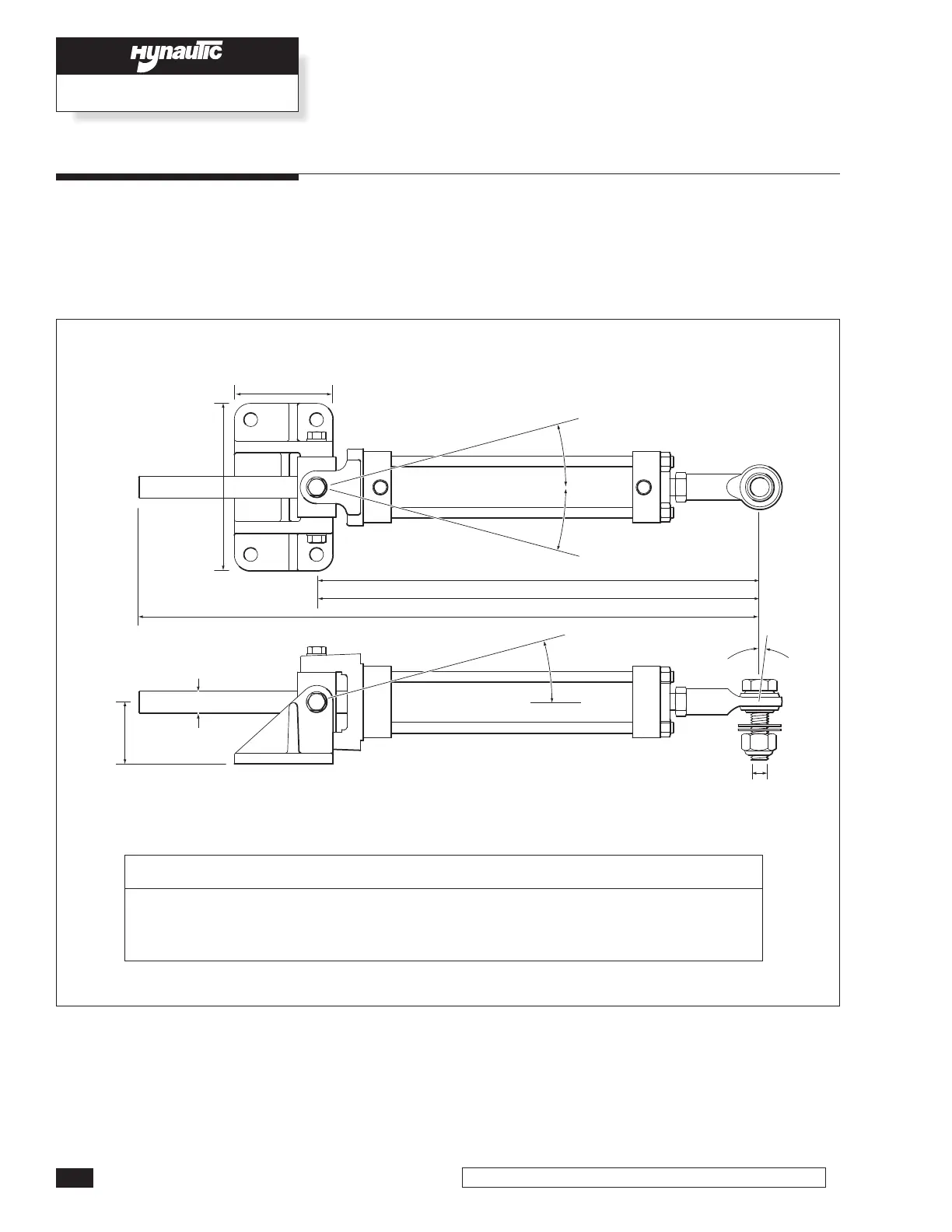

K-8 & K-9
The K-8 and K-9 cylinders are double rod end, tie rod constructed
hydraulic cylinders. Each has a universal mount, which allows two
planes of pivot freedom. Each cylinder is equipped with a stainless
steel ball joint. Porting is through two 1/4" NPT ports at each end of
the cylinder.
CYL DIMENSIONS
MODEL A* B* C* BORE STROKE DISP
K-8 19.74" (502mm) 24.47" (622mm) 27.92" (710mm) 2.5" (64mm) 9.5" (242mm) 39.2cu in
K-9 24.74" (629mm) 31.99" 813(mm) 37.92" (962mm) 2.5" (64mm) 14.5" (369mm) 59.8cu in
*Clevis option increases length by 0.44" (12mm)
Large I/B Cylinders
K-8/K-9
INBOARD STEERING
