Owner’s Manual

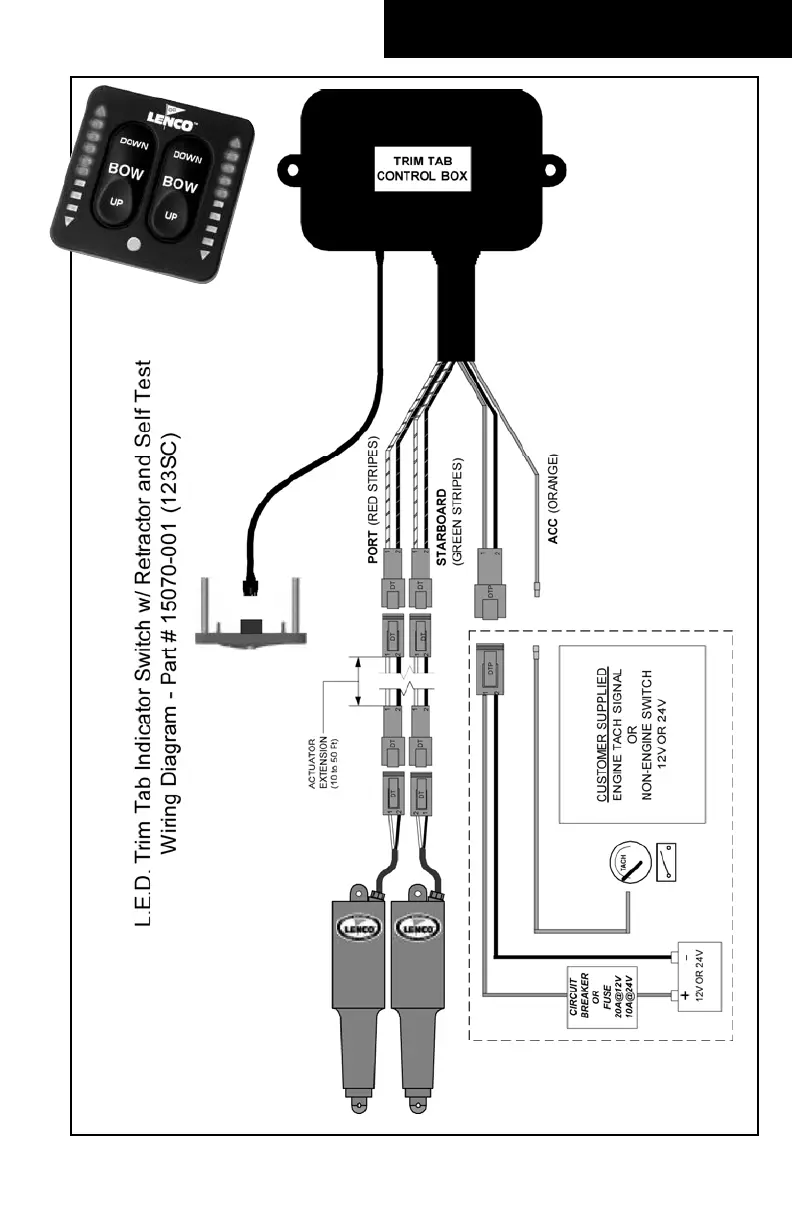

Switch Wiring #15070-001 (123SC)
Note: In all cases,
make sure control box
is mounted with wires
facing down
toward deck.
# 15069-001 (124SSR)
# 15070-001 (123SC)
Note: In all cases,
make sure control box
is mounted with wires
facing down
toward deck.
This product must be wired exactly as shown above.
Failure to wire the trim tab retractor as shown will cause
cancellation of all warranties by the manufacturer.
This product must be wired exactly as shown above.
Failure to wire the trim tab retractor as shown will cause
cancellation of all warranties by the manufacturer.
