Edimax CV-7428nS User Manual

15
Figure ii

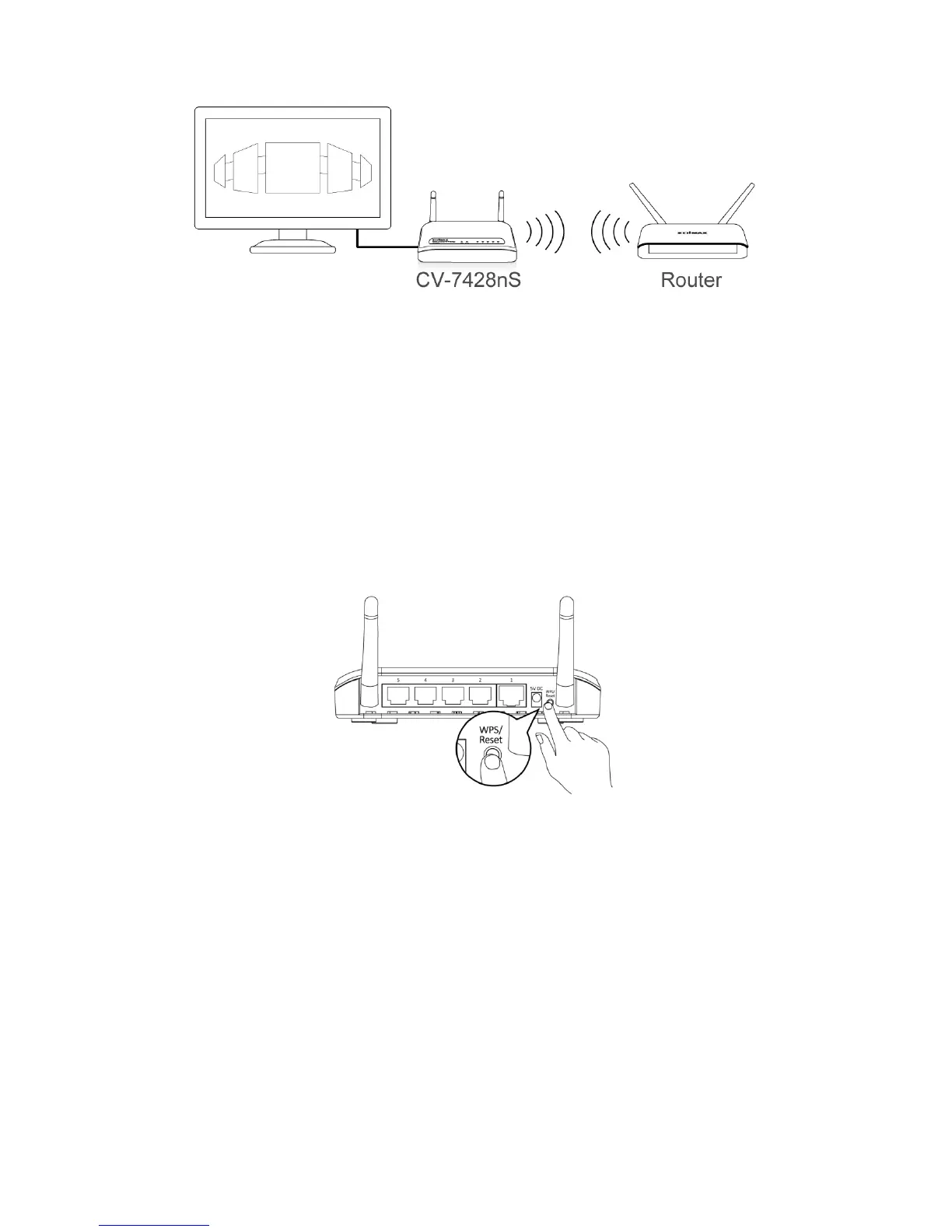

II-4. Resetting the Wireless Bridge
In the event that the wireless bridge malfunctions or stops responding, you
can reset the device back to its factory settings. To do so, press and hold the
WPS/Reset button on the rear panel of the device for at least 10 seconds.
When the green PWR LED begins to flash, release the WPS/Reset button and
wait for the device to restart. The device is ready when the PWR LED has
stopped flashing, and displays on.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
