Edimax CV-7428nS User Manual

58
IV-1-4. How to Find your Router’s IP Address
To find your router’s IP address, please follow the instructions appropriate for
your operating system.
IV-1-4-1. Windows XP, Vista & 7

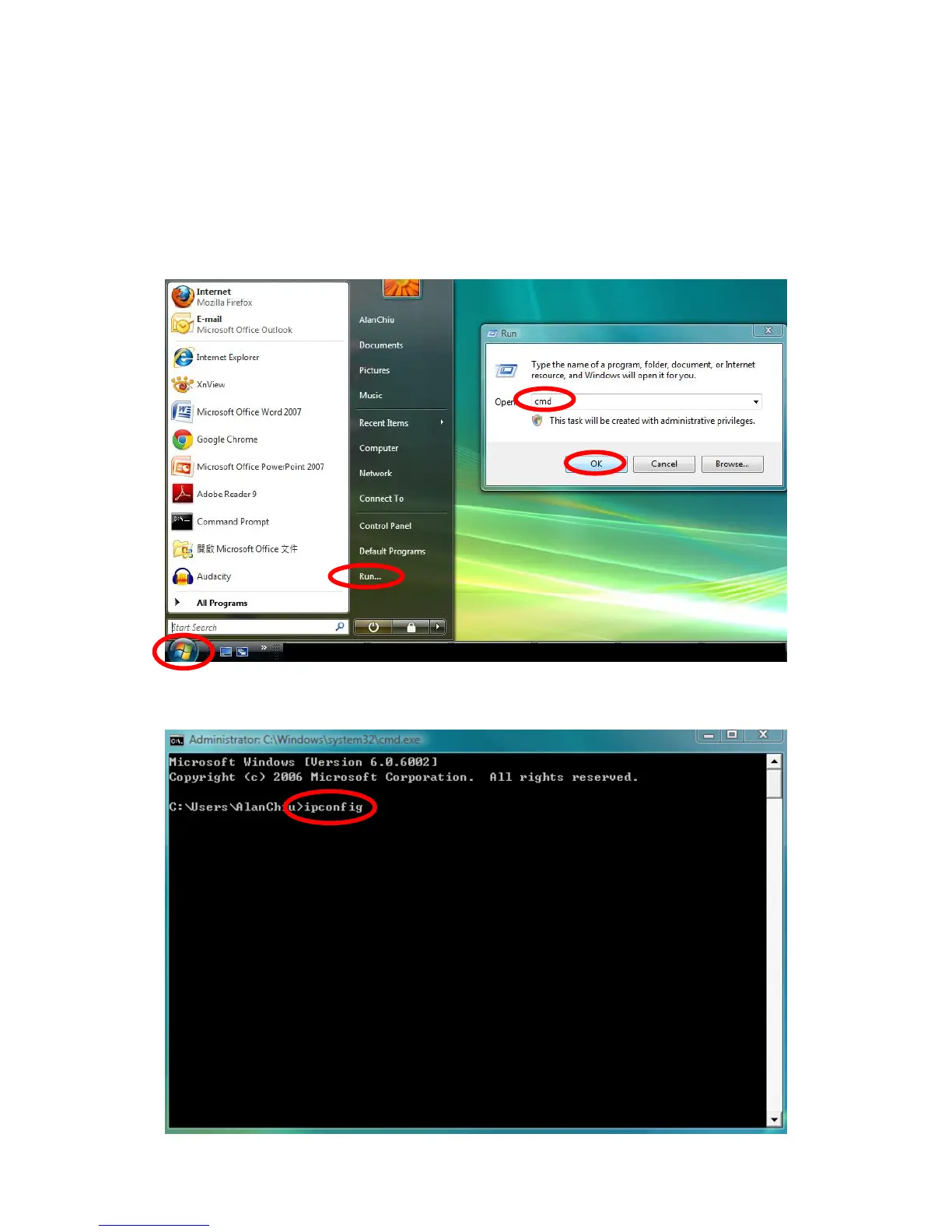

1. Go to “Start”, select “Run” and type “cmd”, then press Enter or click “OK”.
2. A new window will open, type “ipconfig” and press Enter.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
