Edimax CV-7428nS User Manual

14
Your wireless bridge is now configured and ready for use with your wired
network device, such as smart TV, Blu-ray player or games console. Please see
Hardware Installation for guidance on using the wireless bridge with your
network device.
II-3. Hardware Installation
I. After WPS button setup
Connect the wireless bridge to one or more of your network devices, using
an Ethernet cable (included). Switch on your network device and connect
to your network as usual. See Figure i & Figure ii.
II. After iQ Setup
After you have completed iQ Setup, disconnect the wireless bridge from
your computer and power supply. Connect the wireless bridge to one or
more of your network devices, using an Ethernet cable (included) and
reconnect the power supply – remember to wait for the PWR LED to
display on to indicate that the device has finished booting up. Switch on
your network device and connect to your network as usual. See Figure i &
Figure ii.

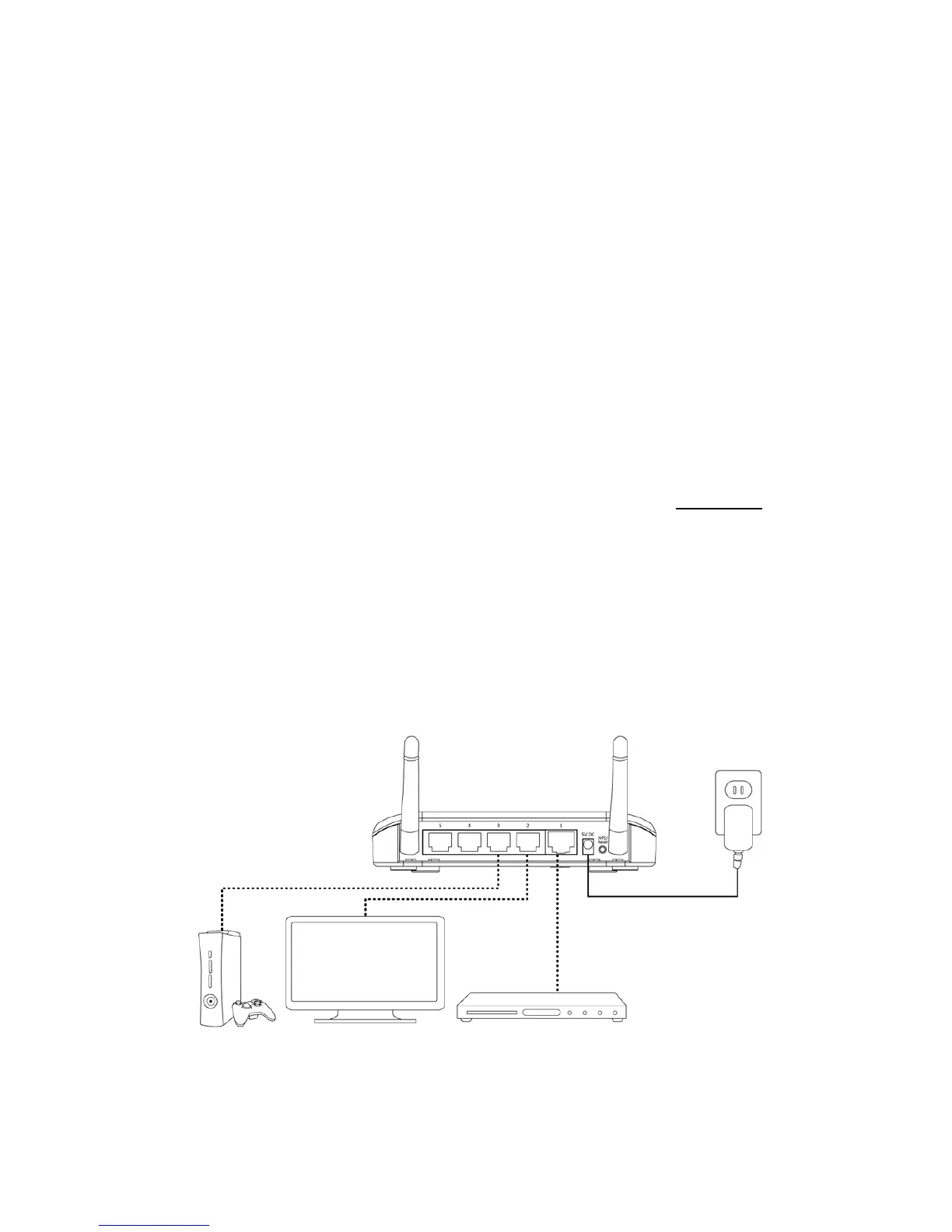

Figure i

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
