Edimax CV-7428nS User Manual

13

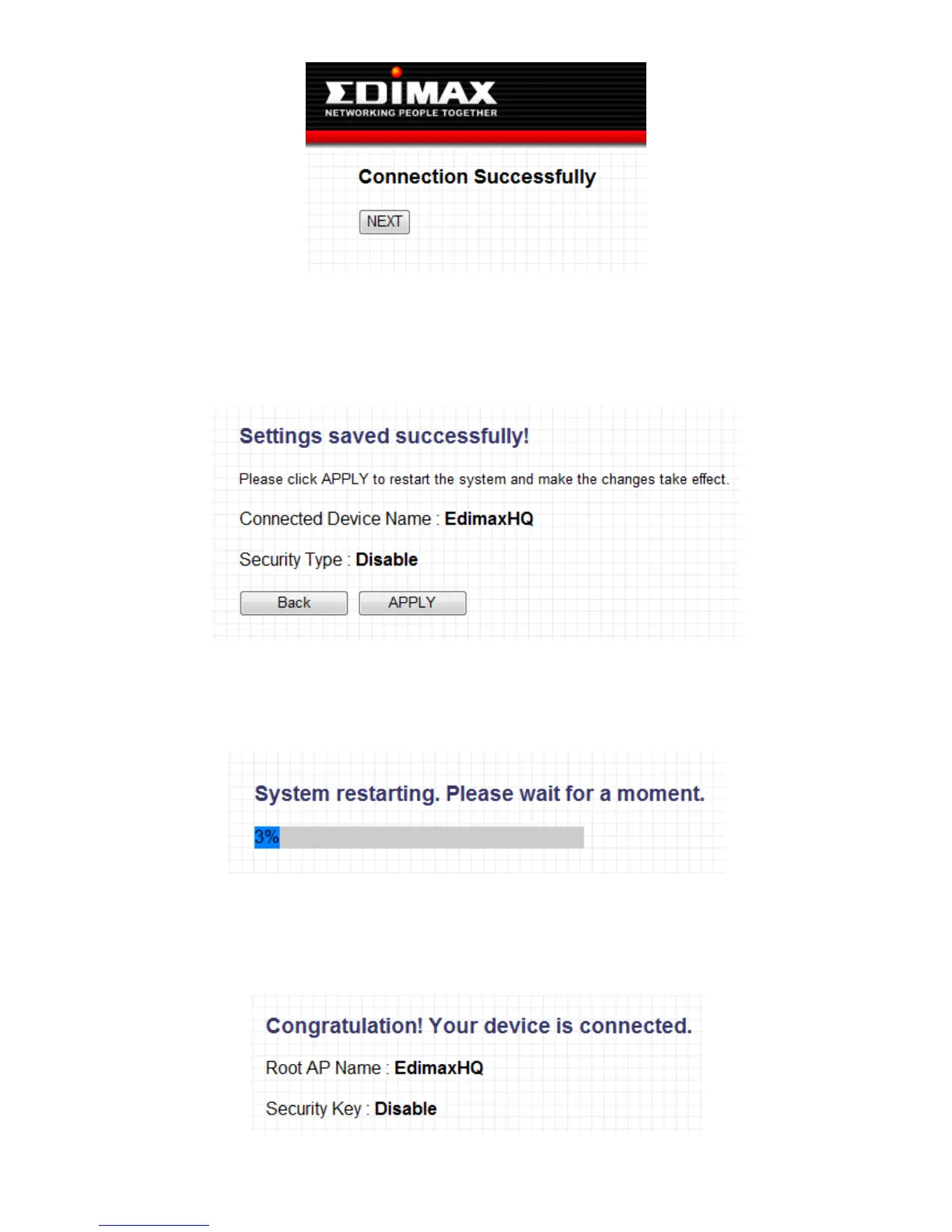

9. The device name and security type will be displayed on the screen. Click
“APPLY” to restart the wireless bridge and make the settings take effect, or
click “Back” to go back to the previous screen.
10. When you click “APPLY”, the system will restart. Please wait until the
restart completes.
11. The following screen will confirm that your wireless bridge is connected to
your Wi-Fi network, and the root AP name and security key will also be
displayed.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
