Edimax CV-7428nS User Manual

21

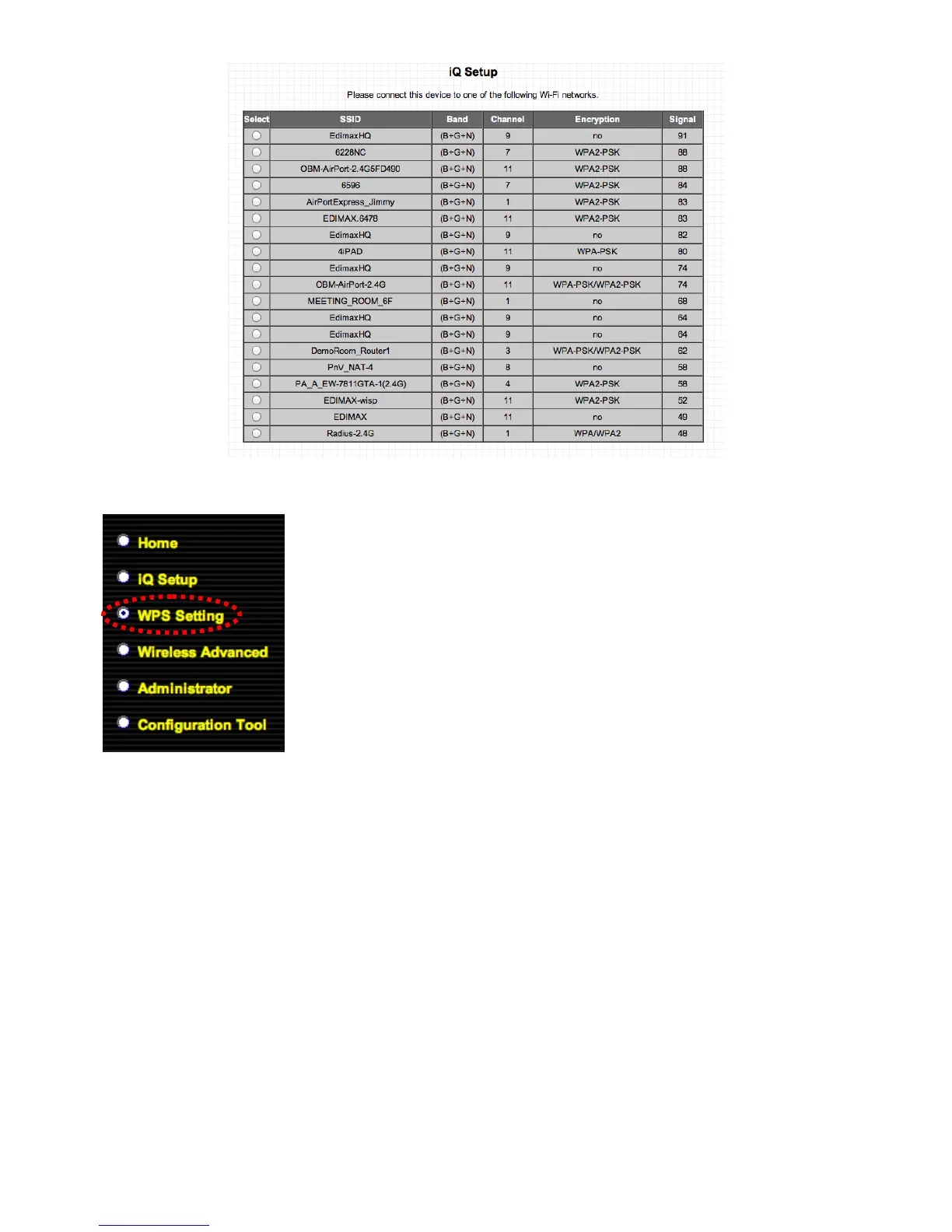

III-3. WPS Setting
Wi-Fi Protected Setup (WPS) is the simplest way to build
a connection between your wireless router/access point
and the wireless bridge. You don’t have to select an
encryption mode and enter a long encryption
passphrase – simply press a button on the wireless
router/access point and on the wireless bridge, and WPS
will do the rest for you.
The wireless bridge supports two types of WPS:
Push-Button Configuration (PBC), and PIN code. If you
want to use PBC, you will need to switch the wireless bridge to WPS mode by
pushing the WPS/Reset button or clicking the “Start PBC” button in the web
configuration interface - and pushing a specific button on the wireless
router/access point. To use PIN code, you will need to enter the PIN code of
the wireless router/access point you wish to connect to and then activate WPS
mode in the wireless router/access point.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
