Edimax CV-7428nS User Manual

51
5. In the panel on the right side, enter IP address 192.168.9.20 and subnet
mask 255.255.255.0. Click on “Apply”.
Note: Your existing static IP address will be
displayed in the “IP address” field before you
replace it. Please make a note of this IP address,
subnet mask, router IP and DNS server address.

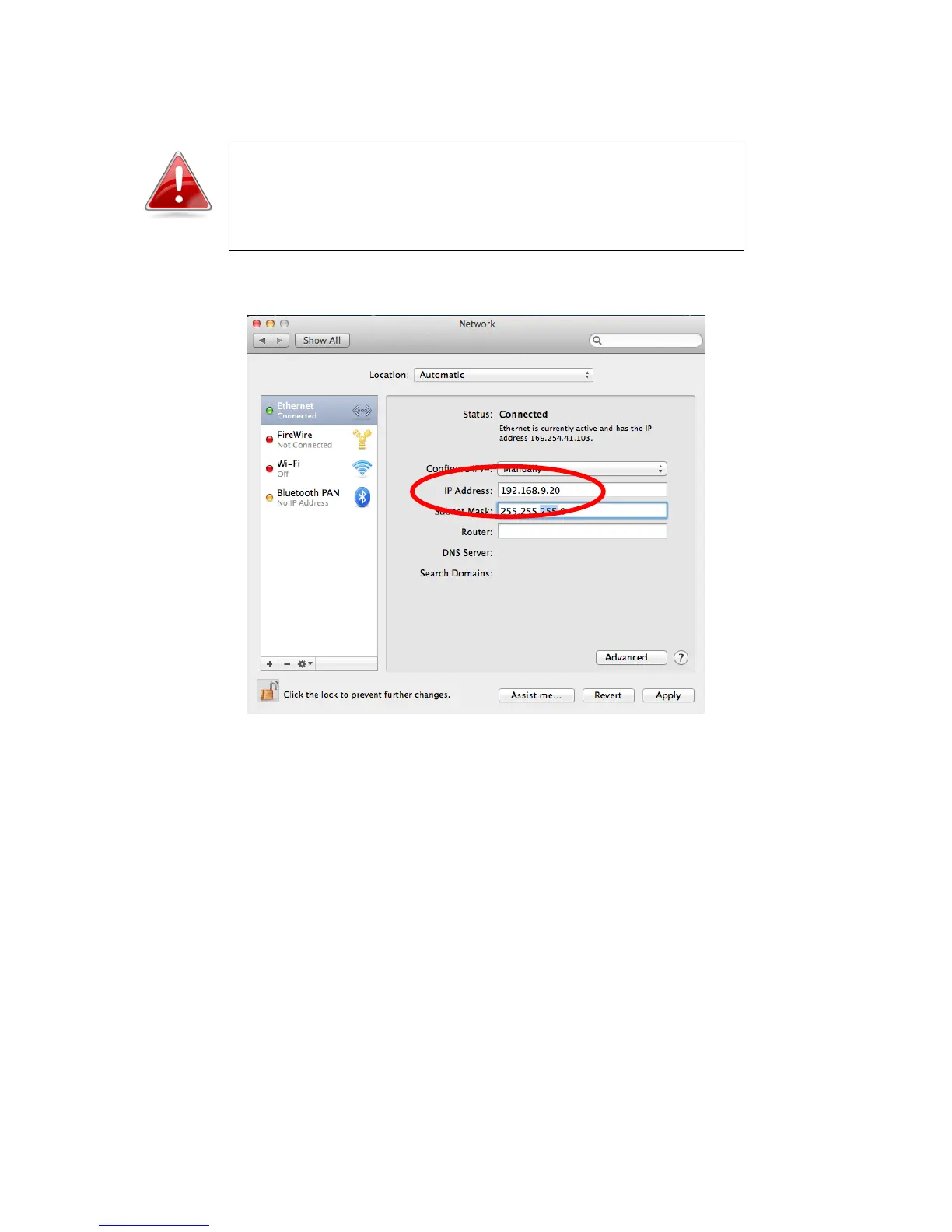

6. In the left sidebar, “Ethernet” should now display “Connected” as shown
below. In the right panel, you should see the IP address 192.168.9.20 and
subnet mask 255.255.255.0.

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
