Edimax CV-7428nS User Manual

9

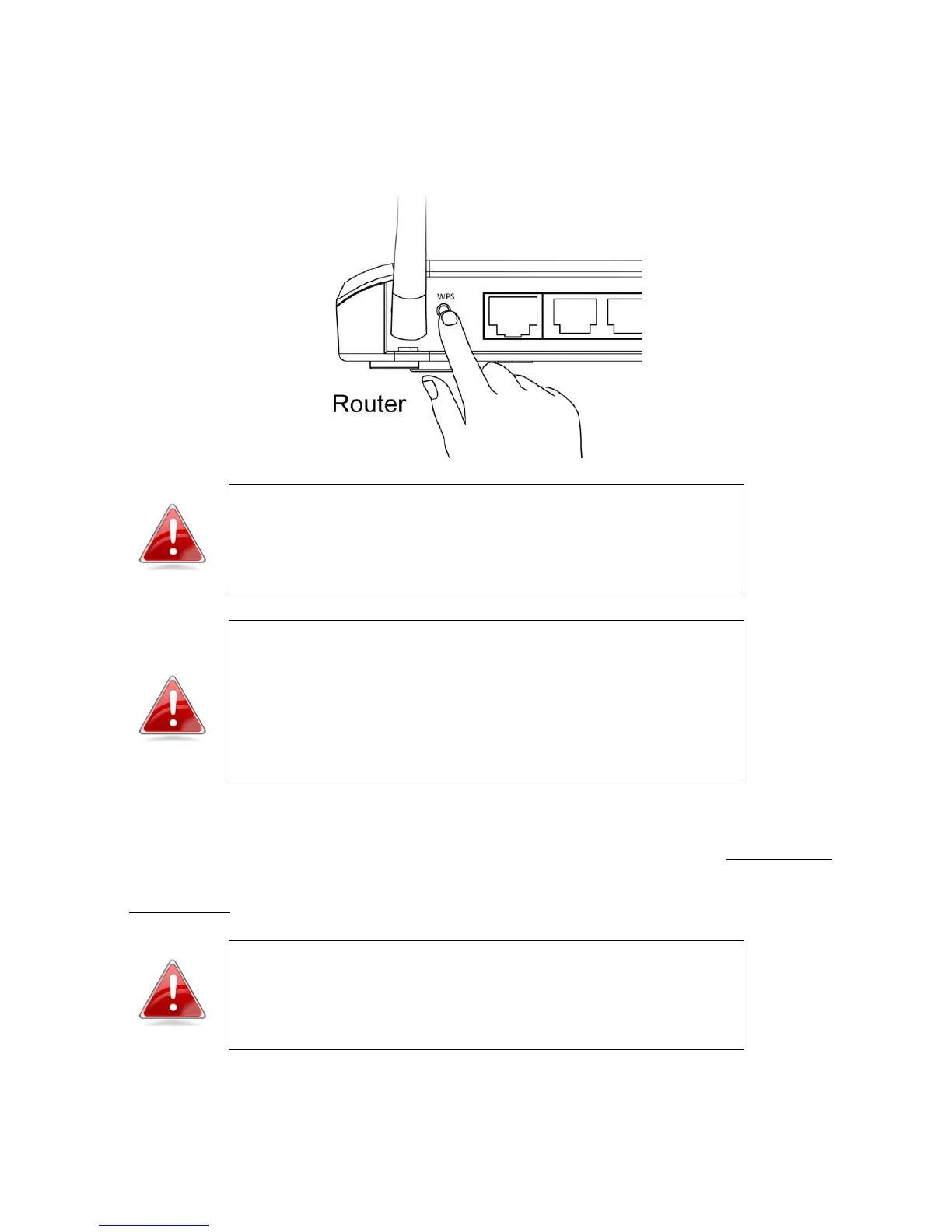

3. The WPS function of the wireless bridge will now be active for 2 minutes.
So, within 2 minutes, please press the WPS button on the wireless
router/access point of your root network, to activate its WPS function also.
Note: Different routers/access points may require
you to press and hold the WPS button for different
lengths of time – if you are unsure, please consult
the user manual of your device.
Note: Please take care not to hold the WPS button
for too long. It is common for a WPS button to have
a secondary function as a reset button, depending
on the length of time which the button is held for.
Holding the WPS button for too long may result in
inadvertently resetting the device.
4. A WPS connection will now be established between your wireless bridge
and root network router/access point within two minutes. The WLAN LED
will stop flashing, and display on to indicate a successful connection. The
WLAN LED will remain on for 5 minutes.
Note: If the WPS function on your wireless bridge
timed out after 2 minutes, before you activated
WPS on your router/access point, then please
return to step 2 and try again.
Your wireless bridge is now configured and ready for use with your wired
network device, such as smart TV, Blu-ray player or games console. Please see

Edimax CV-7428nS Specifications

Power

power adapter voltage	DC 5V
power adapter current	1A

Operating Environment

humidity	10-90% (Non-condensing)
temperature range	0-40°C
temperature range in Fahrenheit	32 - 104°F

Wireless Standards

frequency band	2.4 GHz
IEEE 802.11n data rate	up to 300Mbps
IEEE 802.11g data rate	up to 54Mbps
IEEE 802.11b data rate	up to 11Mbps

Ports & Interfaces

LAN ports	5 x RJ-45
antenna type	2 x 2dBi external antennas
LED indicators	Power, Wireless, LAN ports

Weight and Dimensions

weight	155 grams
height	30 mm
width	127 mm
depth	96 mm
