EDMI ES-10B - 5 External Features; Meter Parts; Figure 5-1: ES-10 B Meter

ES-10B 4 Terminal Single Phase Residential Electricity
Meter - Product Guide
Copyright © 2019 EDMI Europe Ltd. All rights reserved
Version / Status: 1.1
Public
PAGE 10 OF 62
5 External Features
5.1 Meter Parts

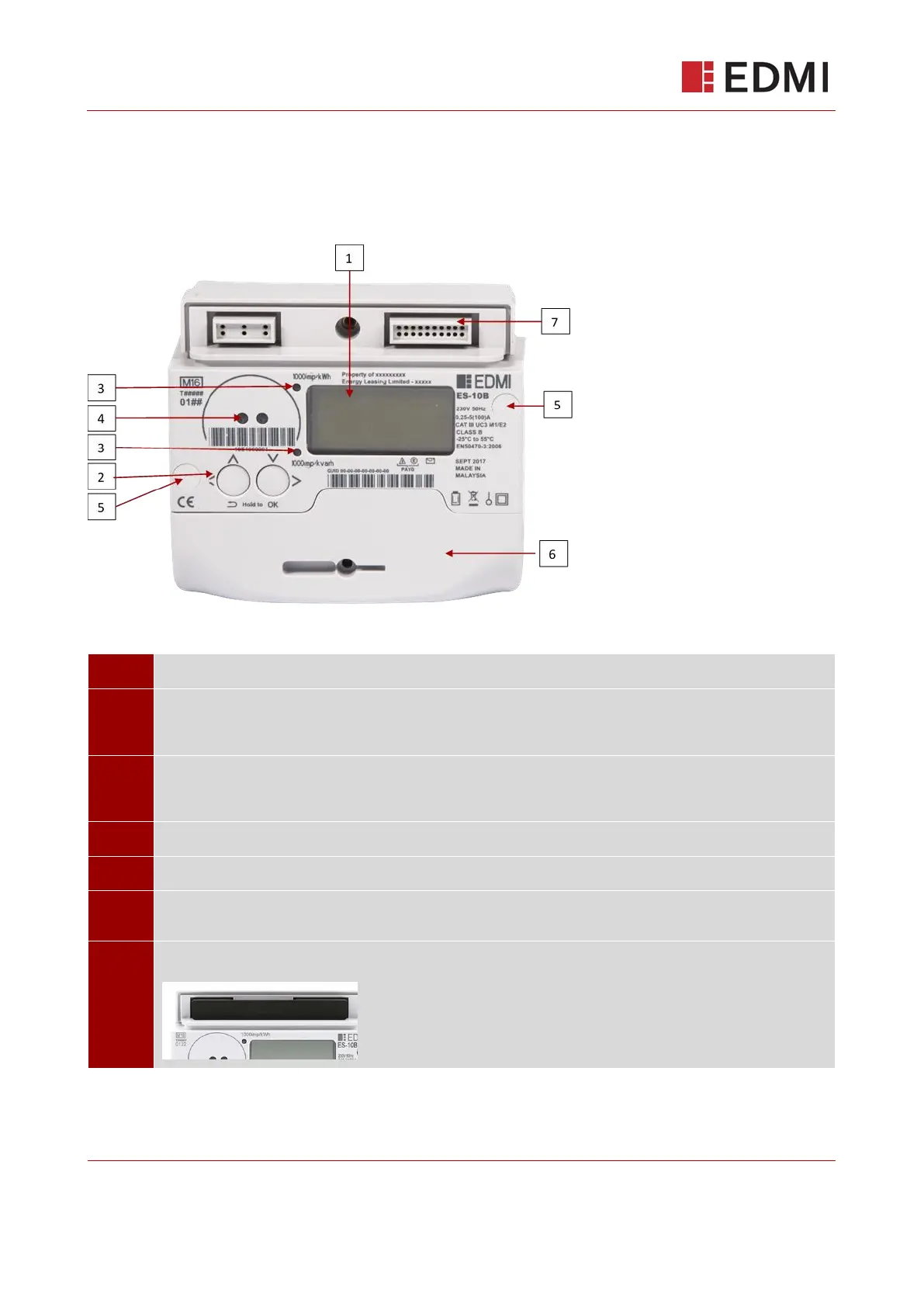

Figure 5-1: ES-10B Meter
1
Liquid Crystal Display (LCD)
2
Navigation Buttons (for menu navigation and selection):
 Left button: Press to navigate up or left (as applicable), press and hold to return.
 Right button: Press to navigate down or right (as applicable), press and hold for OK.
3
LED energy indicators:
 Top: Flashing at 1 pulse per Wh (1/1000
th
kWh)
 Bottom: Flashing at 1 pulse per varh (1/1000
th
kvarh)
4
Local optical port.
5
Tamper evident seals protecting the meter lid screws.
6
Terminal Cover. Beneath the terminal cover is the terminal block for the main supply and loads along with
the terminal block for the pulsing output 2A relay – the Auxiliary Load Control Switch.
7
ICHIS cover (not pictured above, pictured below). If fitted to meter, remove in order to install a
Communications Hub on the meter.
