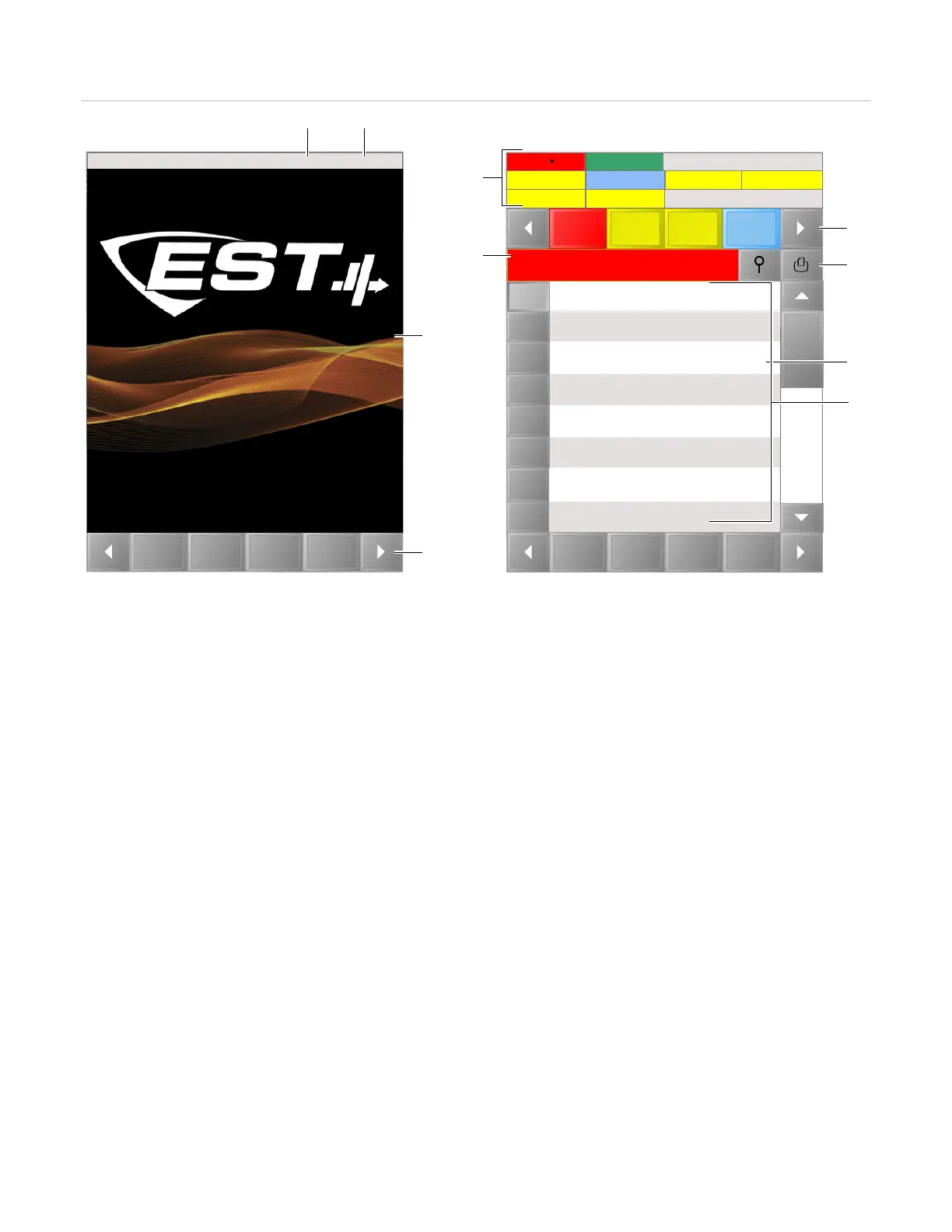

Figure 2: System normal and off-normal screens
System normal
screen
(1)
Date
(2)
Time
(3)
Default system normal graphic
(4)
Action bar
System off-normal screen
(1) Event indicators and event counters. A star
designates that there are unacknowledged or new
events since the control unit was last silenced.
(2) Name of displayed event list
(3) List bar
(4) Option buttons for selected action or event list
(5) Acknowledged event indicated by a check mark
(proprietary systems)
(6) Information list
