LCD screen operator controls
The LCD screen provides list buttons, action buttons, and command buttons that let you operate the control unit,
configure time and date settings, and view system information and event activity.

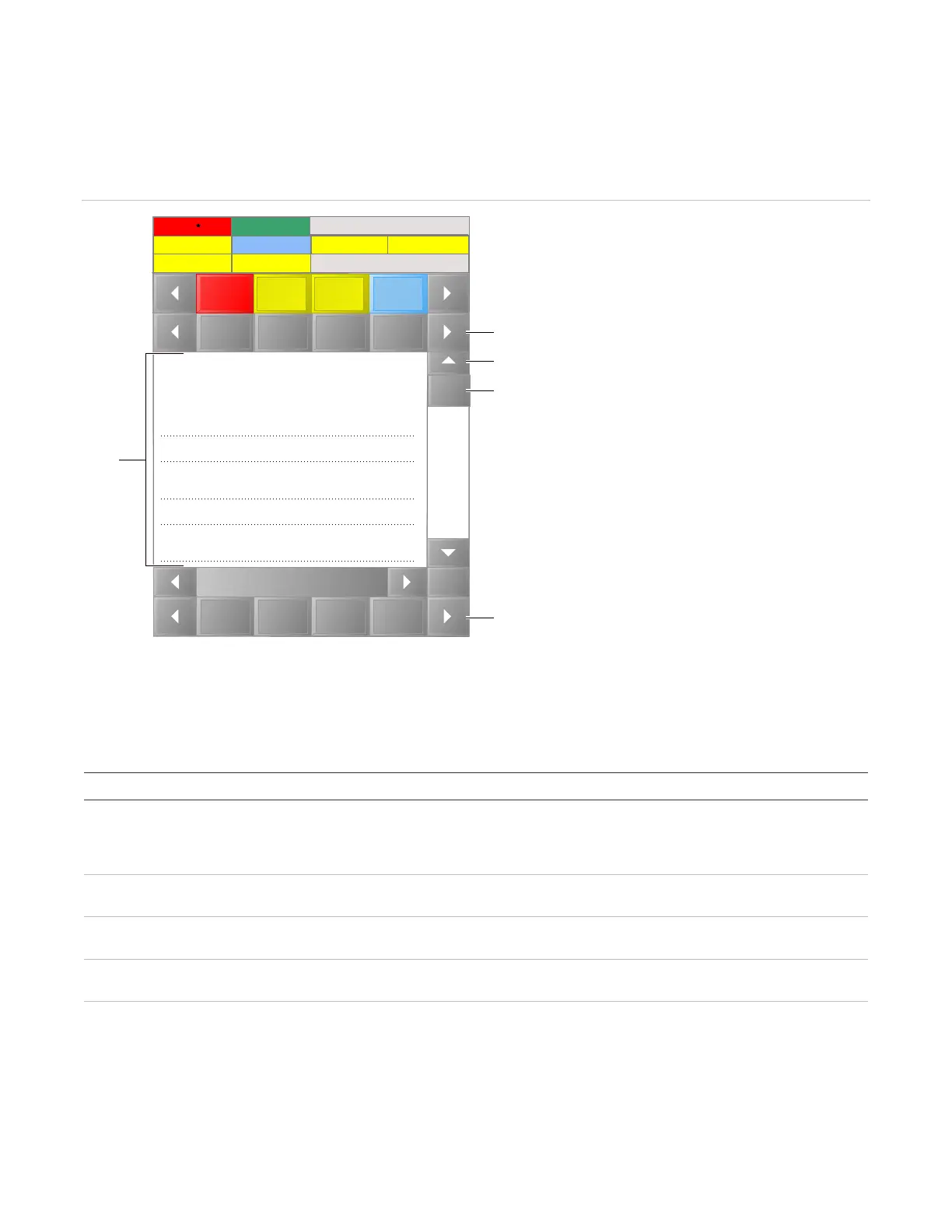

Figure 3: LCD screen operator controls
(1) Command bar with left and right scroll buttons
(2) Scroll arrow
(3) Scroll bar
(4) Action bar with left and right scroll buttons
(5) Interactive information screen
Note: For a list of interface icon and option button
descriptions see. Table 2 below.
LCD screen operator interface icons and option buttons
The user interface includes several conditional icons, some of which act as operator controls (option buttons).
Table 2 below provides descriptions of the icons and option buttons that you may see.
Table 2: Operator interface icon and option button descriptions
Icon Description
Icon Description
Appears next to the event indicator
counters. Designates there are
unacknowledged or new events since
the control unit was last silenced.
Users administration button. Tap to
show/hide user PIN.
Appears next to the signed in user ID.
Users administration button. Tap to
save user information.
Reports option button. Tap to refresh
the report.
Request control button. Tap to grant
control.
Reports option button. Tap to go to
previous page.
Request control button. Tap to deny
control.
• Reports option button. Tap to go to
next page.
• Keypad button. Tap to enter and
go to next keypad screen.
Fire phone connect button. Tap to
connect a disconnected call.
Holidays
08/21/2018 12:07:33
System
Info
Project
Tree
Sign
In
Status History Revision
Test
Indicators
(1)
(2)
(4)
(3)
(5)
System information
08/21/2018 12:07:01
IP/DNS node name
Versions
Configuration
Utility
Project
Configuration
Project
Configuration
Date
Project
Node8030dc90b443
Project Description
Prepared by: [Root\Building 1\FACU 1\Hardware Layer]4CPU
00.00.26.38
2.3.0.0
08/21/2018 11:03:31
Control
Requests
Disable 2
Alarm 3
Alarm
Trouble Sup
Sup 4
Requests 3 Building 1
Trouble 1
Ground 2
Other 3
Holidays
08/21/2018 12:07:33
System
Info
Project
Tree
Sign
In
Status History Revision
Test
Indicators
(1)
(2)
(4)
(3)
(5)
System information
08/21/2018 12:07:01
IP/DNS node name
Versions
Configuration
Utility
Project
Configuration
Project
Configuration
Date
Project
Node8030dc90b443
Project Description
Prepared by: [Root\Building 1\FACU 1\Hardware Layer]4CPU
00.00.26.38
2.3.0.0
08/21/2018 11:03:31
Control
Requests
Disable 2
Alarm 3
Alarm
Trouble
Superv-
isory
Supervisory 4
Requests 3 Building 1
Trouble 1
Ground 2
Other 3
