Parallel Connections for 120V Single-phase

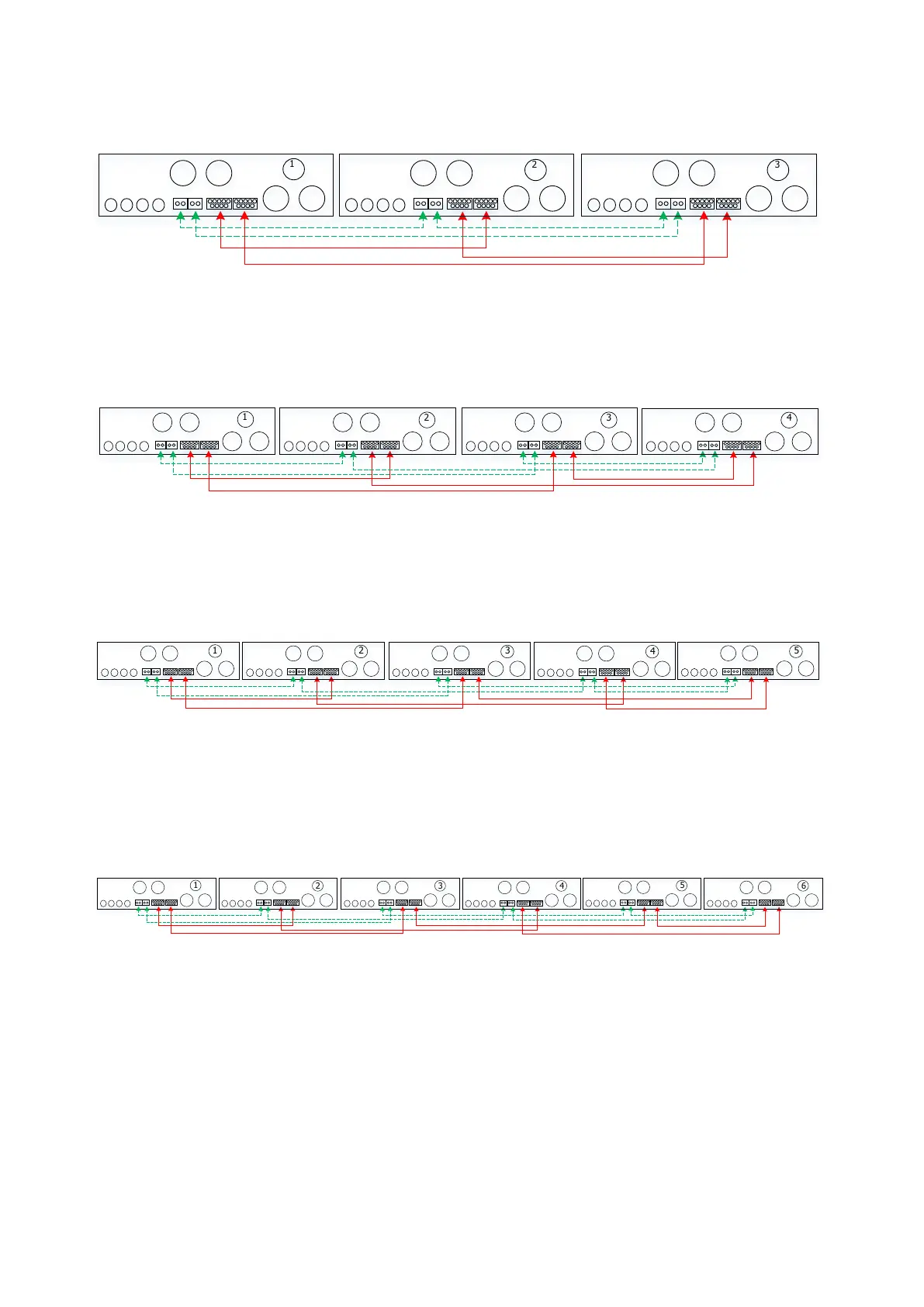

Continued: Communication Connection
2
1
3
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 3 Port B
• Inverter 2 Port B → Inverter 4 Port B
• Inverter 3 Port A → Inverter 4 Port A
Communication Connection
2
1
3
4
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 3 Port B
• Inverter 2 Port B → Inverter 3 Port A
Communication Connection
2
1
3
4
5
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 3 Port B
• Inverter 2 Port B → Inverter 4 Port A
• Inverter 3 Port A → Inverter 5 Port B
• Inverter 4 Port B → Inverter 5 Port A
Communication Connection
2
1
3
4
5
6
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 3 Port B
• Inverter 2 Port B → Inverter 4 Port A
• Inverter 3 Port A → Inverter 5 Port A
• Inverter 4 Port B → Inverter 6 Port A
• Inverter 5 Port B → Inverter 6 Port B
