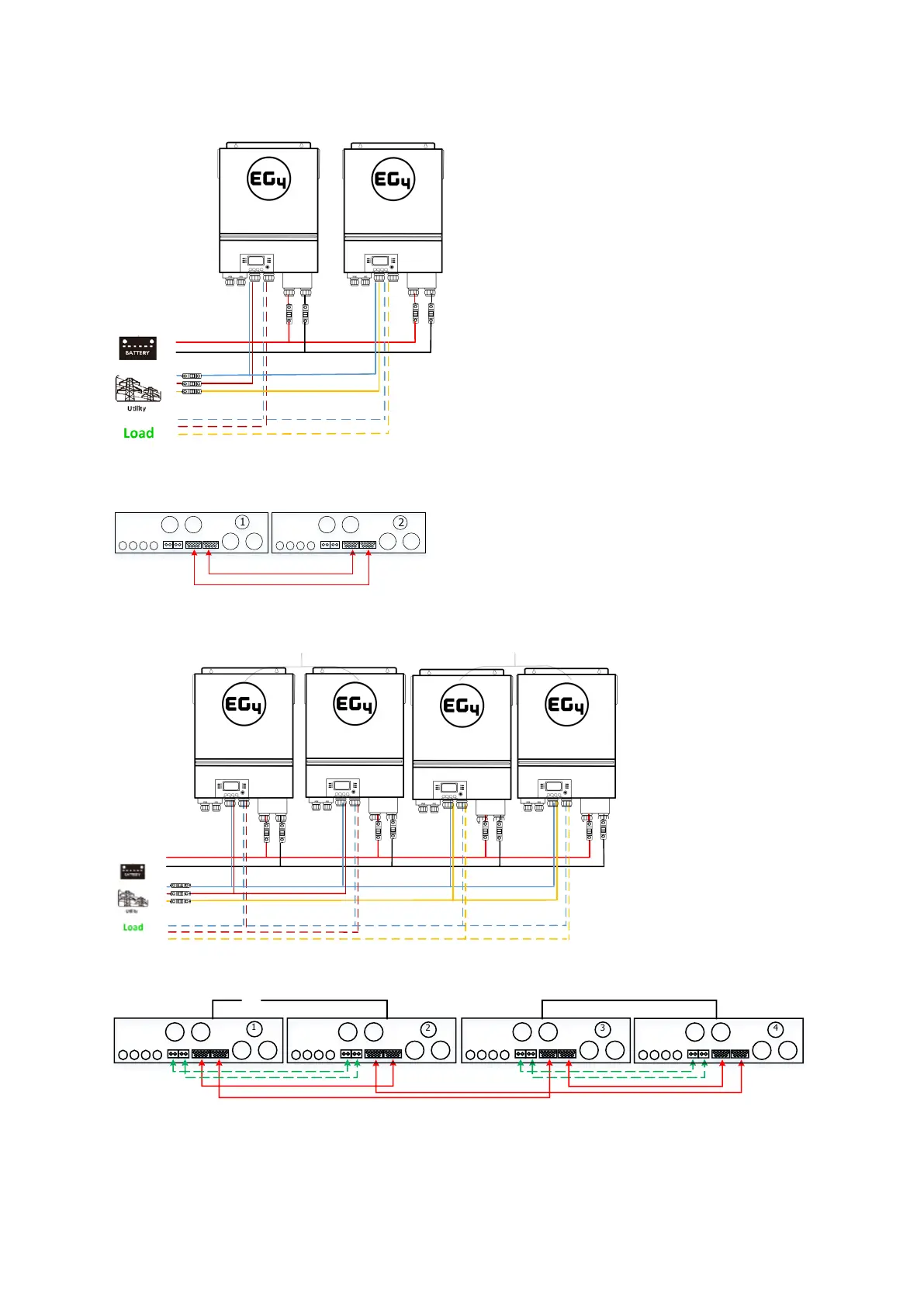

EG4 6500 - 240 V Split-phase Connections

N
L1
L2
N
L1
L2
Communication Connection
2
1
3
4
Line 1
Line 2
www.eg4electronics.com
Line 1
N
L1
L2
N
L1
L2
Line 2
Communication Connection
2
1
Line 1
Line 2
3. Parallel Connections for 240V Split-phase:
• Inverter 1 Port A → Inverter 2 Port A
• Inverter 1 Port B → Inverter 2 Port B
• Inverter 3 Port A → Inverter 4 Port A
• Inverter 3 Port B → Inverter 4 Port B
N
L1
L2
N
L1
L2
EG4 Electronics
www.eg4electronics.com
WARNING: Consult a qualified electrician
before installing inverter/chargers on lines/legs
in an unbalanced configuration. Unbalanced
lines/legs can lead to equipment damage and
loss of efficiency.
WARNING: Do not connect the current
sharing cables between inverters operating on
different phases/lines (Split-phase and 3-
phase configurations). Damage to the
inverters can occur if current sharing cables
are incorrectly installed.
Current Sharing Cables - configuration will
be noted on each diagram with dashed lines
(green when printed in color) in the following
format:
EG4 Electronics
www.eg4electronics.com
Communication Connection
EG4 Electronics
www.eg4electronics.com
Line 2Line 2
Line 1Line 1
EG4 Electronics
www.eg4electronics.com
22
• Inverter X Port A → Inverter X Port A
• Inverter X Port B → Inverter X Port B
