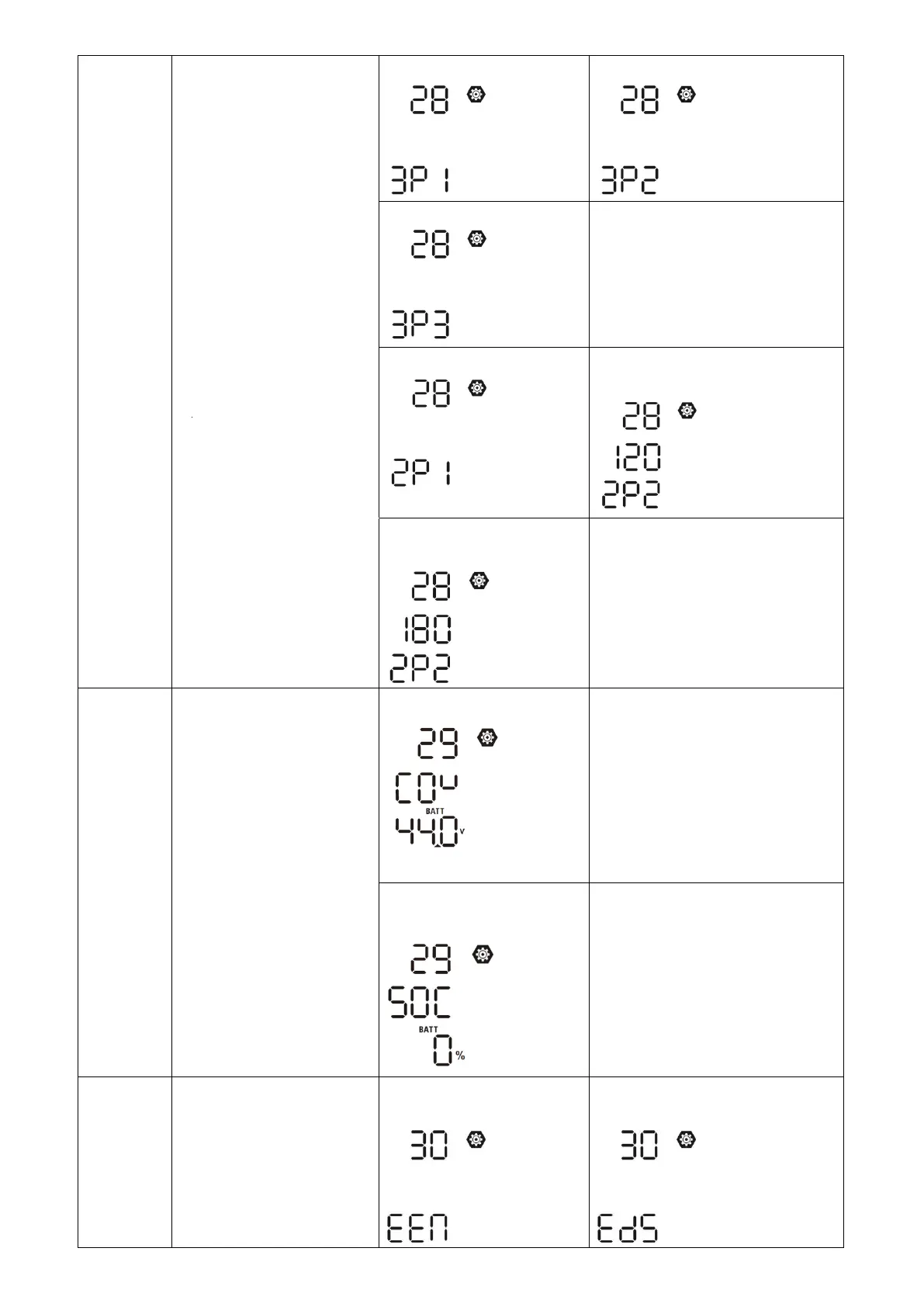

EG4 6500 - Page 46

L1 phase:
L2 phase:
L3 phase:
L1 for split phase:
L2 for split phase:
(120° phase difference)
L2 for split phase:
(180° phase difference)
29
Low DC cut-off voltage:
⚫ If battery power is only
power source available,
inverter will shut down.
⚫ If PV energy and battery
power are available,
inverter will charge
battery without AC
output.
⚫ If PV energy, battery
power and utility are all
available, inverter will
transfer to line mode
and provide output
power to loads.
default: 44.0V
If self-defined is selected in
program 5, this program can be set
up. Setting range is from 42.0V to
48.0V. Increment of each click is
0.1V. Low DC cut-off voltage will be
fixed to setting value no matter
what percentage of load is
connected.
SOC 0% (default for
Lithium)
If any types of lithium battery is
selected in program 05, setting
value will change to SOC
automatically. Adjustable range
is 0% to 90%. Increment of each
click is 5%.
30
Battery equalization
Battery equalization
Battery equalization disable
(default)
28
AC output mode
*This setting is only
available when the inverter
is in standby mode (Switch
off).
