Eizo ColorEdge CS2740 User Manual

40
Chapter 7 Attaching/Detaching the Stand

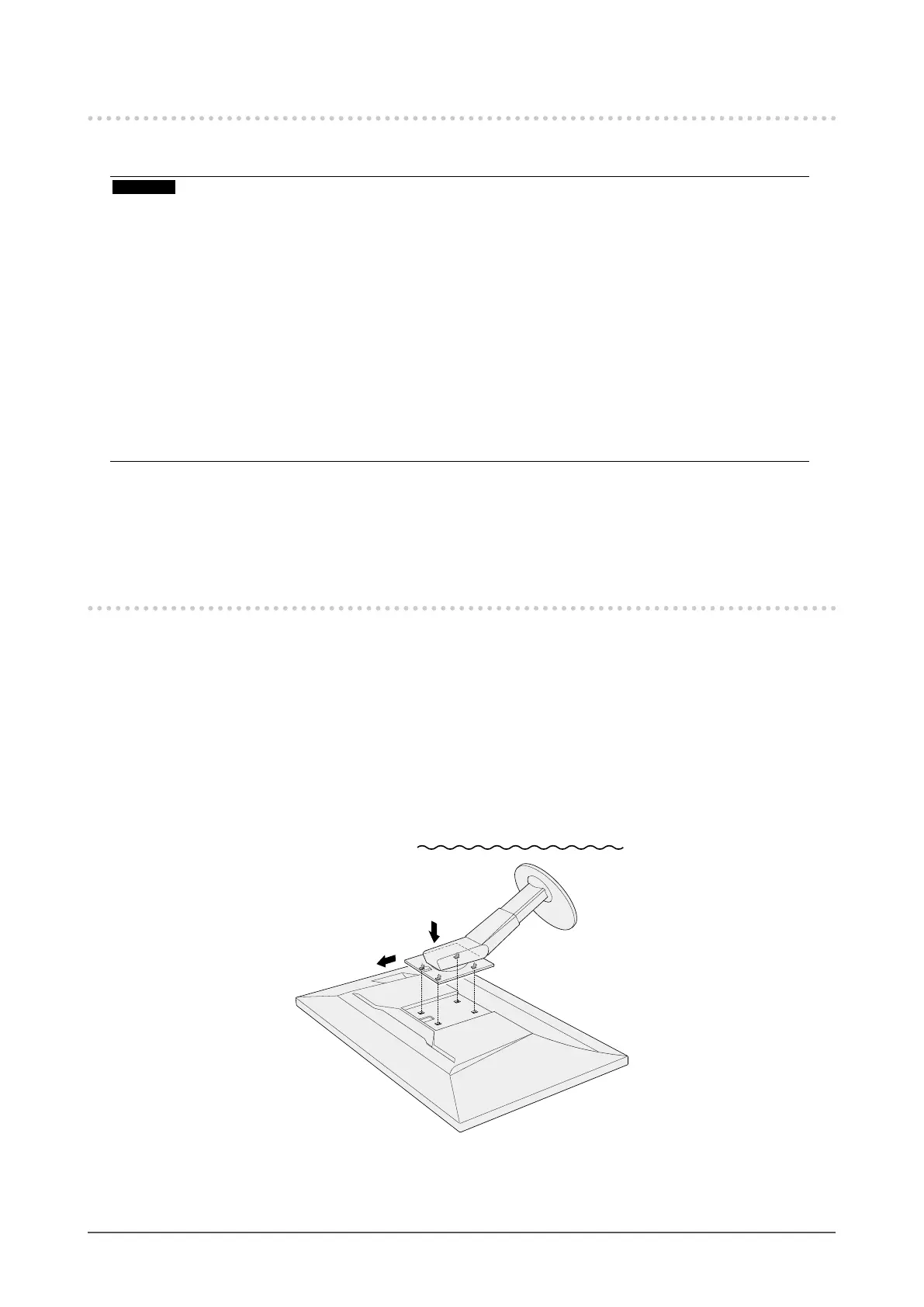

7-2. Attaching the Optional Arm
An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our
web site for the corresponding optional arm (or optional stand). www.eizoglobal.com
Attention
• When attaching an arm or stand, follow the instructions of their User's Manual.
• When using another manufacturer's arm or stand, conrm the following in advance and select one conforming
to the VESA standard. Use the VESA mounting screws supplied with this product when attaching the arm or
stand.
- Clearance between screw holes: 100 mm x 100 mm
- External dimensions of the VESA mount section of the arm or stand: 122 mm x 122 mm or less
- Plate thickness: 2.6 mm
- Must be strong enough to support weight of the monitor unit (excluding the stand) and attachments such as
cables.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
- Up 45˚, down 45˚
• Connect the cables after attaching an arm or stand.
• Since the monitor and arm or stand are heavy, dropping them may result in injury or equipment damage.
• When installing the monitor in portrait mode, turn the monitor screen 90˚ in clockwise direction.
1.
Attach the arm or stand to the monitor.
Use the VESA mounting screws supplied with this product when attaching the arm or stand.
7-3. Attaching the Original Stand
1.
To prevent damaging the LCD panel surface, lay the monitor with its LCD panel
surface facing down on a soft cloth spread on a stable surface.
2.
Remove the xing screws on the optional arm (or optional stand), and detach
the optional arm (or optional stand).
3.
Attach the original stand.
Insert the four tabs on the stand into the square holes on the back panel (1) and slide the stand
towards the upper portion of the monitor until it makes a clicking sound (2).
(1)
(2)(2)

Eizo ColorEdge CS2740 Specifications

General

Pixel pitch	0.155 x 0.155 mm
Screen shape	Flat
Pixel density	164 ppi
Response time	10 ms
Display diagonal	26.9 \
Adobe RGB coverage	99 %
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Viewable size, vertical	2160 mm
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	68.4 cm
Viewable size, horizontal	596.2 mm
Digital vertical frequency	23 - 61 Hz
Digital horizontal frequency	25 - 137 kHz
Display brightness (typical)	350 cd/m²
Certification	CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics
Product color	Black
Market positioning	Graphics design
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	168 W
Power consumption (typical)	36 W
Power consumption (PowerSave)	1 W
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 35 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
USB Power Delivery up to	60 W
USB Type-A downstream ports quantity	4
Number of USB Type-B upstream ports quantity	1
Cables included	AC, USB
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	265 mm
Width (with stand)	638 mm
Height (with stand)	404.1 mm
Weight (with stand)	10300 g
Depth (without stand)	75 mm
Height (without stand)	378.2 mm
Weight (without stand)	6700 g
