SCD 19102 / SMD 19102
Instruction Manual, 10/2011, A5E01588521A-004
21
Assembly
5
5.1 Mounting of unit
Ceiling suspension
The display can be mounted flush with horizontally and vertically adjacent displays.
The following must be observed when mounting (100 mm hole spacing according to VESA
standard):
Information on the fastening screws
Number 4
Thread M4
Strength 8.8
Insertion depth 7 mm minimum / 9 mm maximum
Torque Max. 3 Nm
0RXQWLQJSDG
6FUHZ0
'LVSOD\KRXVLQJ
PP

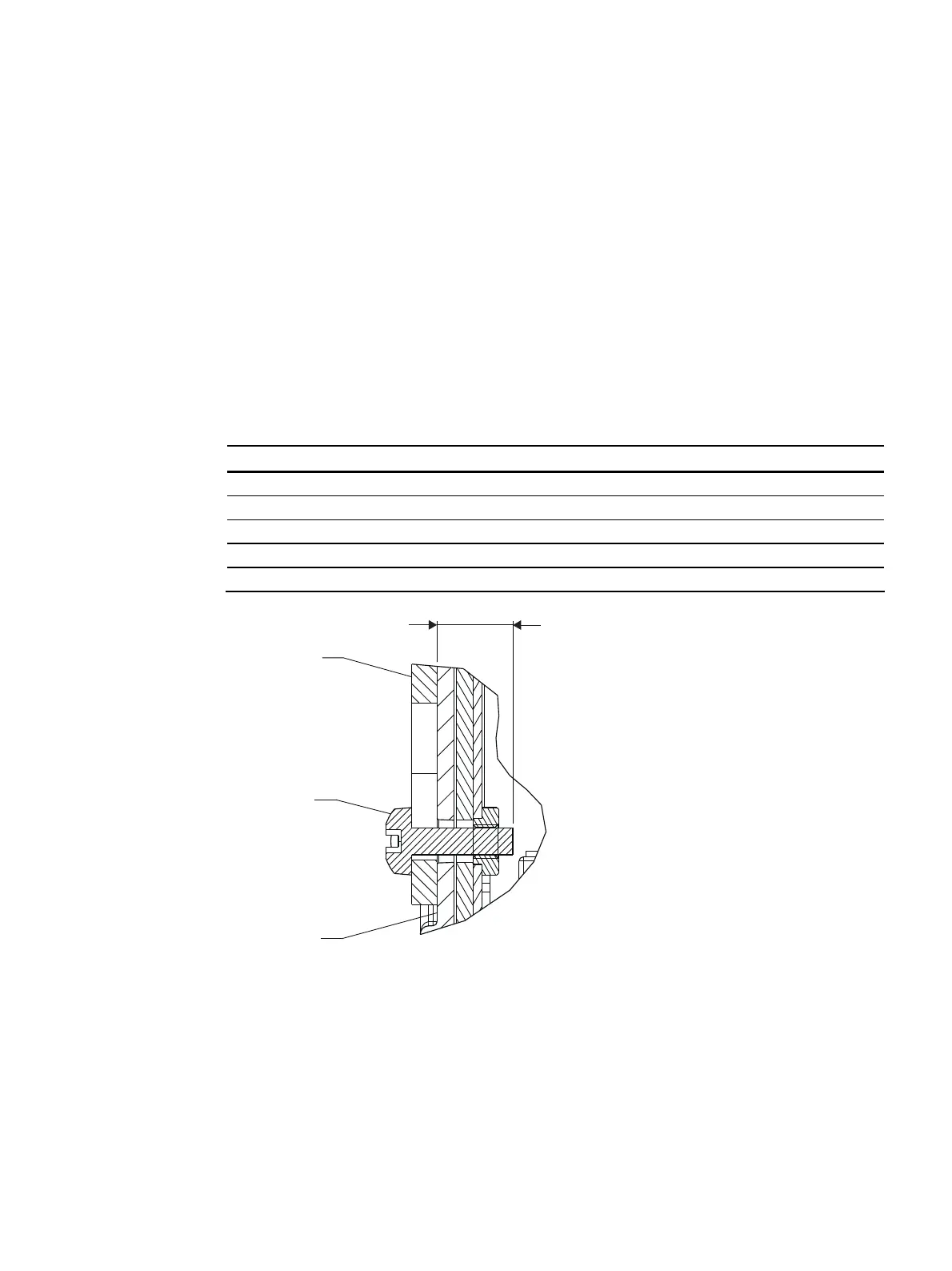

Figure 5-1 Insertion depth of mounting screws
See also
Product-specific safety notes (Page 14)
Installation site (Page 19)
Installing/removing the display stand a
nd cable for the SCD 19102 (Page 30)
