Commissioning
7.4 System settings
SCD 19102 / SMD 19102
68 Instruction Manual, 10/2011, A5E01588521A-004

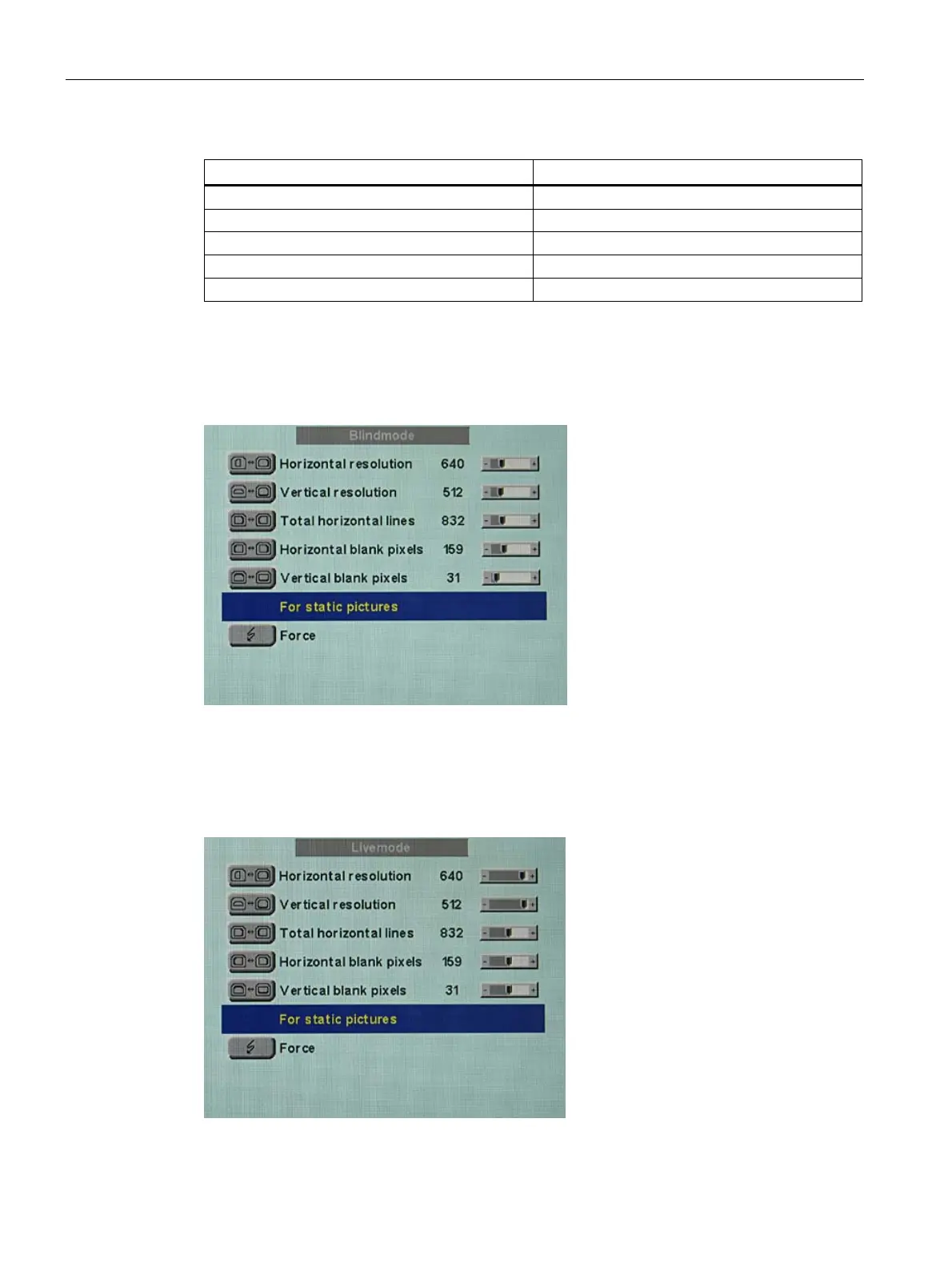

Force Mode menu Timing diagram
Horizontal resolution 3 - Active Video (resolution horizontal)
Vertical resolution 3 - Active Video (resolution vertical)
Total horizontal lines 5 – Total number of lines (horizontal)
Horizontal blank pixels 4 – Front Porch (horizontal)
Vertical blank pixels 4 – Front Porch (vertical)
7.4.6.3 Name equivalence for the Force Mode menu
Blind mode
The setting values must be known in Blind mode, and these can then be entered. See "Blind
mode" (Page 69).
Figure 7-7 Blind mode menu
Live mode
Timings whose setting values are unknown can be set step-by-step in Live mode using test
patterns. The changes in the test pattern are output live on the display. See "Live mode"
(Page 72).
Figure 7-8 Live mode menu
