Electrolux OVC3000 - Positions of Connectors

Technical Support - BSP 11/47 599 73 09-98 Rev. 02

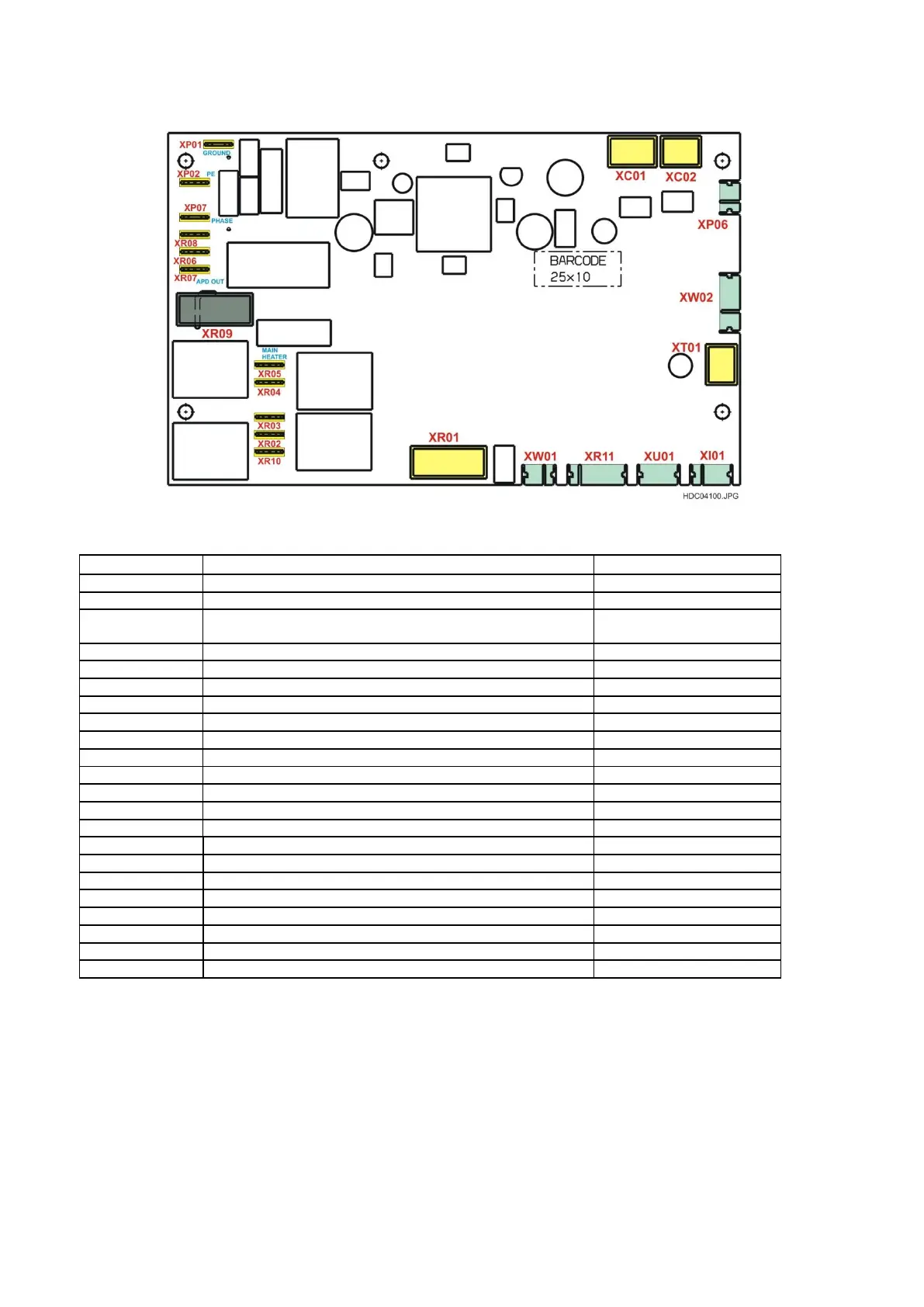

5.2 - POSITIONS OF CONNECTORS
Fig. 5
REFERENCE
DESCRIPTION
CONNECTOR
XC01
USER INTERFACE
WHITE
XC02
HOB COMMUNICATION
WHITE
XI01
DIGITAL IMPUTS (PIN 1 & 2 DOOR SWITCH, PIN 3 & 4
TELESCOPIC RUNNER SWITCH)
ON PCB
XP01
GROUND
FASTON
XP02
POWER SUPPLY (NEUTRAL)
FASTON
XP06
SIDEKLICK
ON PCB
XP07
POWER SUPPLY (PHASE)
FASTON
XR01
SMALL LOADS
WHITE
XR02
TOP/
FASTON
XR03
MAIN RELAY (IN)
FASTON
XR04
OPEN (*)
FASTON
XR05
RING HEATER
FASTON
XR06
MAIN RELAY KR01 (OUT)
FASTON
XR07
MAIN RELAY KR01 (OUT)
FASTON
XR08
MAIN RELAY KR01 (IN)
FASTON
XR09
DOORLOCK SYSTEM
BLACK
XR10
BOTTOM HEATER
FASTON
XR11
FPM RELAY
ON PCB
XT01
PT500 SENSOR
WHITE
XU01
FACTORY PROGRAMMING
ON PCB
XW01
ANALOG IMPUT (EXTERNAL NTC SENSOR)
ON PCB
XW02
FPM COMMUNICATION
ON PCB
(*) NOTE : Depends on the type of appliance, refer to the wiring diagram specific.
