Electrolux OVC3000 - Positions of Connectors; Functions of Relay

Technical Support - BSP 26/47 599 73 09-98 Rev. 02

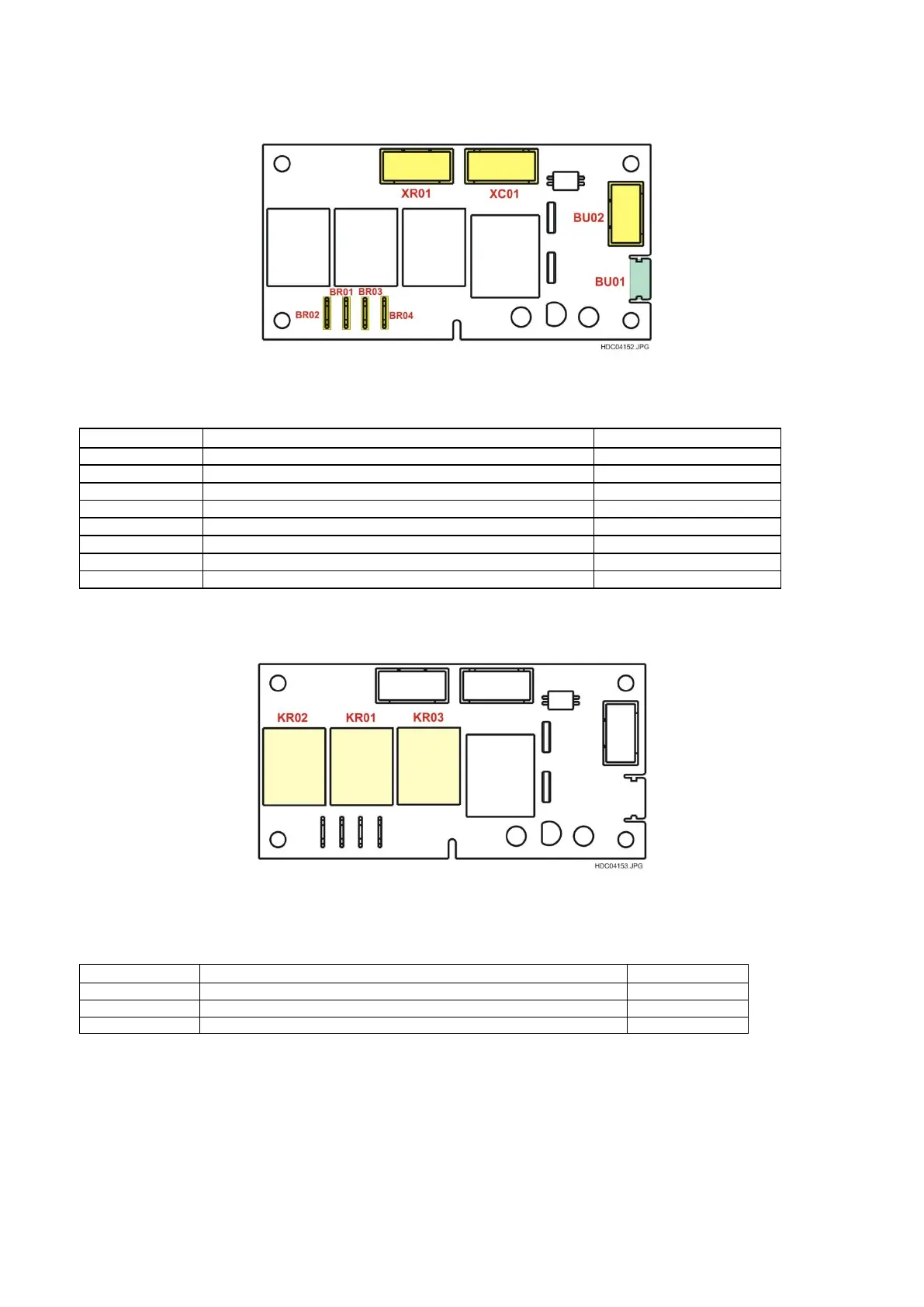

12.3.1 - POSITIONS OF CONNECTORS
Fig. 36
REFERENCE
DESCRIPTION
CONNECTOR
BR01
CONTACT OF RELAY KR01
FASTON
BR02
CONTACT OF RELAY KR02
FASTON
BR03
CONTACT OF RELAY KR03
FASTON
BR04
COMMON CONTACT OF RELAY
FASTON
BU01
FACTORY PROGRAMMING
ON PCB
BU02
ANALOG IMPUT (FOOD PROBE)
WHITE
XC01
OVC3000 COMMUNICATION
WHITE
XR01
OVC3000 RELAY COMMUNICATION
WHITE
12.3.2 - FUNCTION OF RELAY
Fig. 37
REFERENCE
DESCRIPTION
COLOR
KR01
STEAM HEATER RELAY (*)
WHITE
KR02
STEAM ACTUATOR RELAY (*)
WHITE
KR03
AUXILIARY RELAY (*)
WHITE
(*) The function depends on the configuration of individual appliance (see specific wiring diagram).
