Technical Support - BSP 13/47 599 73 09-98 Rev. 02

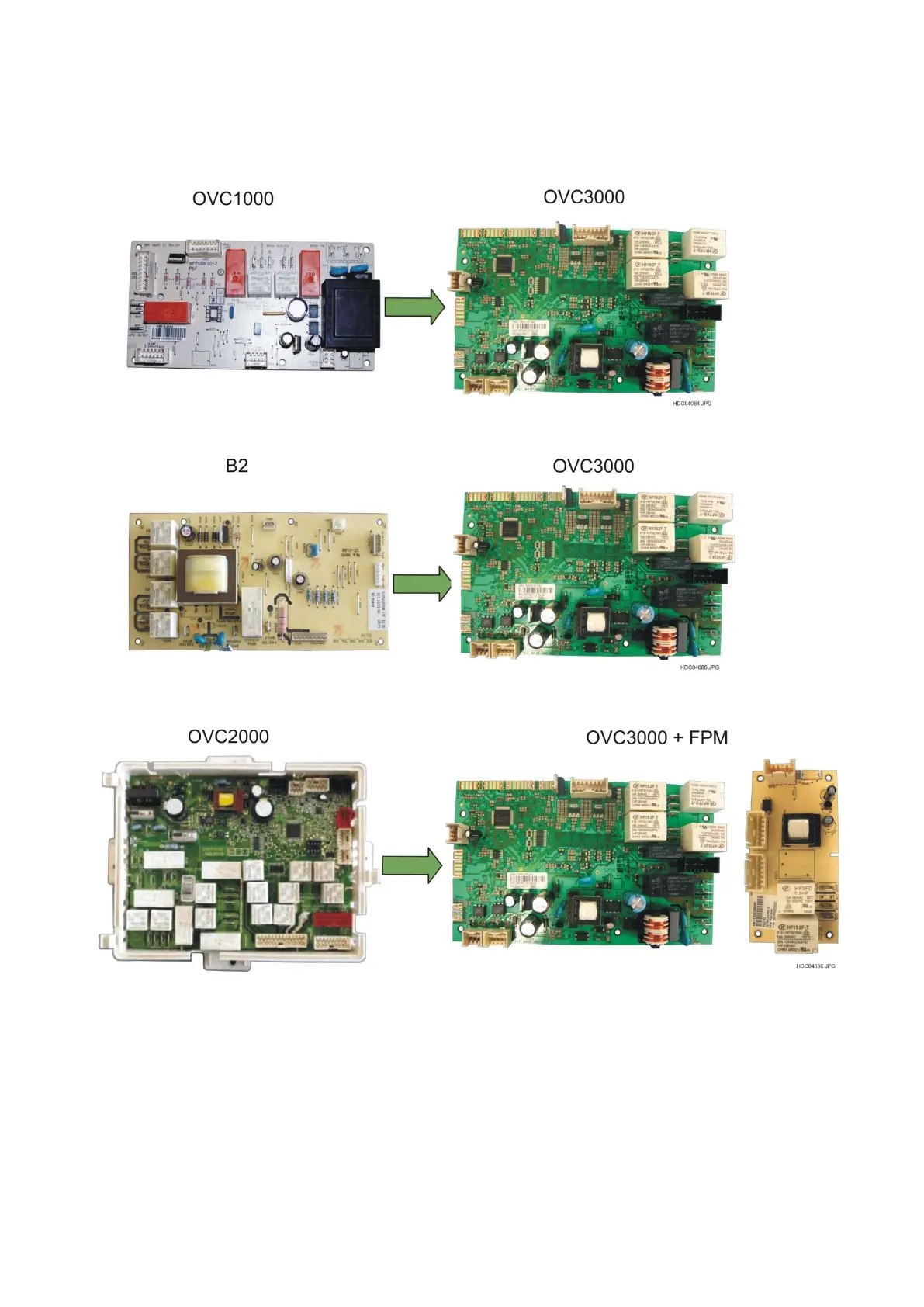

6 - DIFFERENCES WITH PREVIOUS POWER BOARDS
The new power board OVC3000 with user interfaces and software can replace (at project level) different
electronic cards currently in use:
Fig. 7
Fig. 8
Fig. 9
NOTE: In the appliances where was applied the power board OVC2000 in order to cover all the functions it
was necessary to add an additional FPM board.
NOTE 1 : The replacement is possible only from the standpoint of new production, in service you can not
replace the old cards with the new.
