Technical Support - BSP 22/47 599 73 09-98 Rev. 02

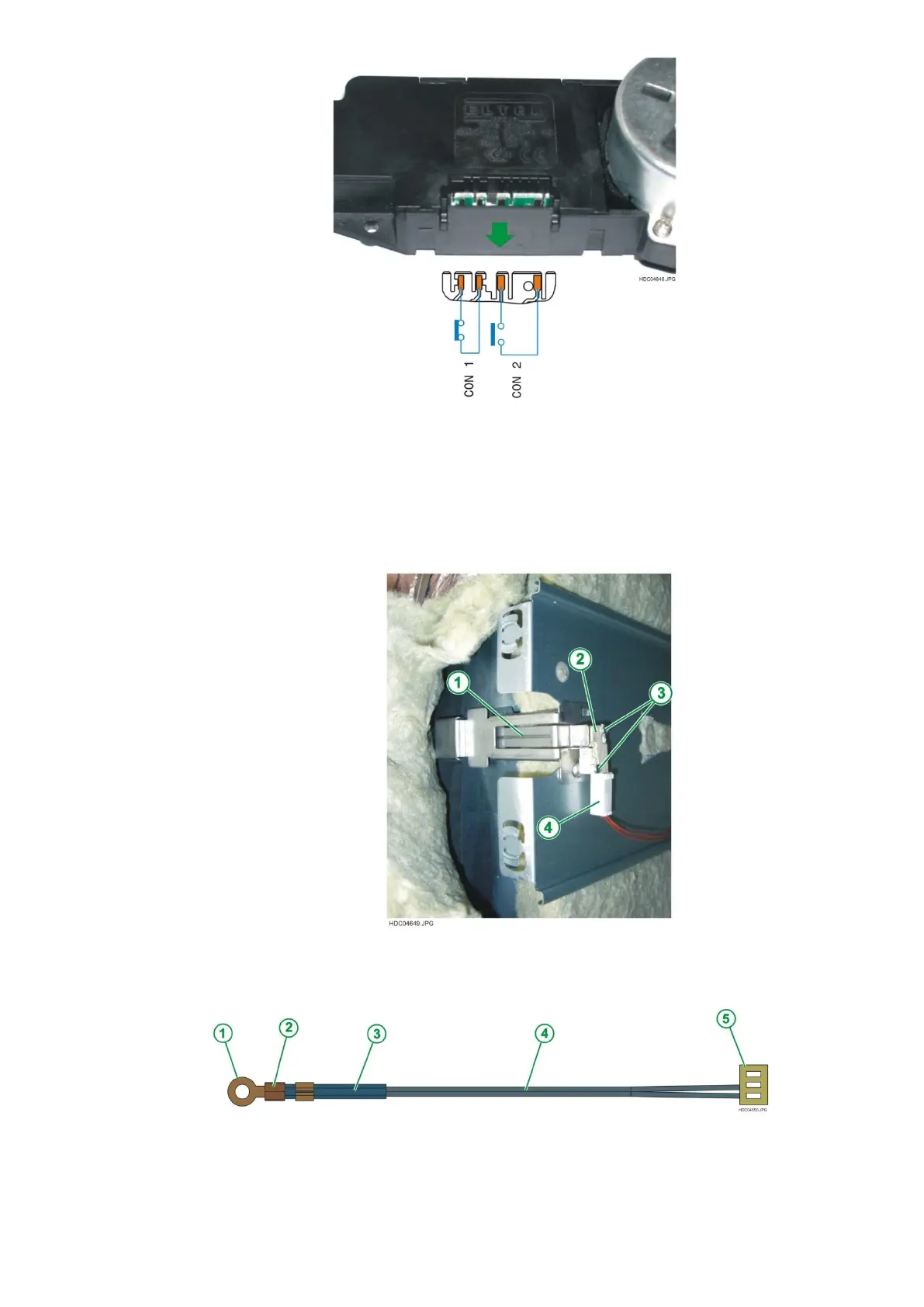

Fig. 27
CON 1 - MICROSWITCH PRESENCE DOOR
CON 2 - DOOR LOCK MICROSWITCH
11.3 - MICROSWITCH SUPPORT GRIDS FOR PYRO
To avoid damage to the grid supports, while the cleaning function by pyrolysis these supports must be
removed.
The presence of the grid supports is detected by the system through the micro of grid supports.
Fig. 28
1 - BRACKET MICRO DRIVE
2 - MICRO SUPPORT GRIDS
3 - SCREWS MICRO
4 - ELECTRICAL CONNECTION
11.4 - NTC SENSOR FOR STEAM OVEN
In steam ovens, the power board OVC3000 acknowledges the lack of water in the steam generator through a
NTC sensor that detects the temperature rise.
Fig. 29
1 - LUG FIXED TO THE STEAM GENERATOR
2 - NTC SENSOR
3 - INSULATION SHEATH
4 - WIRING CONNECTION
5 - CONNECTOR
