11 - MICRO SWITCHES AND SENSORS
11.1 - DOOR SWITCH FOR ILLUMINATION
The lighting of the oven when you open the oven door is made through the micro for illumination.

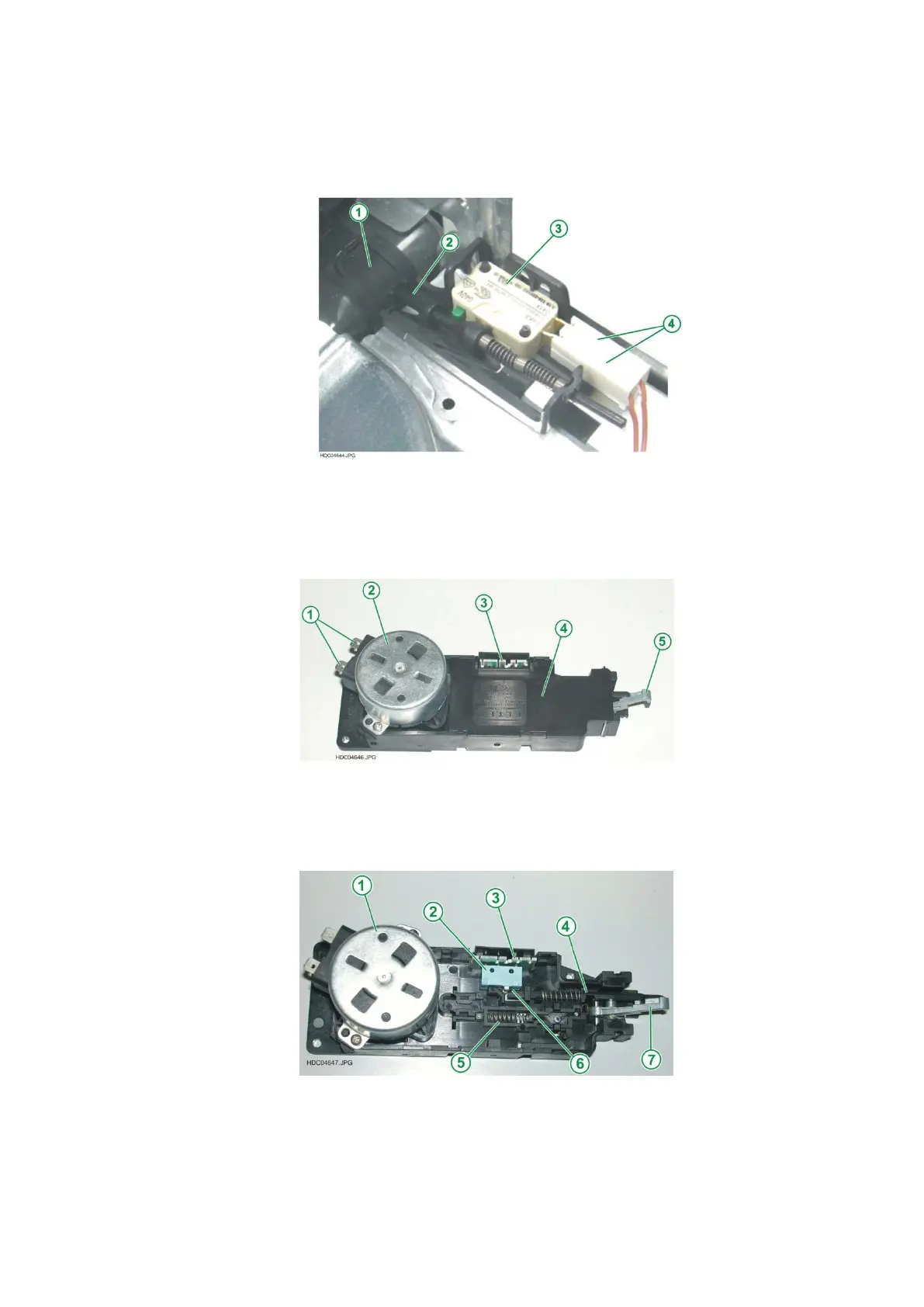

Fig. 24
1 - OVEN DOOR
2 - CONTROL PISTON OF THE MICRO
3 - MICRO LIGHTING CONTROL
4 - ELECTRICAL CONNECTION
11.2 - DOOR LOCK
Fig. 25
1 - MOTOR ELECTRICAL CONNECTION
2 - MOTOR
3 - CONNECTOR CONNECTION MICRO
4 - COVER DOOR LOCK
5 - METAL HOOK LOCK DOOR
Fig. 26
1 - MOTOR
2 - MICROSWITCH PRESENCE DOOR (TOP POSITION)
3 - CONNECTOR CONNECTION MICRO
4 - MECHANISM FOR CONTROL OF PRESENCE DOOR
5 - DOOR LOCK MECHANISM
6 - DOOR LOCK MICROSWITCH (LOWER POSITION)
7 - METAL HOOK LOCK DOOR
