Electrolux OVC3000 - Function of Relay and Triac

Technical Support - BSP 12/47 599 73 09-98 Rev. 02
5.3 - FUNCTION OF RELAY AND TRIAC

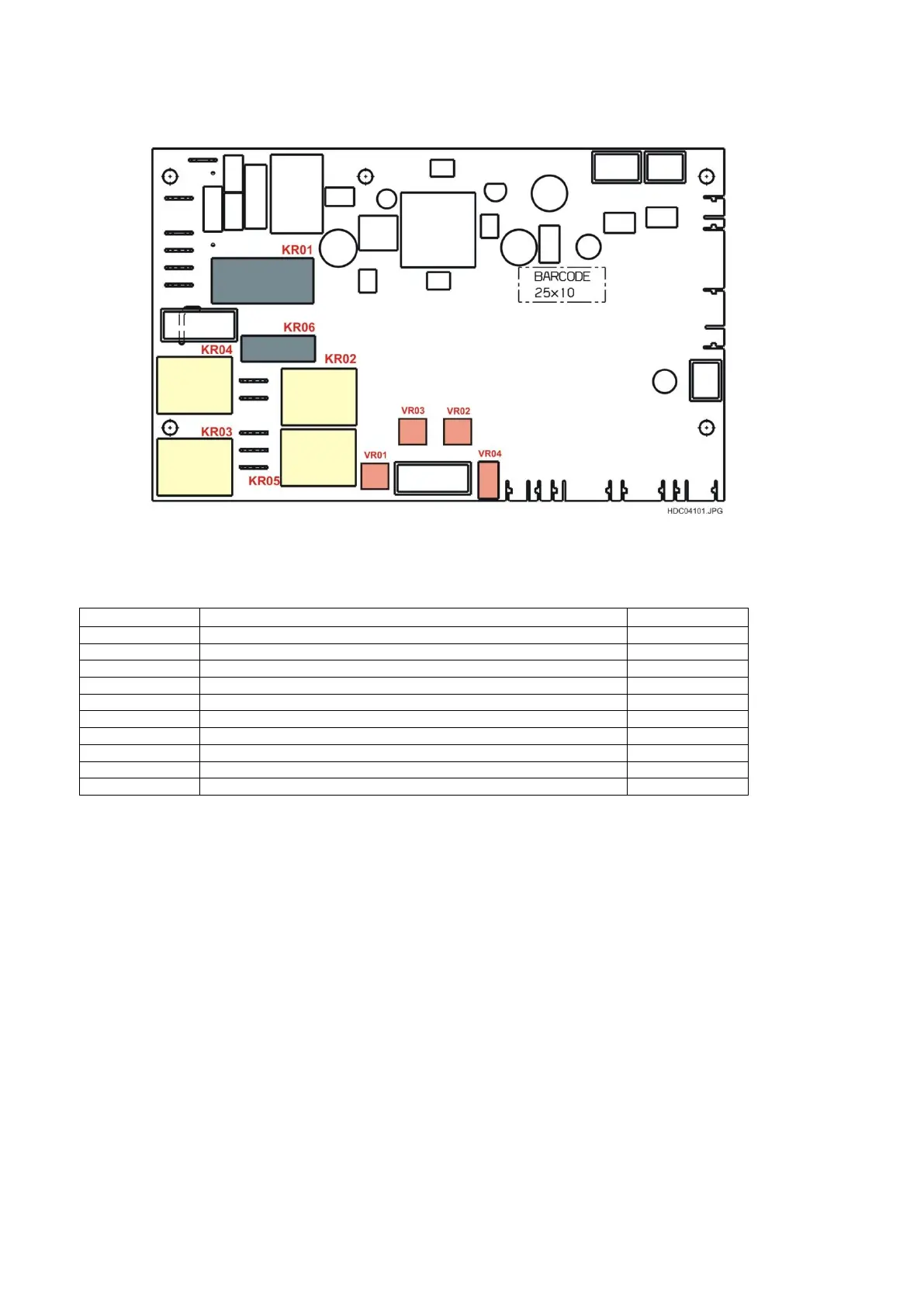

Fig. 6
REFERENCE
DESCRIPTION
COLOR
KR01
MAIN RELAY (IN XR03 & XR04, OUT XR05 & XR06)
BLACK
KR02
TOP / SMELL RELAY(XR02)
WHITE
KR03
GRILL RELAY (XR04)
WHITE
KR04
REAR RELAY (XR05)
WHITE
KR05
BOTTOM RELAY(XR10)
WHITE
KR06
DOOR LOCK RELAY (XR09 PIN 2)
BLACK
VR01
TRIAC (XR01 PIN 4) FOR COOLING FAN LOW SPEED
--
VR02
TRIAC (XR01 PIN 2) FOR HOT AIR FAN
--
VR03
TRIAC (XR01 PIN 3) FOR COOLING FAN HIGH SPEED
--
VR04
TRIAC (XR01 PIN 1) FOR OVEN LAMP
--
