12 - FOOD PROBE MODULE (FPM)
12.1 - FPM BASIC
The Food Probe Basic is used in the models where there are only the function meat probe.

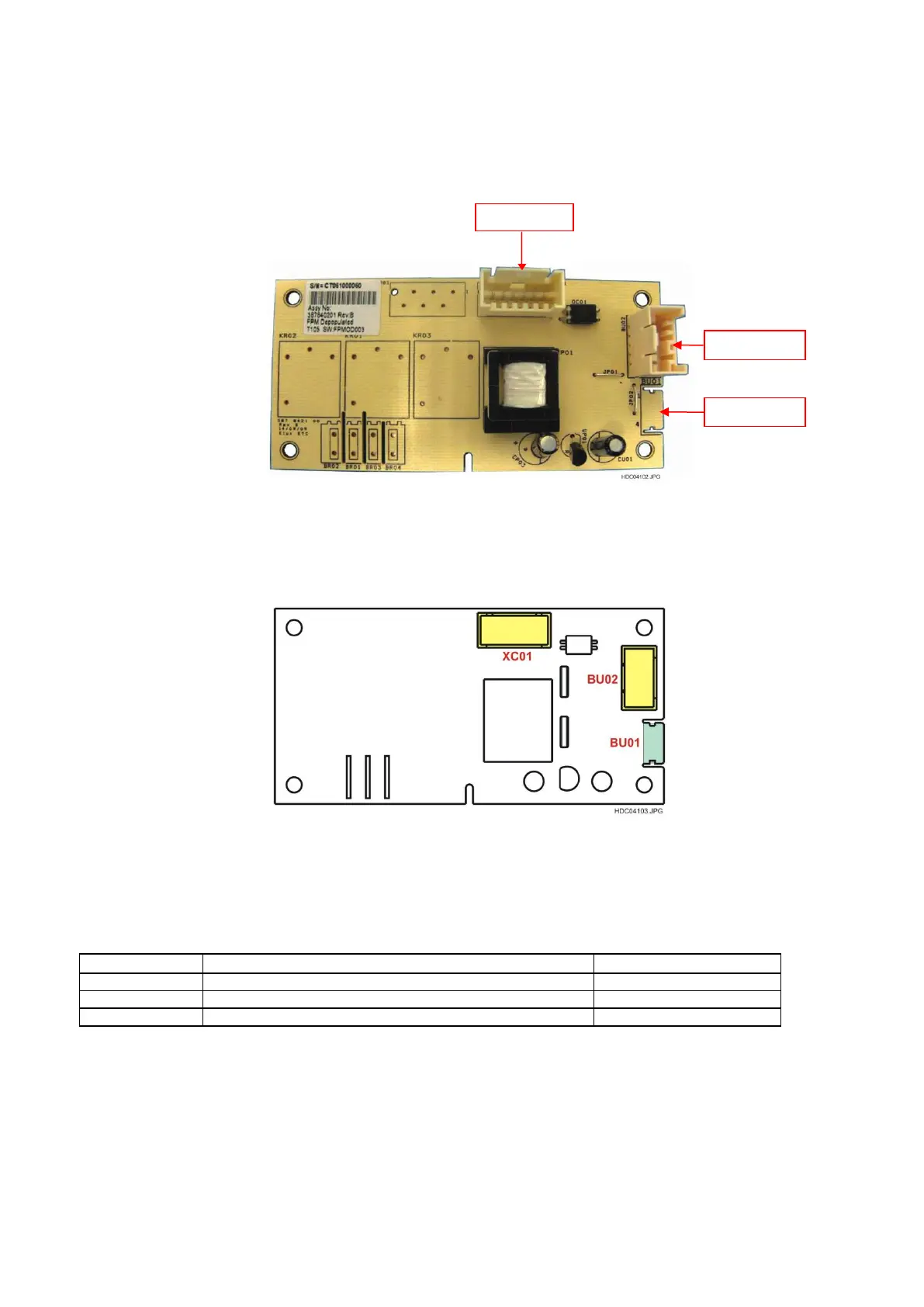

Fig. 30
12.1.1 - POSITIONS OF CONNECTORS
Fig. 31
REFERENCE
DESCRIPTION
CONNECTOR
BU01
FACTORY PROGRAMMING
ON PCB
BU02
ANALOG IMPUT (FOOD PROBE)
WHITE
XC01
OVC3000 POWER BOARD COMMUNICATION
WHITE
OVC3000
COMMUNICATION
ANALOG IMPUT
(FOOD PROBE)
FACTORY
PROGRAMMING
