Electrolux OVC3000 - Diagram Temperature; Resistance Sensor; Steam Actuator

Technical Support - BSP 28/47 599 73 09-98 Rev. 02

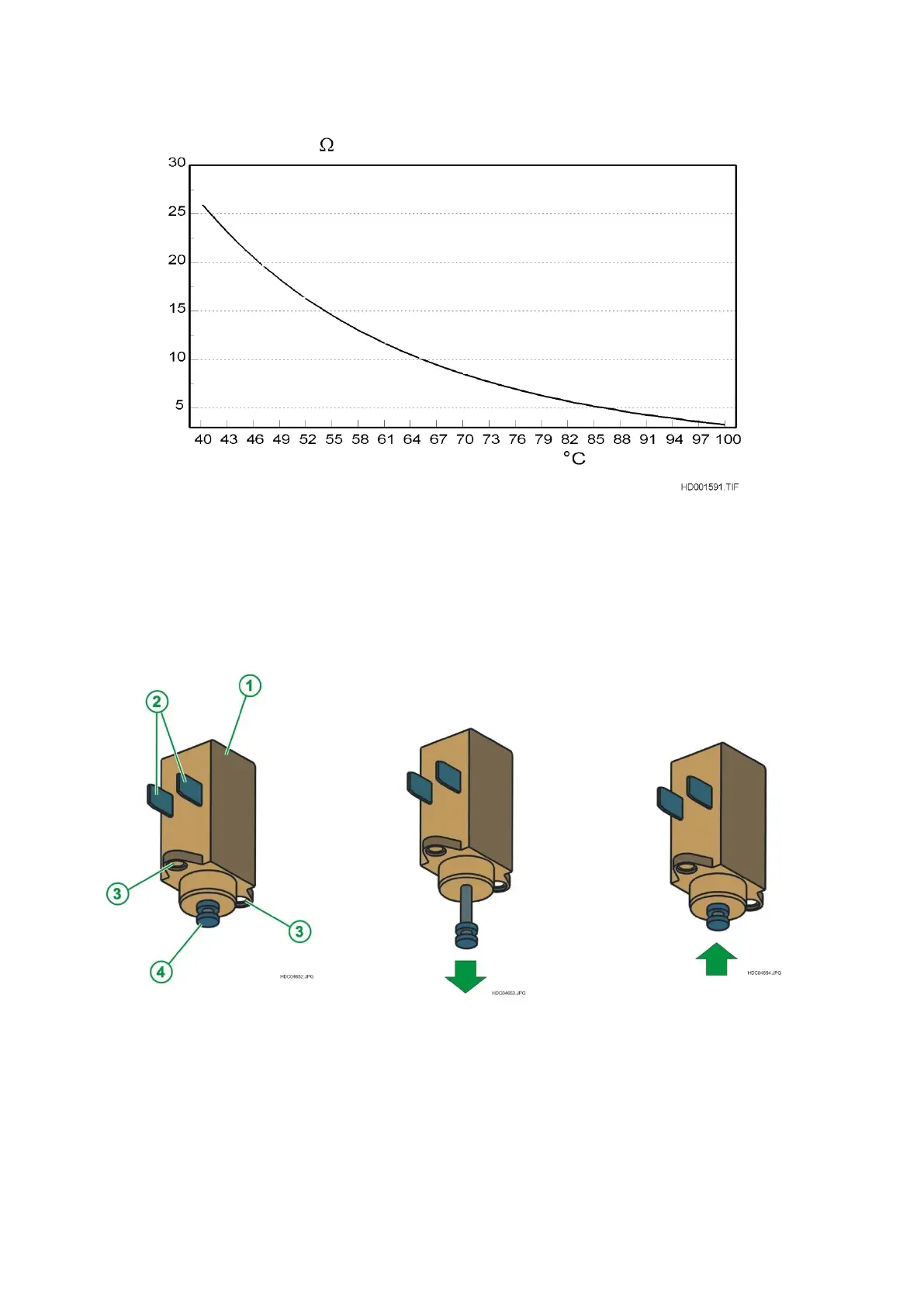

12.5.1 - DIAGRAM TEMPERATURE / RESISTANCE SENSOR
Fig. 40
12.6 - STEAM ACTUATOR
In steam ovens meat probe card also controls the thermal actuator for closing or opening of the steam
channel.
Fig. 41
1 - THERMAL ACTUATOR
2 - ELECTRICAL CONNECTION
3 - FIXING HOLES
4 - PIN FIXING CLOSURE
ACTUATOR
Fig. 42
Fig. 43
RESISTENZA
TEMPERATURA
TEMPERATURE
RESISTANCE
