Technical Support - BSP 16/47 599 73 09-98 Rev. 02
9 - HIGH POWER LOADS
The high power loads are controlled by relay of the power board.

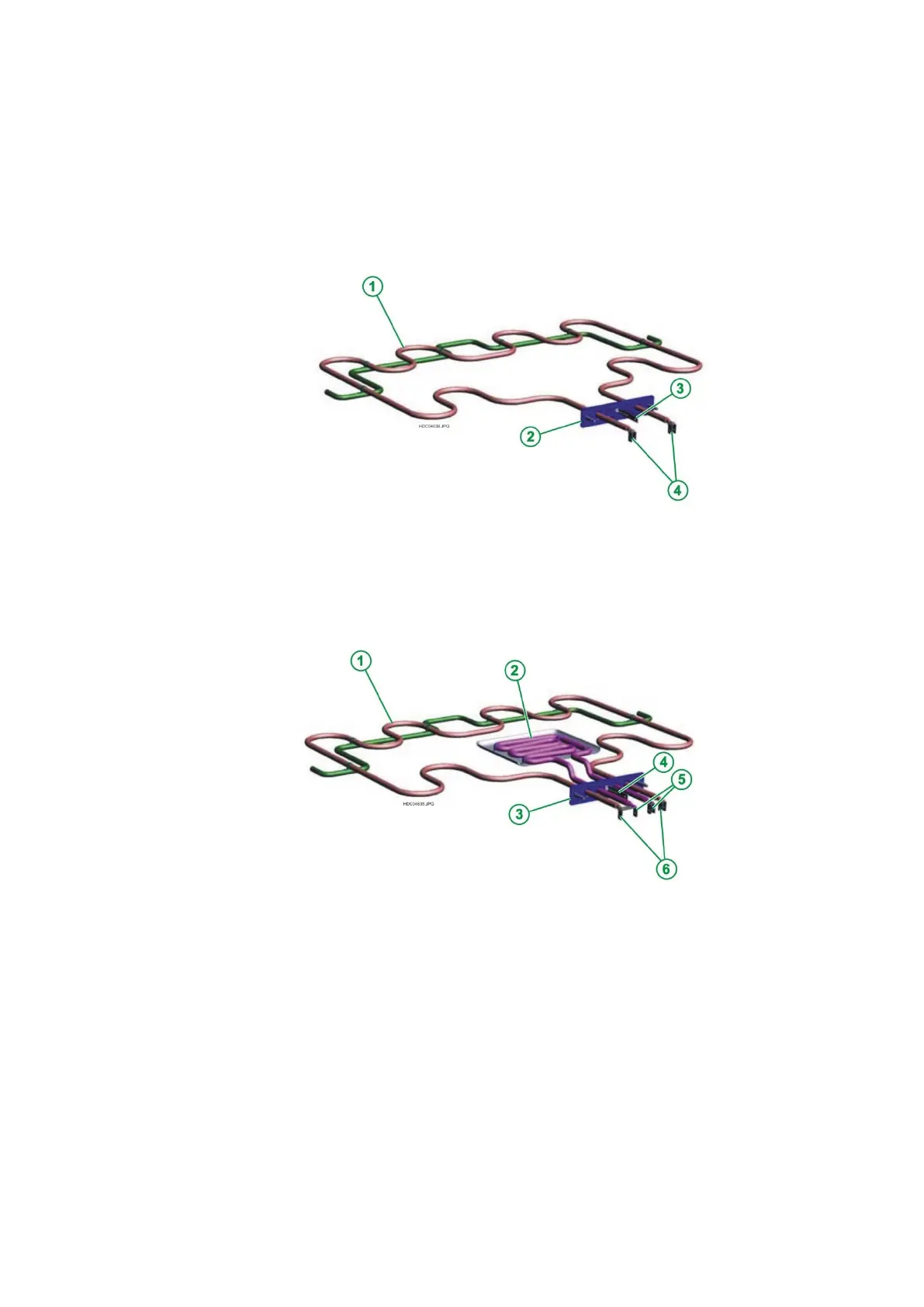

9.1 - TOP HEATER
9.1.1 - NORMAL TOP HEATER
Fig. 13
1 - TOP HEATER
2 - FIXING BRACKET
3 - EARTH ELECTRICAL CONNECTION
4 - TOP HEATER ELECTRICAL CONNECTION
9.1.2 - TOP HEATER WIT SMEL FILTER
Fig. 14
1 - TOP HEATER
2 - SMEL FILTER HEATER
3 - FIXING BRACKET
4 - EARTH ELECTRICAL CONNECTION
5 - FILTER HEATER ELECTRICAL CONNECTION
6 - TOP HEATER ELECTRICAL CONNECTION
