Electrolux OVC3000 - Fpm Full (2 Relay); Positions of Connectors

Technical Support - BSP 24/47 599 73 09-98 Rev. 02
12.2 - FPM EXPANDED (2 RELAY)
The Food Probe Full (2 relay) is used in models where it is necessary to operate two additional loads (e.g.
steam generator, steam actuator)

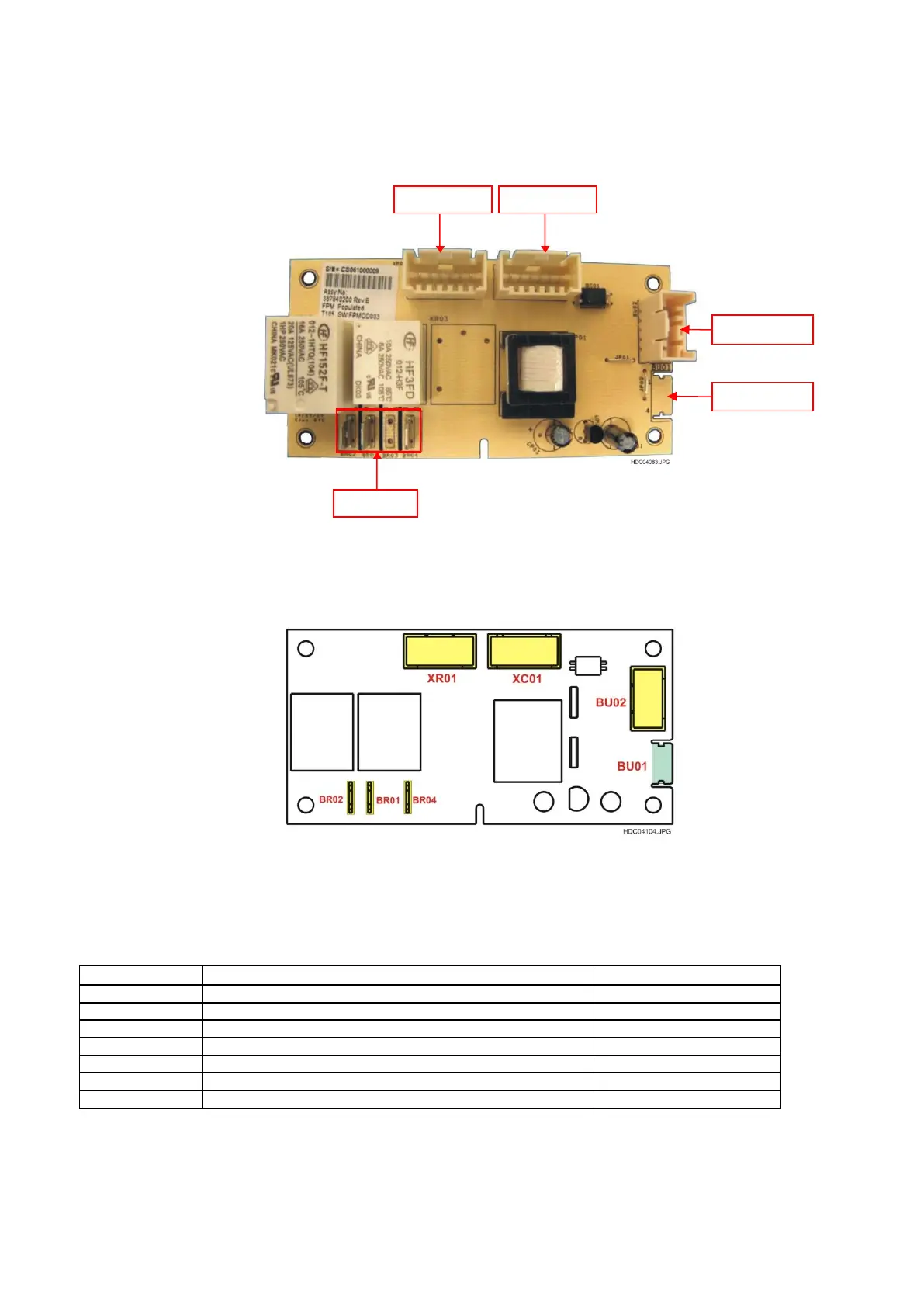

Fig. 32
12.2.1 - POSITIONS OF CONNECTORS
Fig. 33
REFERENCE
DESCRIPTION
CONNECTOR
BR01
CONTACT OF RELAY KR01
FASTON
BR02
CONTACT OF RELAY KR02
FASTON
BR04
COMMON CONTACT OF RELAY
FASTON
BU01
FACTORY PROGRAMMING
ON PCB
BU02
ANALOG IMPUT (FOOD PROBE)
WHITE
XC01
OVC3000 COMMUNICATION
WHITE
XR01
OVC3000 RELAY COMMUNICATION
WHITE
OVC3000 RELAY
COMMUNICATION
OVC3000
COMMUNICATION
ANALOG IMPUT
(FOOD PROBE)
FACTORY
PROGRAMMING
RELAY
CONNECTION
