Electrolux OVC3000 - Functions of Relay; Fpm Full (3 Relay)

Technical Support - BSP 25/47 599 73 09-98 Rev. 02

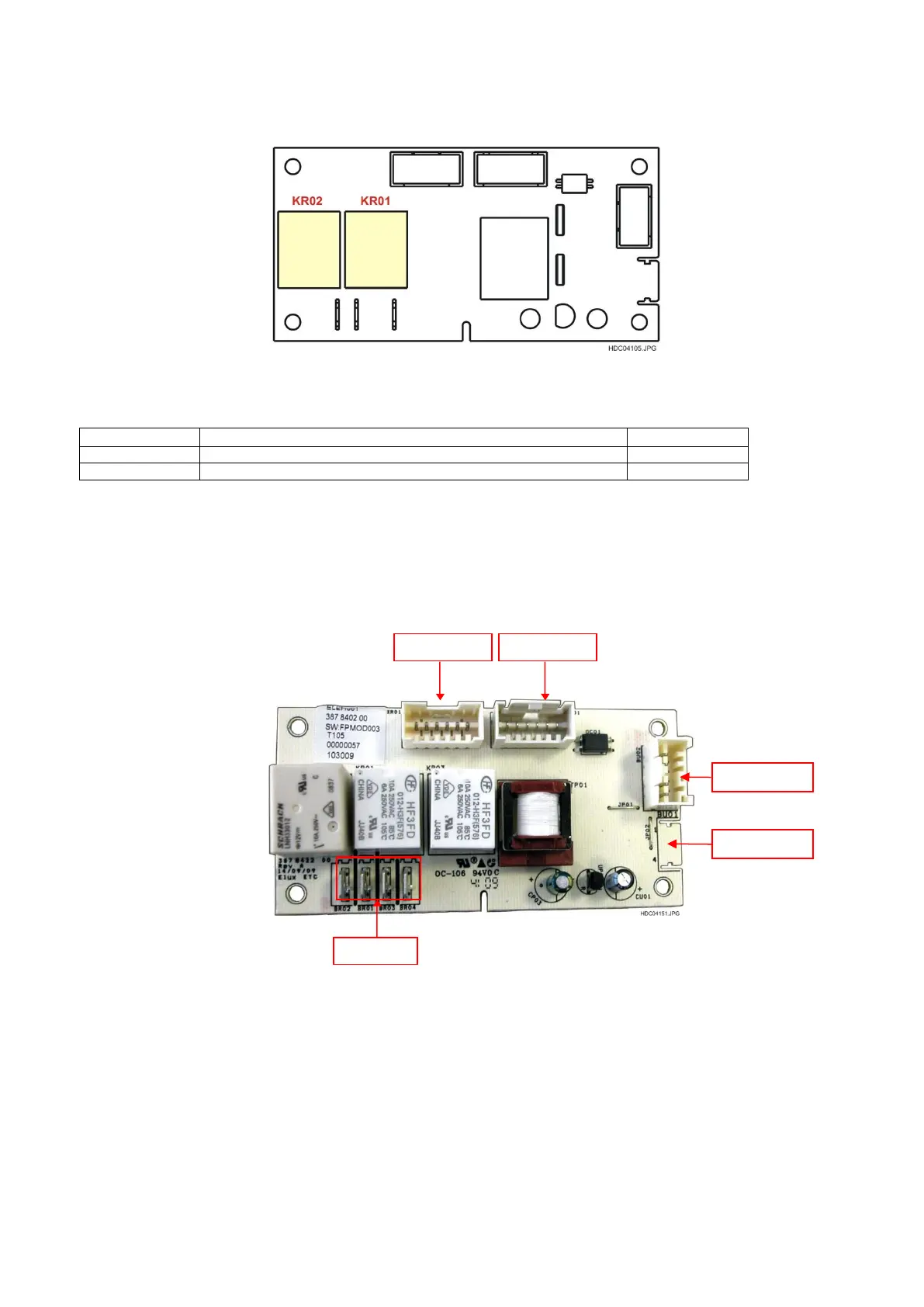

12.2.2 - FUNCTION OF RELAY
Fig. 34
REFERENCE
DESCRIPTION
COLOR
KR01
STEAM HEATER RELAY (*)
WHITE
KR02
STEAM ACTUATOR RELAY (*)
WHITE
(*) The function depends on the configuration of individual appliance (see specific wiring diagram).
12.3 - FPM FULL (3 RELAY)
The Food Probe Full (3 relay) is used in models where it is necessary to operate three additional loads (e.g.
steam generator, steam actuator etc.).
Fig. 35
OVC3000 RELAY
COMMUNICATION
OVC3000
COMMUNICATION
ANALOG IMPUT
(FOOD PROBE)
FACTORY
PROGRAMMING
RELAY
CONNECTION
