Service
Manual
35
23
23. Programme unit
438 9145-41/03
03.11
1 2 3
4 5 6
7 8 9
0
1 2 3
4 5 6
7 8 9
0
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .
Use the numeric keys to
enter the value.
If you make a mistake while
entering digits:
Press ERASE.
When you have finished:
Press .

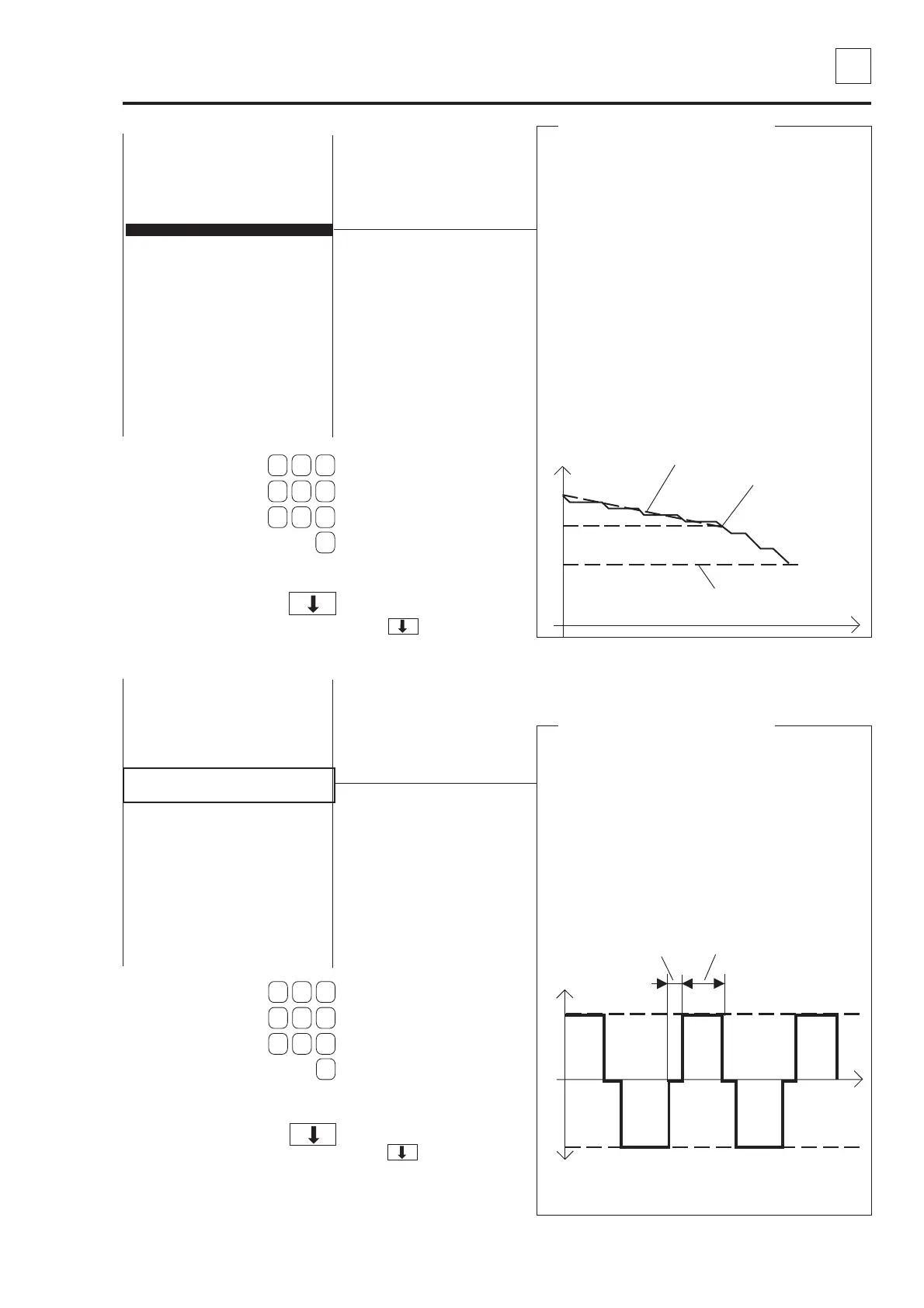

Default motor on-time / off-time
Here you determine the machine default times for
motor rotation, both ”on-time” and ”off-time”.
Under certain circumstances during a wash
program, e.g when the machine starts up again after
a halt in extraction due to imbalance, the machine
cannot find the ”on-time” and ”off-time” values for its
motor action in the current wash program. That is
when it needs to be able to find and use the default
”on-time” and ”off-time” values stored here.
The values shown are those recommended by the
supplier.
Drum action,
right-hand
rotation
Drum action, left-
hand rotation
Off-time
On-time
Time
Middle temperature cool-down
Here you determine the middle temperature for cool-
down.
When creating a new wash program you can, to
prevent creasing of the load, use the COOL-DOWN
module to achieve controlled cool-down of the water
in the drum. The cool-down sequence is divided into
two stages:
1 wash temperature to middle temperature
Throughout this stage the machine will monitor
the cool-down rate, to ensure it does not exceed
the cool-down rate set (4°C per minute when the
machine leaves the factory). If the rate set is
exceeded, no water will be added until the mean
value is acceptable again.
2 middle temperature to final temperature
The rate of cool-down is not monitored during this
stage. The valve opens and shuts as you have
programmed it to do.
Temp.
Time
Middle temperature
Final temperature
Temperature monitoring
LEVEL QUICK COOL-DOWN 175
LEVEL UNBALANCE 0
LEVEL LOW 135
LEVEL MEDIUM 150
LEVEL HIGH 175
MIDDLE TEMPERATURE COOL-DOWN70
°C
DEFAULT MOTOR ON TIME 0:12
DEFAULT MOTOR OFF TIME 0:03
FLUSH DELAY TIME 0:06
FLUSH ON TIME 0:10
BUZZER ON BUTTON Y
MAX FILLING TIME 10:00
MAX HEATING TIME 10:00
SHOW WEIGHT TIMEOUT 0:20
PC5 BLOCKING OF HEATING N
PC5 BLOCKING OF SPINNING Y
HEAT 2 AS STANDARD Y
SERVICE ALARM HOURS Y
LEVEL UNBALANCE 0
LEVEL LOW 135
LEVEL MEDIUM 150
LEVEL HIGH 175
MIDDLE TEMPERATURE COOL-DOWN 70 °C
DEFAULT MOTOR ON TIME 0:12
DEFAULT MOTOR OFF TIME 0:03
FLUSH DELAY TIME 0:06
FLUSH ON TIME 0:10
BUZZER ON BUTTON Y
MAX FILLING TIME 10:00
MAX HEATING TIME 10:00
SHOW WEIGHT TIMEOUT 0:20
PC5 BLOCKING OF HEATING N
PC5 BLOCKING OF SPINNING Y
HEAT 2 AS STANDARD Y
SERVICE ALARM HOURS Y
